1
Engine displacement
650
2
Year
2023
3
Trim
650 INDY XC 129
4
Parts Catalog

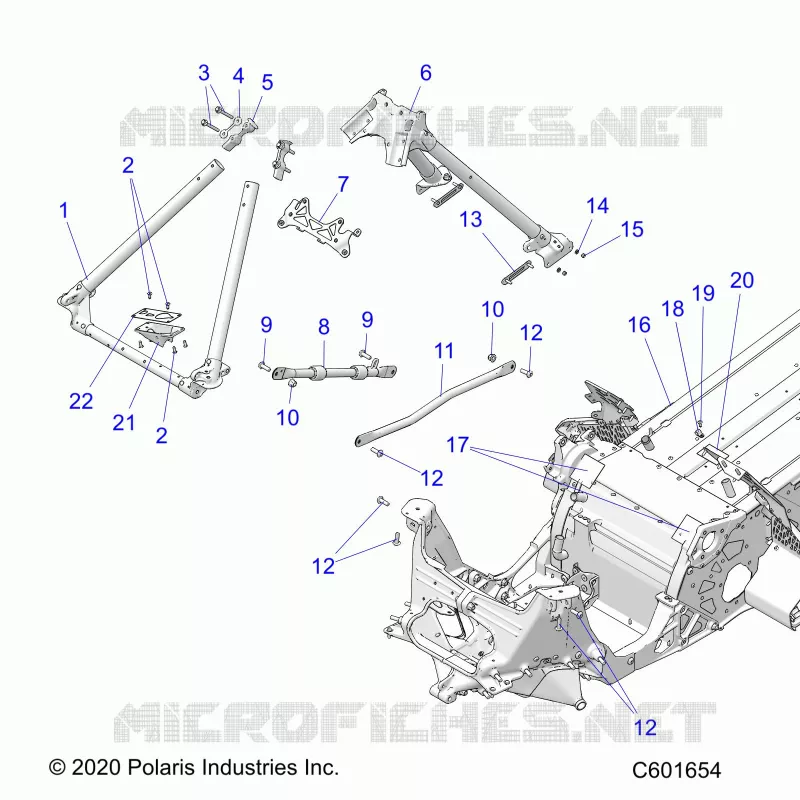

CHASSIS, CHASSIS ASM. AND OVER STRUCTURE
5
Parts Diagram
Parts Catalog
CHASSIS, BULKHEAD ASM.
by
CHASSIS, CLUTCH GUARD, FOOTRESTS, AND RUNNINGBOARDS
CHASSIS, CHASSIS ASM. AND OVER STRUCTURE
1
2
2
3
4
5
6
7
8
9
9
10
10
11
12
12
12
12
13
14
15
16
16
16
16
16
16
16
16
16
16
17
18
19
20
21
22
1
2
3
4
5
6
7
8
9
10
11
1
ASM. FRAME TUBULAR FRONT ALUM
1024164
$241,49 Unit Price incl. VAT
2
RIVET-4.8MM DIA-1.5-6.0 GRIP
7661973
$2,09 Unit Price incl. VAT
3
SCR-HXFL-M6X1X60 10.9 ZOD P30
7520723
$7,34 Unit Price incl. VAT
4
SHIM-TUBE CAST
5633083
$12,59 Unit Price incl. VAT
5
SPACER-TUBE CAST 27.00 DIA
5633122
$16,79 Unit Price incl. VAT
6
ASM-TUBE FRAME REAR
1025156
$1 238,99 Unit Price incl. VAT
7
ASM-REGULATOR MOUNT
1024479
$68,24 Unit Price incl. VAT
8
WELD-CROSS BRACE BLK
1026865
1027787
$120,74 Unit Price incl. VAT
9
SCR-M8X1.25X25 8.8TXTR ZOD P80
7518906
$6,29 Unit Price incl. VAT
10
NUT- M8X1.25 FLG NYLOC-OLIVE D
7547332
$7,34 Unit Price incl. VAT
11
TUBE-BRACE LH BLK
5337391329
$62,99 Unit Price incl. VAT
12
SCR-TXTH-M8X1.25X25 8.8 ZODP30
7519070
$11,54 Unit Price incl. VAT
13
ASM-STUD PLATE 5MM
1023672
$23,09 Unit Price incl. VAT
14
WSHR-5.3X10X1 ZB
7556071
$9,44 Unit Price incl. VAT
15
NUT-M5X.8 HX NYL-Y
7546601
$2,09 Unit Price incl. VAT
16
ASM-CHASSIS 650/850 129 NAT [COLOR OPTION][INCL. BULKHEAD]
1027464309
1028421-309
$3 249,74 Unit Price incl. VAT
16
ASM-CHASSIS 650/850 129 RED [COLOR OPTION][INCL. BULKHEAD]
1027464293
1028421-293
$3 249,74 Unit Price incl. VAT
16
ASM-CHASSIS 650/850 129 POLBLU [COLOR OPTION][INCL. BULKHEAD]
1027464751
1028421-751
$3 452,18 Unit Price incl. VAT
16
ASM-TUNNEL 650/850 129 BLK [COLOR OPTION][INCL. TUNNEL COOLER]
1026713067
$2 207,93 Unit Price incl. VAT
16
ASM-CHASSIS 650/850 129 BLK [COLOR OPTION][INCL. BULKHEAD]
1027464067
1028421-067
$3 249,74 Unit Price incl. VAT
16
ASM-TUNNEL 650/850 129 ORGBRST [COLOR OPTION][INCL. TUNNEL COOLER]
1026713647
Not Available
16
ASM-TUNNEL 650/850 129 POLBLUE [COLOR OPTION][INCL. TUNNEL COOLER]
1026713751
$2 302,64 Unit Price incl. VAT
16
ASM-TUNNEL 650/850 129 INDYRED [COLOR OPTION][INCL. TUNNEL COOLER]
1026713293
$3 984,74 Unit Price incl. VAT
16
ASM-CHASSIS 650/850 129 ORGBST [COLOR OPTION][INCL. BULKHEAD]
1027464647
Not Available
16
ASM-TUNNEL 650/850 129 NAT [COLOR OPTION][INCL. TUNNEL COOLER]
1026713309
$2 042,55 Unit Price incl. VAT
17
PAD 2.5#X2.5#
5814187
$8,39 Unit Price incl. VAT
18
CLAMP-CABLE
7080367
$4,19 Unit Price incl. VAT
19
RIVET 3/16(.063-.250)ST-ST-LF-B
7621472
$2,09 Unit Price incl. VAT
20
PAD
5814353
$18,89 Unit Price incl. VAT
21
MOUNT-LOAD CENTER
5454789
$18,89 Unit Price incl. VAT
22
BRKT-LOAD CENTER
5265340
$9,44 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
