Parts Catalog
CHAINCASE
5

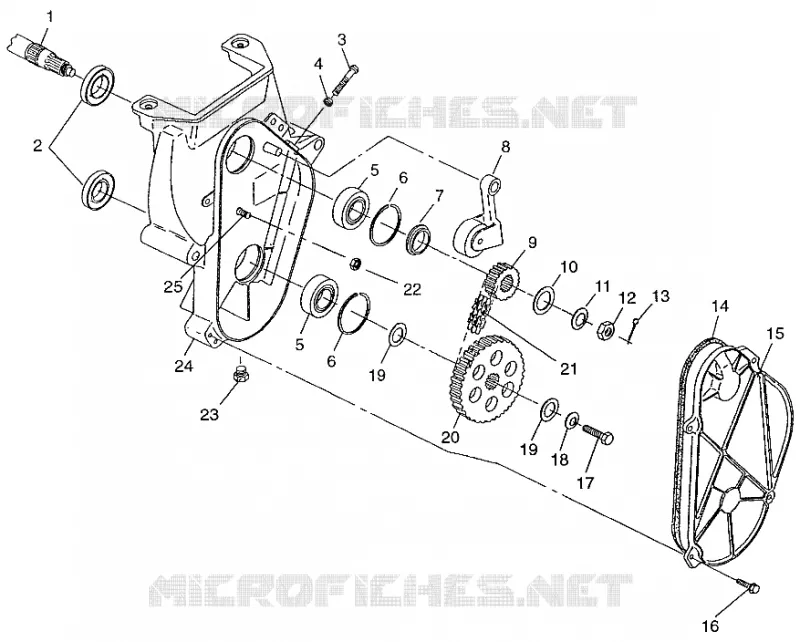

Parts Diagram
Parts Catalog
STEERING
by
REAR TORQUE ARM
CHAINCASE
1
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
2
SEAL OIL
3610030
$36,74 Unit Price incl. VAT
3
SCR-HH-3/8-16X2.75GR5 ZY3
7515511
$7,34 Unit Price incl. VAT
4
NUT-3/8-16-Y
7542404
$3,14 Unit Price incl. VAT
5
BEARING
3514308
3515909
$29,18 Unit Price incl. VAT
6
RING RETAINING
7718406
$11,54 Unit Price incl. VAT
7
SPACER SPROCKET
5010270
Not Available
8
BLOCK TIGHTENER [No Longer Available]
5630122
Not Available
8
TIGHTENER ASM GEARCASE Substituted by 1332213
1332096
Not Available
8
WHEEL C/C IDLER
5630123
Not Available
8
BEARING
3553002
$20,99 Unit Price incl. VAT
8
WASHER THRUST(10)
7558702
$3,14 Unit Price incl. VAT
8
PIN CHAIN TIGHTENER
7662210
Not Available
9
SPROCKET 16 T (Sport GT Only)
3221032
Not Available
10
WASHER
7555863
$4,19 Unit Price incl. VAT
11
WASHER SPRING
7571620
$13,64 Unit Price incl. VAT
12
NUT
7542811
7547202
$10,49 Unit Price incl. VAT
13
PIN COTTER
7661401
$1,56 Unit Price incl. VAT
14
GASKET-CHAINCASE
5410277
Not Available
15
COVER CHAINCASE Substituted by 5630968
5630413
Not Available
16
SCR-1/4-20X1 1/4-TRIRD HX WH-Y
7512242
$4,19 Unit Price incl. VAT
17
SCREW(10)
7515350
7517979
$7,34 Unit Price incl. VAT
18
WASHER-SPRING CON 5/16X.090 Z
7571618
$11,54 Unit Price incl. VAT
19
WSHR-1.00X1.250X.120-Y
7555864
$4,19 Unit Price incl. VAT
20
SPROCKET 39 T
3222034
Not Available
21
CHAIN 64 PITCH
3224023
Not Available
22
NUT-HEX-3/8-16 A ZTB NYL
7542451
$2,09 Unit Price incl. VAT
23
PLUG
7052115
$10,49 Unit Price incl. VAT
24
CHAINCASE-W/RATCHET MNT
5131568
Not Available
25
BOLT(10)
7515477
$52,49 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
