1
Engine displacement
0
2
Year
1997
3
Trim
LITE DELUXE - 0973431
4
Parts Catalog

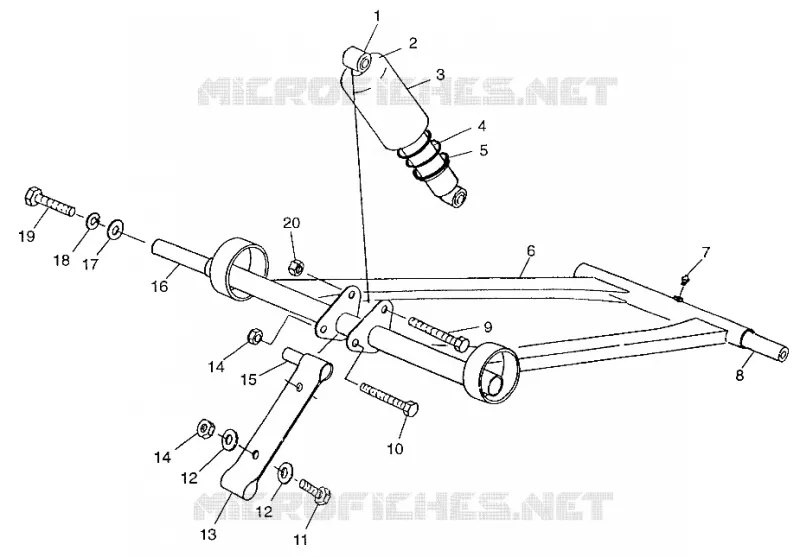

FRONT TORQUE ARM
5
Parts Diagram
Parts Catalog
RAIL MOUNTING (SUSPENSION)
by
EXHAUST SYSTEM
FRONT TORQUE ARM
1
SHOCK FR.TRACK Substituted by 7041744
7041516
Not Available
2
RETAINER SPRING SLOTTED CAST
5630580
5020618
$36,74 Unit Price incl. VAT
3
SHIELD SPRING
5430671
$47,24 Unit Price incl. VAT
4
SPRING COMPRESSION
7041570067
Not Available
5
RETAINER SPRING Substituted by 5245067
5241276067
5245067
$41,99 Unit Price incl. VAT
6
ARM FRT.TORQ XL BLK Substituted by 1541281-067
1541106067
Not Available
7
FITTING LUBRICATION
7080433
$2,09 Unit Price incl. VAT
8
SHAFT
5333511
Not Available
9
BOLT(10) Substituted by 7515492
7512410
7515540
$9,44 Unit Price incl. VAT
10
SCR-HH-5/16-18X1.75 GR5 ZY3
7512329
$7,34 Unit Price incl. VAT
11
SCR-5/16-18X1-HX/FLG-GR5-Y
7515307
$7,34 Unit Price incl. VAT
12
WASHER-.328X1.25X16GA FL-Y
7555716
$3,14 Unit Price incl. VAT
13
STRAP LIMITER (XL)
5811281
Not Available
14
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
15
BUSHING
5333522
$16,79 Unit Price incl. VAT
16
SHAFT
5020908
$104,99 Unit Price incl. VAT
17
WASHER FLAT
7555893
$1,56 Unit Price incl. VAT
18
WASHER SPRINGLOCK(10) Substituted by 7552603
7553001
7552603
$1,56 Unit Price incl. VAT
19
SCREW (10)
7517247
$6,29 Unit Price incl. VAT
20
NUT FLEXLOC
7542411
$6,29 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
