1
Engine displacement
440
2
Year
1993
3
Trim
440 L/C - 0930760
4
Parts Catalog

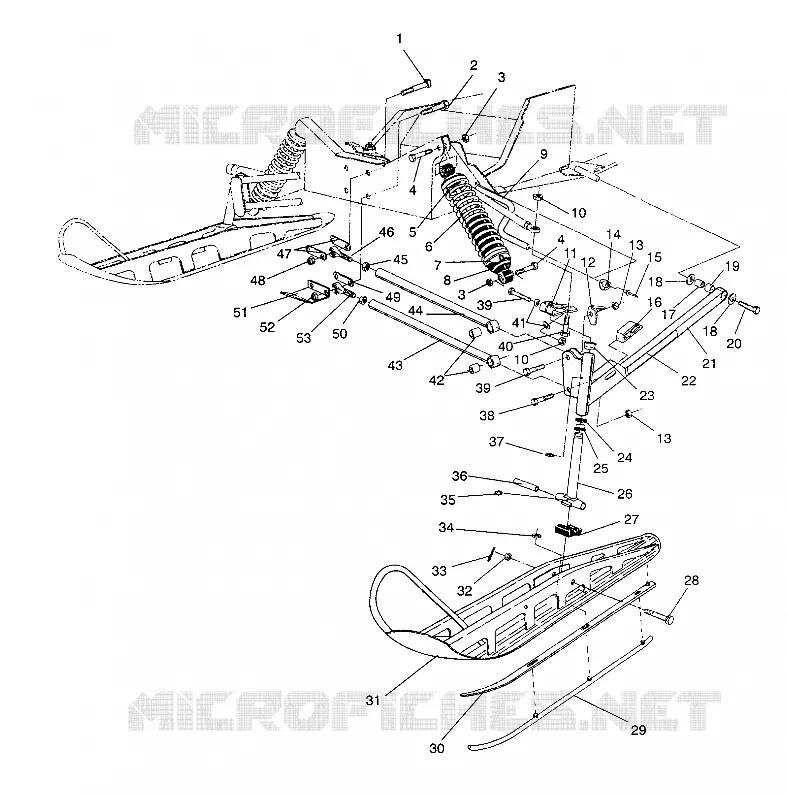

FRONT SUSPENSION AND SKI 440 / 0930760 AND 440 SKS / 0930560 (4922932293011A)
5
Parts Diagram
Parts Catalog
MASTER CYLINDER 440 / 0930760 AND 440 SKS / 0930560 (4922932293010A)
by
COOLING SYSTEM 440 / 0930760 AND 440 SKS / 0930560 (4922932293013A)
FRONT SUSPENSION AND SKI 440 / 0930760 AND 440 SKS / 0930560 (4922932293011A)
1
1
2
2
3
3
3
3
4
4
4
4
5
5
6
6
7
7
8
8
9
9
9
9
9
9
9
9
10
10
10
10
11
11
12
12
12
12
12
12
12
12
13
13
13
13
14
14
15
15
16
16
17
17
18
18
18
18
19
19
20
20
21
21
21
21
21
21
21
21
22
22
22
22
22
22
22
22
23
23
24
24
25
25
26
26
27
27
28
28
29
29
29
29
29
29
29
29
30
30
31
31
32
32
33
33
34
34
35
35
36
36
37
37
38
38
39
39
39
39
40
40
41
41
42
42
43
43
43
43
43
43
43
43
44
44
44
44
44
44
44
44
45
45
46
46
47
47
48
48
49
49
50
50
51
51
52
52
53
53
1
1
2
2
3
3
3
3
4
4
4
4
5
5
6
6
7
7
8
8
9
9
9
9
9
9
9
9
10
10
10
10
11
11
12
12
12
12
12
12
12
12
13
13
13
13
14
14
15
15
16
16
17
17
18
18
18
18
19
19
20
20
21
21
21
21
21
21
21
21
22
22
22
22
22
22
22
22
23
23
24
24
25
25
26
26
27
27
28
28
29
29
29
29
29
29
29
29
30
30
31
31
32
32
33
33
34
34
35
35
36
36
37
37
38
38
39
39
39
39
40
40
41
41
42
42
43
43
43
43
43
43
43
43
44
44
44
44
44
44
44
44
45
45
46
46
47
47
48
48
49
49
50
50
51
51
52
52
53
53
1
1
2
2
3
3
3
3
4
4
4
4
5
5
6
6
7
7
8
8
9
9
9
9
9
9
9
9
10
10
10
10
11
11
12
12
12
12
12
12
12
12
13
13
13
13
14
14
15
15
16
16
17
17
18
18
18
18
19
19
20
20
21
21
21
21
21
21
21
21
22
22
22
22
22
22
22
22
23
23
24
24
25
25
26
26
27
27
28
28
29
29
29
29
29
29
29
29
30
30
31
31
32
32
33
33
34
34
35
35
36
36
37
37
38
38
39
39
39
39
40
40
41
41
42
42
43
43
43
43
43
43
43
43
44
44
44
44
44
44
44
44
45
45
46
46
47
47
48
48
49
49
50
50
51
51
52
52
53
53
1
1
2
2
3
3
3
3
4
4
4
4
5
5
6
6
7
7
8
8
9
9
9
9
9
9
9
9
10
10
10
10
11
11
12
12
12
12
12
12
12
12
13
13
13
13
14
14
15
15
16
16
17
17
18
18
18
18
19
19
20
20
21
21
21
21
21
21
21
21
22
22
22
22
22
22
22
22
23
23
24
24
25
25
26
26
27
27
28
28
29
29
29
29
29
29
29
29
30
30
31
31
32
32
33
33
34
34
35
35
36
36
37
37
38
38
39
39
39
39
40
40
41
41
42
42
43
43
43
43
43
43
43
43
44
44
44
44
44
44
44
44
45
45
46
46
47
47
48
48
49
49
50
50
51
51
52
52
53
53
1
BOLT(10)
7512551
Not Available
2
BOLT(10)
7512656
$11,01 Unit Price incl. VAT
3
NUT NYLOC(10)
7542453
7542439
$2,09 Unit Price incl. VAT
4
BOLT(10) Substituted by 7515415
7515515
$2,09 Unit Price incl. VAT
5
RETAINER SPRING COIL
5220225
$19,94 Unit Price incl. VAT
6
SPRING COMPRESSION BLACK
7041261067
$246,74 Unit Price incl. VAT
7
RETAINER-SPRING
5210953
$11,54 Unit Price incl. VAT
8
SHOCK FR.SUSP. (400 600)
7041144
Not Available
9
BAR SWAY BLACK
5224237067
Not Available
9
BAR SWAY 9/16 BLK.
5224476067
Not Available
10
NUT FLEXLOC B(10) Substituted by 7542403
7542456
Not Available
11
ARM STEERING
5220326067
Not Available
12
STOP STRNG RH BLK.
5220238067
Not Available
12
STOP STRNG LH BLK.
5220237067
Not Available
13
NUT FLEXLOC(10) Substituted by 7542411
7542452
7542411
$6,29 Unit Price incl. VAT
14
BUSHING-SWAYBAR
5410383
Not Available
15
RIVET
7621433
$2,09 Unit Price incl. VAT
16
SLIDE-SWAYBAR
5410384
Not Available
17
TUBE TRAILING ARM
5010187
Not Available
18
WASHER
7555721
$2,09 Unit Price incl. VAT
19
PIVOT-TRAILING ARM
5410382
Not Available
20
BOLT(10)
7512557
$11,54 Unit Price incl. VAT
21
ARM TRLG LH BLK. Substituted by 1822427
1822053067
Not Available
21
ARM TRLG RH BLK. Substituted by 1822428
1822052067
Not Available
22
DECAL RH IFS RED [No Longer Available]
7072951
Not Available
22
DECAL LH IFS RED [No Longer Available]
7072950
Not Available
23
BUSHING FLANGE
3573909
$4,19 Unit Price incl. VAT
24
BUSHING
7556509
$3,14 Unit Price incl. VAT
25
BUSHING FLANGED
3574208
$6,29 Unit Price incl. VAT
26
SPINDLE GREASABLE Substituted by 6230073-067 (XLT SKS)
5130919067
Not Available
27
STOP-RUBBER
5521094
Not Available
28
BOLT(10)
7515462
$15,74 Unit Price incl. VAT
29
SKAG Substituted by 1820318-067 (440)
1820318
1820318-067
$68,24 Unit Price incl. VAT
29
SKAG PR. CARBIDE
2870693
$99,74 Unit Price incl. VAT
30
PLATE SKAG Substituted by 1011829-067 (440 only)
1011829
$74,54 Unit Price incl. VAT
31
SKI WELD BLK
1820332067
Not Available
32
NUT CASTLE(10) Substituted by 7542438
7542457
7542438
$3,14 Unit Price incl. VAT
33
PIN COTTER(10) Substituted by 7661205
7661209
7661205
$1,56 Unit Price incl. VAT
34
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
35
FITTING LUB W/BALL
7080306
$5,76 Unit Price incl. VAT
36
BUSHING [BEA]
5010158
$27,29 Unit Price incl. VAT
37
FITTING LUBRICATION
7080433
$2,09 Unit Price incl. VAT
38
BOLT(10) Substituted by 7515540
7515492
7515540
$9,44 Unit Price incl. VAT
39
BOLT(10) Substituted by 7517583
7515491
7515433
$3,14 Unit Price incl. VAT
40
BOLT Substituted by 7512404
7515490
$7,34 Unit Price incl. VAT
41
WASHER(10) Substituted by 7555832
7555851
7555832
$4,19 Unit Price incl. VAT
42
BUSHING
5010127
$12,59 Unit Price incl. VAT
43
ROD RADIUS (BLK.)LOW (500 Special Only)
1822055067
Not Available
43
ROD RADIUS BLACK
1822045067
Not Available
44
ROD RADIUS BLACK
1822037067
Not Available
44
ROD RADIUS (BLK.) (500 Special Only)
1822054067
Not Available
45
NUT JAM(10)
7542520
$4,19 Unit Price incl. VAT
46
ROD END RH Substituted by 7061010
7060155
Not Available
47
STRAP-SPACER TOP
5211344
$13,64 Unit Price incl. VAT
48
NUT LOCK (10)
7542503
$18,89 Unit Price incl. VAT
49
STRAP-SPACER BOTTOM
5211345
$19,94 Unit Price incl. VAT
50
NUT-1/2-20 HX JM-Y
7542711
$4,19 Unit Price incl. VAT
51
BRACE PAN
5223997067
Not Available
52
NUT FLEX (10)
7542703
Not Available
53
ROD END RH Substituted by 7061011
7060156
7061071
$99,74 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.

Other Parts for 440 L/C - 0930760

NOSEPAN 440 / 0930760 and 440 SKS / 0930560 (4922932293003A)

NOSEPAN 440 / 0930760 and 440 SKS / 0930560 (4922932293003A)

for 440 L/C - 0930760 from 1993

HOOD ASSEMBLY 440 / 0930760 AND 440 SKS / 0930560 (4922932293005A)

HOOD ASSEMBLY 440 / 0930760 AND 440 SKS / 0930560 (4922932293005A)

for 440 L/C - 0930760 from 1993

HOOD

HOOD

for 440 L/C - 0930760 from 1993

HOOD

HOOD

for 440 L/C - 0930760 from 1993

STEERING

STEERING

for 440 L/C - 0930760 from 1993

STEERING ASSEMBLY 440 / 0930760 AND 440 SKS / 0930560 (4922932293015A)

STEERING ASSEMBLY 440 / 0930760 AND 440 SKS / 0930560 (4922932293015A)

for 440 L/C - 0930760 from 1993

BRAKE 440 / 0930760 AND 440 SKS / 0930560 (4922932293016A)

BRAKE 440 / 0930760 AND 440 SKS / 0930560 (4922932293016A)

for 440 L/C - 0930760 from 1993

CHAINCASE ASSEMBLY 440 / 0930760 AND 440 SKS / 0930560 (4922932293017A)

CHAINCASE ASSEMBLY 440 / 0930760 AND 440 SKS / 0930560 (4922932293017A)

for 440 L/C - 0930760 from 1993

DRIVE TRAIN ASSEMBLY 440 / 0930760 AND 440 SKS / 0930560 (4922932293018A)

DRIVE TRAIN ASSEMBLY 440 / 0930760 AND 440 SKS / 0930560 (4922932293018A)

for 440 L/C - 0930760 from 1993

DRIVE CLUTCH ASSEMBLY 440 / 0930760 AND 440 SKS / 0930560 (4922932293023A)

DRIVE CLUTCH ASSEMBLY 440 / 0930760 AND 440 SKS / 0930560 (4922932293023A)

for 440 L/C - 0930760 from 1993

DRIVEN CLUTCH ASSEMBLY 440 / 0930760 AND 440 SKS / 0930560 (4922932293024A)

DRIVEN CLUTCH ASSEMBLY 440 / 0930760 AND 440 SKS / 0930560 (4922932293024A)

for 440 L/C - 0930760 from 1993

ENGINE MOUNTING 440 / 0930760 AND 440 SKS / 0930560 (4922932293025A)

ENGINE MOUNTING 440 / 0930760 AND 440 SKS / 0930560 (4922932293025A)

for 440 L/C - 0930760 from 1993

EXHAUST SYSTEM 440 / 0930760 AND 440 SKS / 0930560 (4922932293026A)

EXHAUST SYSTEM 440 / 0930760 AND 440 SKS / 0930560 (4922932293026A)

for 440 L/C - 0930760 from 1993

PISTON CRANKSHAFT 440 / 0930760 AND 440 SKS / 0930560 (4922932293031A)

PISTON CRANKSHAFT 440 / 0930760 AND 440 SKS / 0930560 (4922932293031A)

for 440 L/C - 0930760 from 1993

CARBURETOR 440 / 0930760 AND 440 SKS / 0930560 (4922932293032A)

CARBURETOR 440 / 0930760 AND 440 SKS / 0930560 (4922932293032A)

for 440 L/C - 0930760 from 1993

FUEL PUMP 440 / 0930760 AND 440 SKS / 0930560 (4922932293033A)

FUEL PUMP 440 / 0930760 AND 440 SKS / 0930560 (4922932293033A)

for 440 L/C - 0930760 from 1993

OIL PUMP ASSEMBLY 440 / 0930760 AND 440 SKS / 0930560 (4922932293034A)

OIL PUMP ASSEMBLY 440 / 0930760 AND 440 SKS / 0930560 (4922932293034A)

for 440 L/C - 0930760 from 1993

TUNNEL ASSEMBLY 440 / 0930760 AND 440 SKS / 0930560 (4922932293001A)

TUNNEL ASSEMBLY 440 / 0930760 AND 440 SKS / 0930560 (4922932293001A)

for 440 L/C - 0930760 from 1993

SEAT GAS TANK ASSEMBLY 440 / 0930760 AND 440 SKS / 0930560 (4922932293002A)

SEAT GAS TANK ASSEMBLY 440 / 0930760 AND 440 SKS / 0930560 (4922932293002A)

for 440 L/C - 0930760 from 1993

CONSOLE 440 / 0930760 AND 440 SKS / 0930560 (4922932293009A)

CONSOLE 440 / 0930760 AND 440 SKS / 0930560 (4922932293009A)

for 440 L/C - 0930760 from 1993

MASTER CYLINDER 440 / 0930760 AND 440 SKS / 0930560 (4922932293010A)

MASTER CYLINDER 440 / 0930760 AND 440 SKS / 0930560 (4922932293010A)

for 440 L/C - 0930760 from 1993

FRONT SUSPENSION AND SKI 440 / 0930760 AND 440 SKS / 0930560 (4922932293011A)

FRONT SUSPENSION AND SKI 440 / 0930760 AND 440 SKS / 0930560 (4922932293011A)

for 440 L/C - 0930760 from 1993

COOLING SYSTEM 440 / 0930760 AND 440 SKS / 0930560 (4922932293013A)

COOLING SYSTEM 440 / 0930760 AND 440 SKS / 0930560 (4922932293013A)

for 440 L/C - 0930760 from 1993

SUSPENSION ASSEMBLY 440 / 0930760 (4922932293019A)

SUSPENSION ASSEMBLY 440 / 0930760 (4922932293019A)

for 440 L/C - 0930760 from 1993

SUSPENSION ASSEMBLY 440 SKS / 0930560 (4922932293020A)

SUSPENSION ASSEMBLY 440 SKS / 0930560 (4922932293020A)

for 440 L/C - 0930760 from 1993

FRONT TORQUE ARM 440 / 0930760 AND 440 SKS / 0930560 (4922932293021A)

FRONT TORQUE ARM 440 / 0930760 AND 440 SKS / 0930560 (4922932293021A)

for 440 L/C - 0930760 from 1993

REAR TORQUE ARM 440 / 0930760 AND 440 SKS / 0930560 (4922932293022A)

REAR TORQUE ARM 440 / 0930760 AND 440 SKS / 0930560 (4922932293022A)

for 440 L/C - 0930760 from 1993

OIL TANK AIR BOX 440 / 0930760 AND 440 SKS / 0930560 (4922932293027A)

OIL TANK AIR BOX 440 / 0930760 AND 440 SKS / 0930560 (4922932293027A)

for 440 L/C - 0930760 from 1993

CRANKCASE ASSEMBLY 440 / 0930760 AND 440 SKS / 0930560 (4922932293028A)

CRANKCASE ASSEMBLY 440 / 0930760 AND 440 SKS / 0930560 (4922932293028A)

for 440 L/C - 0930760 from 1993

CYLINDER 440 / 0930760 AND 440 SKS / 0930560 (4922932293029A)

CYLINDER 440 / 0930760 AND 440 SKS / 0930560 (4922932293029A)

for 440 L/C - 0930760 from 1993

WATER PUMP 440 / 0930760 AND 440 SKS / 0930560 (4922932293030A)

WATER PUMP 440 / 0930760 AND 440 SKS / 0930560 (4922932293030A)

for 440 L/C - 0930760 from 1993

MAGNETO ASSEMBLY 440 / 0930760 AND 440 SKS / 0930560 (4922932293035A)

MAGNETO ASSEMBLY 440 / 0930760 AND 440 SKS / 0930560 (4922932293035A)

for 440 L/C - 0930760 from 1993

RECOIL STARTER ASSEMBLY 440 / 0930760 AND 440 SKS / 0930560 (4922932293036A)

RECOIL STARTER ASSEMBLY 440 / 0930760 AND 440 SKS / 0930560 (4922932293036A)

for 440 L/C - 0930760 from 1993

POLARIS 440 L/C - 0930760 1993

440 L/C - 0930760

440 L/C - 0930760

Model : OTHERS

Engine capacity : 440

Year : 1993

New and OEM parts
International Shipping
Official price POLARIS
A team of experts at your service
Secure Payment
By your side since 2001
Customer Reviews
4.2 /5
1764 Reviews
View all reviews
Spare parts catalogue for all brands
