Parts Catalog

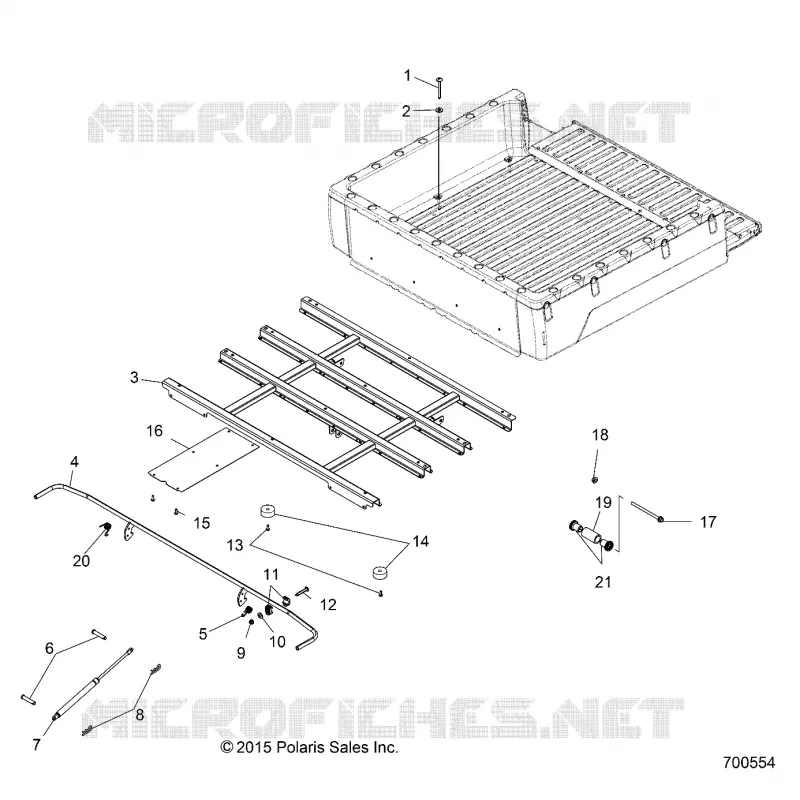

BED BOX MOUNTING
5
Parts Diagram
Parts Catalog
by
DECALS
BED BOX MOUNTING
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
1
2
3
4
5
6
7
8
1
2
3
4
1
SCR-1/4-20X1.50 TR/TX-M
7518375
$2,09 Unit Price incl. VAT
2
WASHER-.281X1.00X.051
7556329
$2,09 Unit Price incl. VAT
3
BOX SUPPORT LONG BLACK
1017757329
$818,99 Unit Price incl. VAT
4
LATCH BOX MATTE BLACK
1017305458
Not Available
5
SPRING LATCH
7043576
$9,44 Unit Price incl. VAT
6
PIN-CLEVIS 1/2 X 1 3/4
7661878
$4,19 Unit Price incl. VAT
7
SHOCK DUMP BOX
7043232
7046192
$127,88 Unit Price incl. VAT
8
CLIP-HITCHPIN .148X3 1/16
7661067
$4,19 Unit Price incl. VAT
9
NUT-5/16-18 HX FLG NL-Y [INTL]
7542343
$9,44 Unit Price incl. VAT
10
WASHER-.344X.688X.063 FL-Y
7558402
$1,56 Unit Price incl. VAT
11
BUSHING-BOX LATCH
5434226
$7,34 Unit Price incl. VAT
12
Bolt Hex
7515319
$9,44 Unit Price incl. VAT
13
SCR-1/4-20X.75 TR/TX-M
7518280
$2,09 Unit Price incl. VAT
14
BUMPER BOX 60 DURO W/WASHER
5413833
$7,34 Unit Price incl. VAT
15
SCR-1/4-20X5/8 TAP/R-Y
7517386
$2,09 Unit Price incl. VAT
16
SHIELD HEAT EXHAUST
5254563
$83,99 Unit Price incl. VAT
17
Bolt Flange
7518610
$41,99 Unit Price incl. VAT
18
NUT-M10X1.25 FLG NYLOC-OLIVE D
7547333
$3,14 Unit Price incl. VAT
19
SHAFT PIVOT 73.96MM
5137591
$10,49 Unit Price incl. VAT
20
SPRING LATCH
7043607
$20,99 Unit Price incl. VAT
21
BUSHING A-ARM. SHORT BLACK
5439270
$4,19 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
