1
Engine displacement
800
2
Year
2016
3
Trim
RANGER 800 6X6
4
Parts Catalog

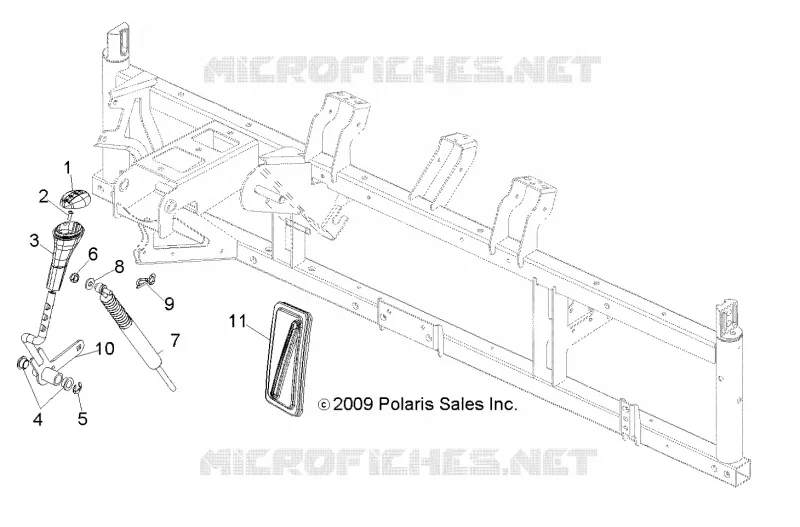

DRIVE TRAIN, GEAR SELECTOR
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, FRONT PROP SHAFT
by
DRIVE TRAIN, MAIN GEARCASE
DRIVE TRAIN, GEAR SELECTOR
1
2
3
4
5
6
7
8
9
10
11
1
2
3
4
4
5
6
7
8
9
1
COVER SHIFTER
5412079
Not Available
2
SCR-#10-24X1/2PH/TORX-TRIRD-Y
7512024
$9,44 Unit Price incl. VAT
3
KNOB GEAR SILECTOR SHIFT
5411007
3233198
$68,24 Unit Price incl. VAT
4
BUSHING-PEDAL PIVOT
5431107
$16,79 Unit Price incl. VAT
5
RING-RETAINING #E# EXT. .500
7710901
$15,74 Unit Price incl. VAT
6
NUT-NYLOCK M8X1.25-Y
7547144
$6,29 Unit Price incl. VAT
7
CABLE SHIFT
7081518
$278,24 Unit Price incl. VAT
8
WASHER-.344X.688X.063 FL-Y
7558402
$1,56 Unit Price incl. VAT
9
PIN CLIP 14MM
7661140
$2,09 Unit Price incl. VAT
10
LEVER SHIFT
1542500
$104,99 Unit Price incl. VAT
11
GROMMET-SHIFT LEVER
5413557
$13,64 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
