1
Engine displacement
1000
2
Year
2017
3
Trim
GENERAL 1000 4 SEAT EPS
4
Parts Catalog

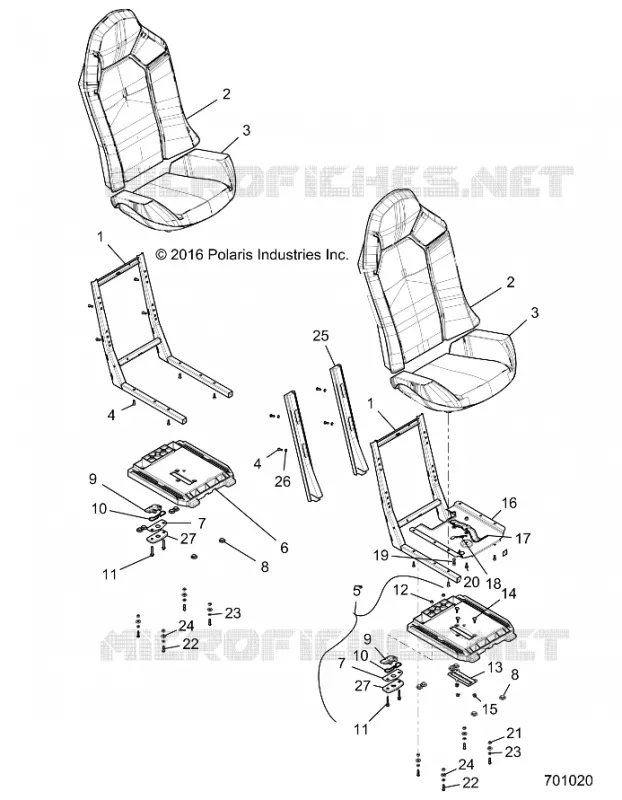

SEAT ASM. AND SLIDER
5
Parts Diagram
Parts Catalog
BODYWORK
by
TAILGATE
SEAT ASM. AND SLIDER
1
1
2
2
3
3
4
4
5
6
7
7
8
8
9
9
10
10
11
11
12
13
14
15
16
17
18
19
20
21
22
22
23
23
24
24
25
26
27
27
1
WELD-SEAT FRAME
1022256
$362,24 Unit Price incl. VAT
2
ASM-SEAT BACK BLK/RED/RED ST [TO 1/27/2017]
2687616
$464,61 Unit Price incl. VAT
3
ASM-SEAT BTM BLK/RED/RED ST [TO 1/27/2017]
2687619
$389,01 Unit Price incl. VAT
4
SCREW-1/4-20x3/4 BH TRX GR5-Z
7515177
$5,76 Unit Price incl. VAT
5
ASM. BASE SEAT SLIDER [INCL. 6-15 27]
2685704
$388,49 Unit Price incl. VAT
6
ASM. BASE SEAT [INCL. 6-12 27]
2634889
$246,74 Unit Price incl. VAT
7
PLATE-LATCH SEAT
5258647
$12,59 Unit Price incl. VAT
8
GROMMET SEAT BASE
5413441
$7,34 Unit Price incl. VAT
9
HANDLE-SEAT BASE LATCH
5437121
$9,44 Unit Price incl. VAT
10
SPRING LATCH SEAT
7081466
$57,74 Unit Price incl. VAT
11
SCREW-M6X1.00X40-HX/FL-YD
7517610
$3,14 Unit Price incl. VAT
12
NUT-6MM X 1 NYLOK-Z
7546703
$2,09 Unit Price incl. VAT
13
BRACKET SEAT SLIDER ADJUSTABLE PLATE
5257975
5270634
$31,49 Unit Price incl. VAT
14
SCR-RHCARM6X1.0X20 8.8 ZOD
7518994
$6,29 Unit Price incl. VAT
15
NUT-M6X1.0 FLG-NYLOC-OLIVE D
7547339
$2,09 Unit Price incl. VAT
16
BRACKET SEAT SLIDER MOUNTING PLATE [INCL. 16-20 FOR FRONT SEAT ONLY]
5257974
$120,74 Unit Price incl. VAT
17
BRACKET SEAT SLIDER LEVER
5260101
5260733
$52,49 Unit Price incl. VAT
18
SPRING
7044099
$10,49 Unit Price incl. VAT
19
SCR-SH-M6X1.0X9.5 12.9 ZY3
7518786
$4,19 Unit Price incl. VAT
20
BOLT SHOULDER
7518897
$3,14 Unit Price incl. VAT
21
TUBE SPACER
5340145
$10,49 Unit Price incl. VAT
22
SCR-1/4-20X1-BH-TRX-GR5-Z
7519296
$3,14 Unit Price incl. VAT
23
WASHER SPRING LOCK
7552801
$3,14 Unit Price incl. VAT
24
WASHER-FL .281X.750X.062-Y
7555859
$2,09 Unit Price incl. VAT
25
PAD-SEAT BASE RZR MP
5415501070
$73,49 Unit Price incl. VAT
26
SLEEVE-SHLD 15.5OD 10 OD 6.5ID
5140211
$7,34 Unit Price incl. VAT
27
LATCH COVER PLATE BLACK
5450510070
$10,49 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
