1
Engine displacement
780
2
Year
1997
3
Trim
SL 780 - B974088
4
Parts Catalog

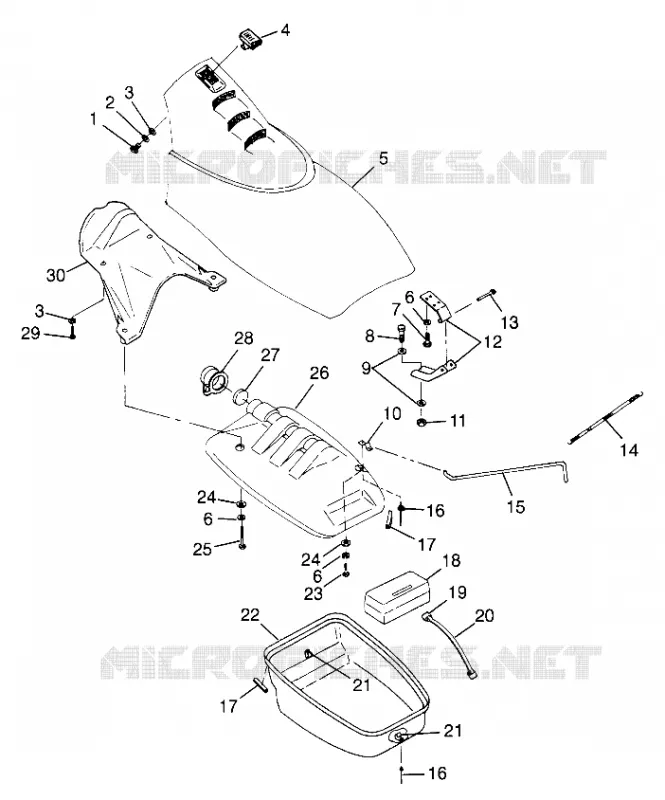

FRONT STORAGE COMPARTMENT SL 780 B974088 AND INTL. SL 780 I974088 (4940924092A008)
5
Parts Diagram
Parts Catalog
DECALS SL 780 B974088 AND INTL. SL 780 I974088 (4940924092A007)
by
STEERING SL 780 B974088 AND INTL. SL 780 I974088 (4940924092A013)
FRONT STORAGE COMPARTMENT SL 780 B974088 AND INTL. SL 780 I974088 (4940924092A008)
1
SCREW Substituted by 7512045
7512083
$7,34 Unit Price incl. VAT
2
WASHER LOCK(10)
7552615
Not Available
3
WASHER FLAT S.S.(10)
7555837
$2,09 Unit Price incl. VAT
4
LATCH ASM COMP./DOOR
2653008
Not Available
5
DOOR-COMPART SL WLD GRAPE
5432544237
Not Available
6
WASHER LOCK S.S.(10)
7555838
Not Available
7
BOLT S.S.(10)
7515121
$0,83 Unit Price incl. VAT
8
BOLT S.S.
7515365
Not Available
9
WASHER FLAT S.S.(10)
7555831
Not Available
10
RETAINER DOOR SUPPORT
5222782
$1,98 Unit Price incl. VAT
11
NUT HEX S.S.(10)
7542335
Not Available
12
HINGE ASM COMPARTMENT
2635012
Not Available
13
PIN HINGE Substituted by 2635012
7661629
$23,09 Unit Price incl. VAT
14
SPRING DOOR SUPPORT
7042038
Not Available
15
SUPPORT PORT DOOR COMP.
5224788
Not Available
16
RIVET
7621478
Not Available
17
SEAL FR.STORAGE BKT.
5521252
Not Available
18
BOX TOOL
5431508
Not Available
19
HOOK #D# SST/SS (10)
5224472
Not Available
20
STRAP RUBBER
5410853
$15,95 Unit Price incl. VAT
21
CLIP
5240187
$10,28 Unit Price incl. VAT
22
BUCKET STORAGE FRONT
5432526
Not Available
23
BOLT(10)
7515127
Not Available
24
WASHER FLAT S.S.(10)
7555839
$0,93 Unit Price incl. VAT
25
BOLT(10)
7515130
Not Available
26
LID STOR.EXTINGUISHER
5432579
Not Available
27
PAD FOAM FIRE EXT.
5810799
Not Available
28
CAP FIRE EXT. YELLOW
5431398053
$9,23 Unit Price incl. VAT
29
SCREW(10)
7512049
Not Available
30
BAFFLE AIR INTAKE CUT
5432591
$39,78 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
