BRAKES, BRAKE REAR CALIPER FOR SPORTSMAN 570 EPS TRACTOR / ZUG AGRI FROM 2023

BRAKES, BRAKE FRONT BRAKE CALIPER

BRAKE LINES, FRONT

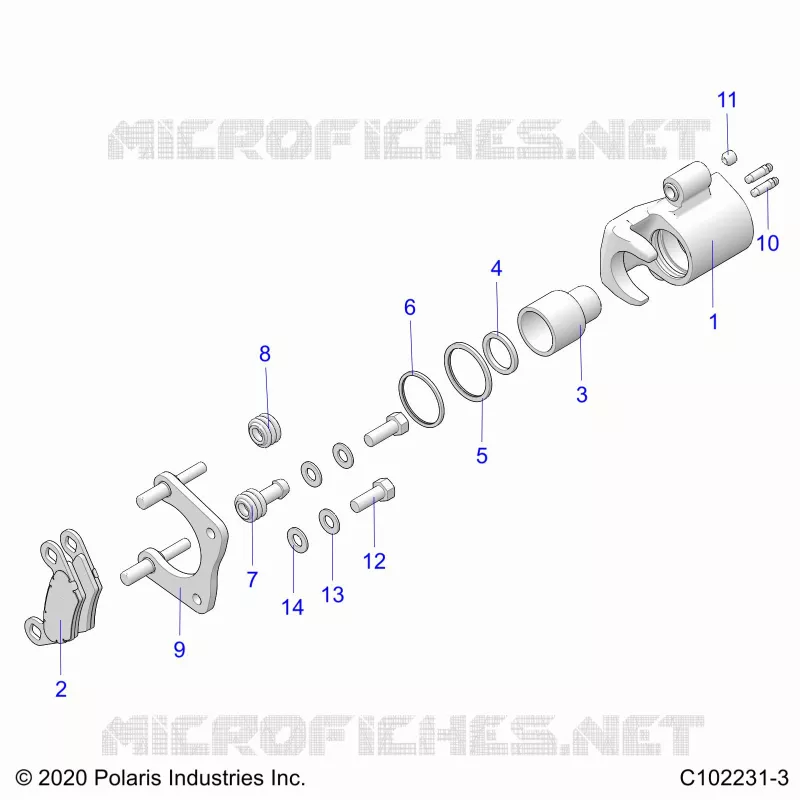

BRAKES, BRAKE REAR CALIPER

1

ASM. CALIPER DUAL INPUT REAR RH [INCL. 1-11]

1911415

$488,24 Unit Price incl. VAT

2

KIT BRAKE PAD [INCL. 2 PADS]

2204088

$49,13 Unit Price incl. VAT

3

PISTON BRAKE STEP

5136698

$83,99 Unit Price incl. VAT

4

SQUARE RING-MOLDED (.134)

5410766

$20,99 Unit Price incl. VAT

5

SEAL-CALIPER INNER 1.50#

5412010

$13,64 Unit Price incl. VAT

6

SEAL-CALIPER OUTER 1.50#

5412011

$13,64 Unit Price incl. VAT

7

BOOT-PIN BUSHING

5412505

$6,29 Unit Price incl. VAT

8

BOOT-PIN SEAL

5412506

$6,29 Unit Price incl. VAT

9

ASM. CALIPER MOUNT REAR

1911416

$73,49 Unit Price incl. VAT

10

BLEEDER SCREW 4WD

7080352

$5,76 Unit Price incl. VAT

11

SCR-3/8-24X5/16 SOC SET-Y

7515489

$10,49 Unit Price incl. VAT

12

BOLT(10) [CALIPER MOUNTING]

7512457

$7,34 Unit Price incl. VAT

13

WASHER-SPRING-LOCK

7552603

$1,56 Unit Price incl. VAT

14

WASHER-FL.390X.750X.065-Y

7556188

$6,29 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
