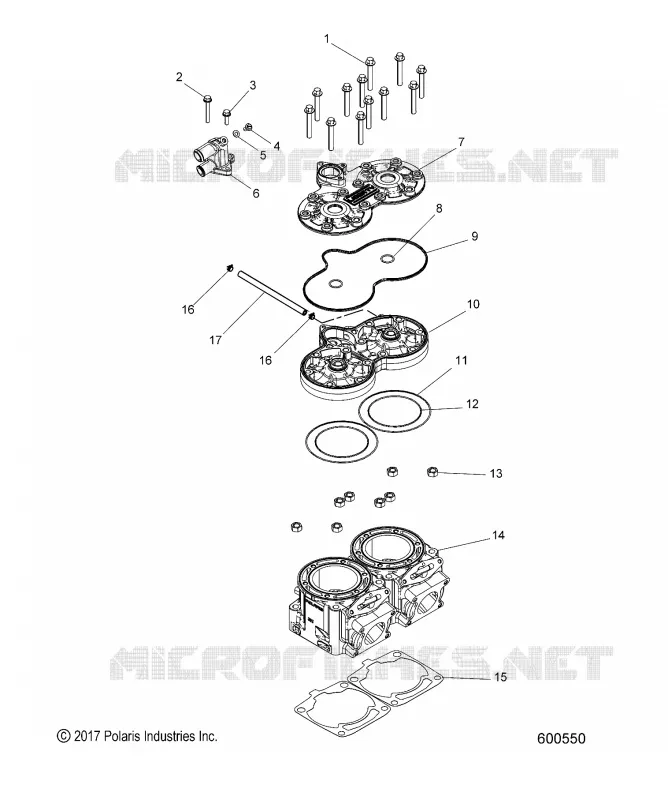

ENGINE, CYLINDER FOR 600 VOYAGEUR 144 ES FROM 2019

ENGINE, CYLINDER

1

SCR-M8X1.25X55 HX/FL-Y W/ NYSL

7517533

$8,39 Unit Price incl. VAT

2

SCR-M6X1.0X45 HX/FL-Y

7516825

$10,49 Unit Price incl. VAT

3

SCREW-M6X1.0X20-HX/FL-Y/D

7516822

$4,19 Unit Price incl. VAT

4

SCR-M6X1.0X13 SL/HX/FL-Z BLEED

7520470

$9,44 Unit Price incl. VAT

5

WASHER-FLAT 6.15X12X1MM-AL

7555998

$2,09 Unit Price incl. VAT

6

COVER-TSTAT DUAL OUT MACH

5139019

$52,49 Unit Price incl. VAT

7

COVER HEAD AS

5138804

$115,49 Unit Price incl. VAT

8

O-RING-.924X1.130X.103 V/N-119

5411411

$1,56 Unit Price incl. VAT

9

SEAL-GLAND HEAD 77.25 AS

5414803

$18,89 Unit Price incl. VAT

10

HEAD-CYLINDER 77.25 AS NOM

3022590

$451,49 Unit Price incl. VAT

11

O-RING 119X124X2.5

5415031

$18,89 Unit Price incl. VAT

12

O-RING-3.489X3.629X.07 HI-TMP

5410932

$36,74 Unit Price incl. VAT

13

NUT-M10X1.25-HX/FL

7547013

$3,14 Unit Price incl. VAT

14

CYLINDER-77.25 600LE BP OR

3022663

$1 171,79 Unit Price incl. VAT

15

GASKET CYLINDER BASE

5813312

$18,89 Unit Price incl. VAT

16

CLAMP HOSE 14.0/10

7082198

$4,19 Unit Price incl. VAT

17

HOSE-COOLANT 5/16# 22CM LONG

5415236

$12,59 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
