1
Engine displacement
500
2
Year
2003
3
Trim
SPORTSMAN 6X6 - A03CL50AA
4
Parts Catalog
FRONT HOUSING
5
Parts Diagram
Parts Catalog
CONTROLS-MASTER CYLINDER/BRAKE LINE
by
FRONT HOUSING
-
1
1
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
-
GEARCASE FRONT ASM. (Incl. 1-12 16-26) NOTE: Used on Machines Built After 7/01/99.
1341323
$1 900,49 Unit Price incl. VAT
1
SCREW
3233252
$9,44 Unit Price incl. VAT
2
SEAL
3233248
3233788
$57,74 Unit Price incl. VAT
3
INPUT COVER-FRONT HOUSING
3233701
Not Available
4
O-RING
3233700
Not Available
5
RING RETAINING IRR 7200-118
3233699
$13,64 Unit Price incl. VAT
6
BEARING BALL
3233589
$101,84 Unit Price incl. VAT
7
PINION INPUT 14T
3233726
Not Available
8
BUSHING GARLOCK
3233541
$41,99 Unit Price incl. VAT
9
SEAL
3233319
$52,49 Unit Price incl. VAT
10
BUSHINHG-GARLOCK
3233697
Not Available
11
WASHER
3233324
$13,64 Unit Price incl. VAT
12
PLUG OIL FILL
3233711
Not Available
13
Clip Snap-In .375 Inch
7080756
$9,44 Unit Price incl. VAT
14
HOSE [BULK SVC]
84500031525
$136,49 Unit Price incl. VAT
15
CLAMP-HOSE (LARGE GREEN)
7080307
$1,56 Unit Price incl. VAT
16
Tube Vent Hose
3233524
$15,74 Unit Price incl. VAT
17
GEARCASE
3233696
Not Available
18
SHAFT OUTPUT 29T
3233725
Not Available
19
BEARING BALL 6305 C3 25 X 62 X 17
3233020
$80,84 Unit Price incl. VAT
20
Shim
3233554
$62,99 Unit Price incl. VAT
21
O-RING
3233693
Not Available
22
COVER OUTPUT
3233724
Not Available
23
SHIM .450 X .265
3233583
$52,49 Unit Price incl. VAT
24
THRUST BUTTON
3233582
$13,64 Unit Price incl. VAT
25
PLUG WASHER
3233254
$14,69 Unit Price incl. VAT
26
PLUG DRAIN Substituted by 3233777
3233253
$52,49 Unit Price incl. VAT
27
WASHER-SPRING-LOCK
7552603
$1,56 Unit Price incl. VAT
28
SCREW
7512492
$2,09 Unit Price incl. VAT

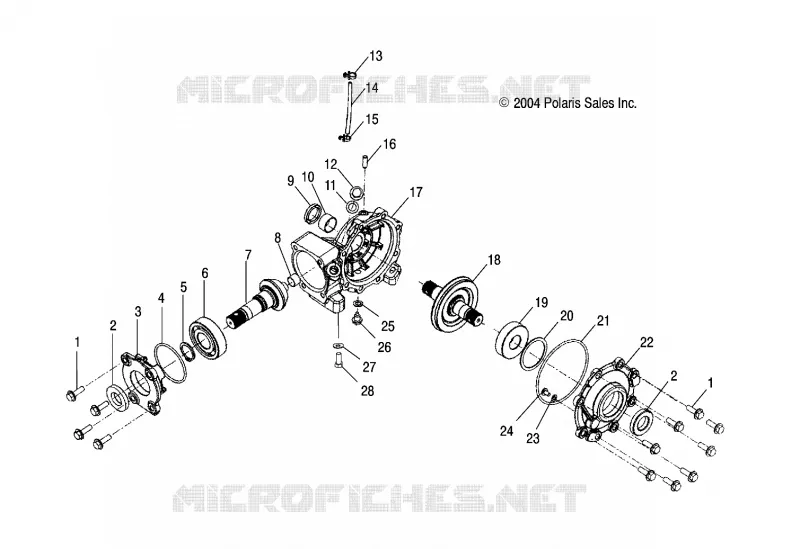

Find the detailed FRONT HOUSING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
