1
Engine displacement
350
2
Year
1993
3
Trim
350l-6x6-w938739
4
Parts Catalog

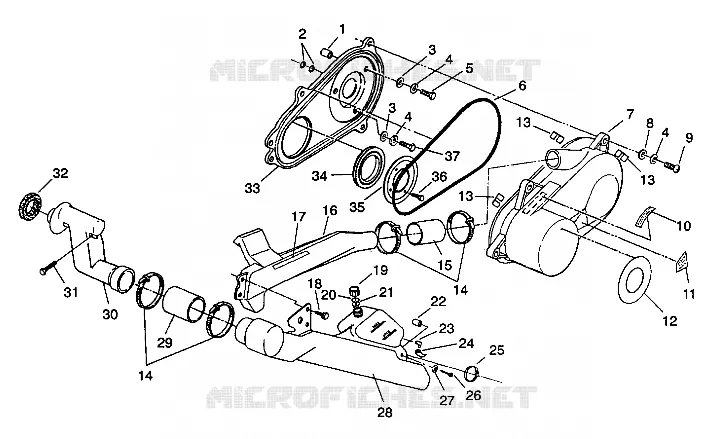

CLUTCH COVER ASSEMBLY 6X6 350L W938739 (4924062406030A)
5
Parts Diagram
Parts Catalog
SWING ARM 6X6 350L W938739 (4924062406029A)
by
DRIVE CLUTCH ASSEMBLY 6X6 350L W938739 (4924062406031A)
CLUTCH COVER ASSEMBLY 6X6 350L W938739 (4924062406030A)
1
2
3
3
4
4
4
5
6
7
8
9
10
11
12
13
13
13
14
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
1
2
3
3
4
4
4
5
6
7
8
9
10
11
12
13
13
13
14
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
1
SPACER
5333062
Not Available
2
SEAL COVER CASE
5410489
$25,19 Unit Price incl. VAT
3
WASHER-.28X.62-.14(RBR-BK)-Z
7555748
$9,44 Unit Price incl. VAT
4
WASHER(10)
7552605
$9,44 Unit Price incl. VAT
5
BOLT
7512277
$9,44 Unit Price incl. VAT
6
SEAL CLUTCHCOVER
5521301
5526452
$58,58 Unit Price incl. VAT
7
COVER CLUTCH FRONT
5430771
Not Available
8
WASHER(10) Substituted by 7558301
7555776
7558301
$2,09 Unit Price incl. VAT
9
BOLT(10)
7512281
$7,34 Unit Price incl. VAT
10
DECAL(CPSC) CLUTCH COVER Substituted by 7074946
7072787
Not Available
11
DECAL(CPSC) ENG/CLUTCH MOD. [No Longer Available]
7072789
Not Available
12
DECAL PVT [No Longer Available]
7072386
Not Available
13
CLIP CLUTCH COVER(10)
7670051
Not Available
14
CABLE-TIE 25-76MM WEATH.-RES.
7080492
$5,24 Unit Price incl. VAT
15
BOOT CLUTCH INTAKE
5410421
$20,99 Unit Price incl. VAT
16
DUCT AIR OUTLET
5431010
Not Available
17
DECAL #DEMAND-DRIVE#
7073454
Not Available
18
SCR-#10-24X3/4 PN/TR RD-TORX-Y (taillight) [S57C1 C9]
7512018
$6,29 Unit Price incl. VAT
19
CAP-OVER FLOW BOTTLE DRILLED
5430743
$10,49 Unit Price incl. VAT
20
GASKET-OVERFLOW CAP
5810279
$4,19 Unit Price incl. VAT
21
PLUG-OVERFLOW 8X (RED)
5431096
$3,66 Unit Price incl. VAT
22
SPACER
5020577
Not Available
23
FITTING-1/8-27 BARBED 90 DEG
7052065
$13,64 Unit Price incl. VAT
24
FUEL LINE-68 CENTIMETERS
845000368
$136,49 Unit Price incl. VAT
25
CLAMP-NARROW BAND 1.38/2.38
7080511
$9,44 Unit Price incl. VAT
26
SCR-10-24X1.25TFM PN TRX TRI-Y
7512025
$9,44 Unit Price incl. VAT
27
WASHER FLAT
7555783
$7,34 Unit Price incl. VAT
28
DOWNTUBE DUAL INLET Substituted by 5432336
5431185
$246,74 Unit Price incl. VAT
29
BOOT INTAKE
5410509
$15,74 Unit Price incl. VAT
30
DUCT INLET TOP
5431261
$79,47 Unit Price incl. VAT
31
SCREW(10)
7512017
$9,44 Unit Price incl. VAT
32
SEAL INTAKE
5810480
Not Available
33
COVER&SEAL ASM REAR [No Longer Available]
2620062
Not Available
34
SEAL COVER CASE
5410575
$78,74 Unit Price incl. VAT
35
BRKT RETAINER SEAL
5222446067
Not Available
36
SCREW & WASHER(10)
3084205
$7,34 Unit Price incl. VAT
37
BOLT(10)
7512278
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
