BODY, CLUTCH COVER FOR SPORTSMAN 570 EPS HUNTER EDITION TRACTOR / ZUG FROM 2023

BODY, CLOSE OFF PANEL and ACCESS PANEL

DECALSS, GENERAL- A23SES57C9/F9 (900597)

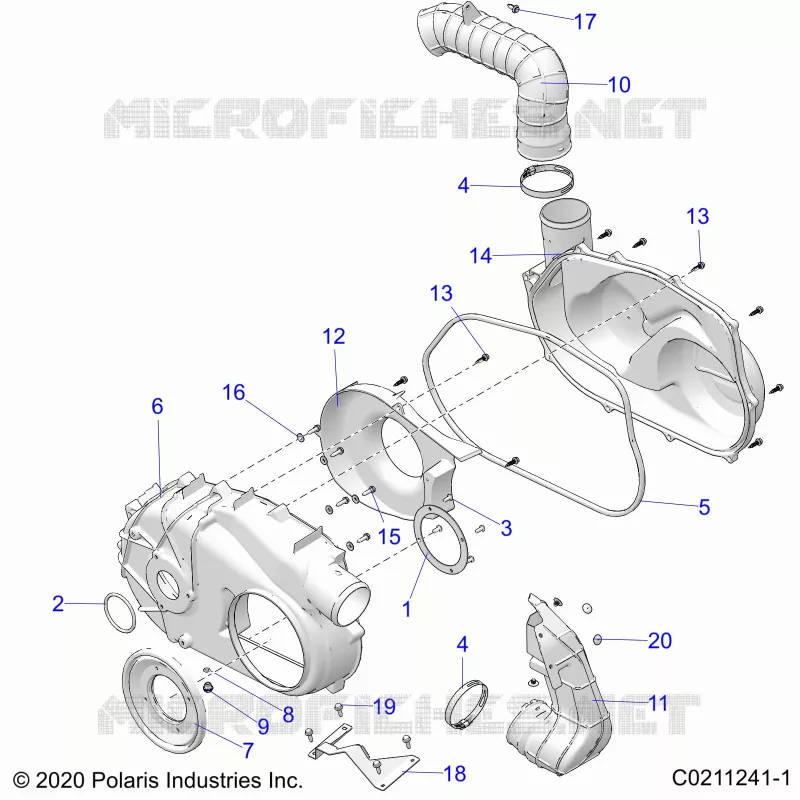

BODY, CLUTCH COVER

1

BRKT-SEAL P190X

5269868

$19,94 Unit Price incl. VAT

2

O-RING-0.489X0.629X0.070 EPDM

5415647

$3,14 Unit Price incl. VAT

3

SCR-TXPH-M6X1.0X15 GR5 ZOD NYL

7518656

$7,34 Unit Price incl. VAT

4

CLAMP-HOSE SLOTTED 92-100 DIA

7081969

$19,94 Unit Price incl. VAT

5

SEAL-OUTER CLUTCH COVER

5522362

$78,74 Unit Price incl. VAT

6

ASM-CLUTCH COVER-INNER [INCL. 7-9]

2637805

$309,74 Unit Price incl. VAT

7

SEAL-COVER CLUTCH INNER P190X

5418251

$104,99 Unit Price incl. VAT

8

O RING-.364X.504X.07

5410542

$9,44 Unit Price incl. VAT

9

PLUG-DRAIN CLUTCH COVER

5434264

$10,49 Unit Price incl. VAT

10

DUCT-CLUTCH OUTLET

5417337

$104,99 Unit Price incl. VAT

11

ASM-INLET CVT P190X ATV [INCL. QTY 3 OF 20 INLET AND SHEILD]

2638325

$152,24 Unit Price incl. VAT

12

COVER-CLUTCH INTAKE BAFFLE

5455440

$178,49 Unit Price incl. VAT

13

SCR-#14X1-1/4 HI/LO/TAPER-Y

7519849

$6,29 Unit Price incl. VAT

14

K-COVER-CLUTCH OUTER BLK [INCL. WARNING DECAL]

2209050

Not Available

15

SCR-1/4-20X.88 HXWR TAPR GR5 Y

7517312

$2,09 Unit Price incl. VAT

16

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$9,44 Unit Price incl. VAT

17

RIVET-TUFLOK .315-.325X.787 ?

7661855

$2,09 Unit Price incl. VAT

18

CLUTCH-BOX LIMITER E-COAT

5271308329

$62,99 Unit Price incl. VAT

19

SCR-M6X1.0X20 HXHD FLG TDFM BK

7518529

$2,09 Unit Price incl. VAT

20

CLIP-FIR TREE DART 6.35MM

7670090

$2,09 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
