Parts Catalog

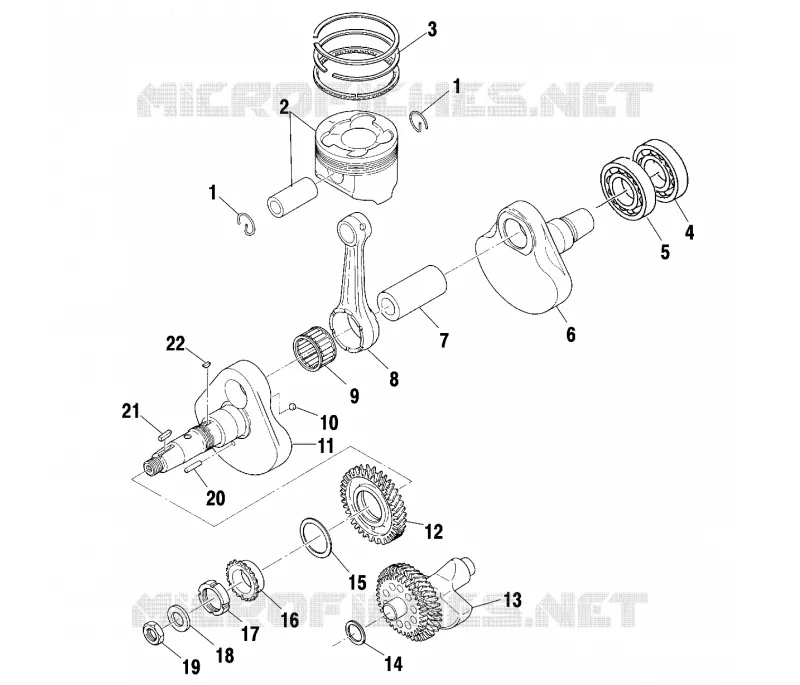

CRANKSHAFT AND PISTON
5
Parts Diagram
Parts Catalog
CRANKCASE
by
CARBURETOR
CRANKSHAFT AND PISTON
1
2
2
2
3
3
3
3
3
3
4
5
6
7
8
9
10
11
11
12
13
14
14
14
15
15
15
15
16
17
18
19
20
21
22
1
2
2
2
3
3
3
3
3
3
4
5
6
7
8
9
10
11
11
12
13
14
14
14
15
15
15
15
16
17
18
19
20
21
22
1
CLIP(10)
3085534
Not Available
2
PISTON SET(STD) (Std) (Incl. 1)
3085866
Not Available
2
PISTON SET(.50 0/S) (.020#/0.50mm O/S) (Incl. 1)
3085868
Not Available
2
PISTON SET(.25 O/S) (.010#/0.25mm O/S) (Incl. 1)
3085867
Not Available
3
RING SET (STD) * (Std)
3085379
$101,84 Unit Price incl. VAT
3
RING SET (.25MM/.010 OS) (0.25 O/S)
3085380
Not Available
3
RING SET (.50MM/.020 OS) (0.50 O/S)
3085381
$108,14 Unit Price incl. VAT
4
BEARING BALL
3080676
$54,59 Unit Price incl. VAT
5
Bearing Ball
3085815
$74,54 Unit Price incl. VAT
6
Crankshaft 2 [4x4][6x6]
3085812
$1 238,99 Unit Price incl. VAT
7
PIN CRANK
3085341
$204,74 Unit Price incl. VAT
8
Rod Connecting
3085813
Not Available
9
BEARING LARGE END Substituted by 3085343
3085400
$121,79 Unit Price incl. VAT
10
BALL STEEL
3085024
$12,59 Unit Price incl. VAT
11
CRANKSHAFT 1
3085945
Not Available
11
CRANKSHAFT (Incl. 6-12 20)
3085861
$1 637,99 Unit Price incl. VAT
12
BALANCER GEAR 1 *
3085852
Not Available
13
SHAFT BALANCER *
3086837
Not Available
14
SPACER (1.0)
3084896
$12,59 Unit Price incl. VAT
14
SPACER (0.8)
3084895
$12,59 Unit Price incl. VAT
14
SPACER (1.2)
3084897
$12,59 Unit Price incl. VAT
15
SPACER (1.0)
3084893
$36,74 Unit Price incl. VAT
15
SPACER (1.2)
3084894
$36,74 Unit Price incl. VAT
15
SPACER
3240088
$19,94 Unit Price incl. VAT
15
SPACER (0.8)
3084892
$24,14 Unit Price incl. VAT
16
SPROCKET 1
3084882
Not Available
17
NUT SLIT
3085528
$68,24 Unit Price incl. VAT
18
WASHER Substituted by 3086767
3083904
Not Available
19
LOCKNUT
3083905
Not Available
20
PIN DOWEL
3085346
Not Available
21
KEY
3081447
Not Available
22
Key Woodruff
3240168
$47,24 Unit Price incl. VAT
