1
Engine displacement
600
2
Year
2014
3
Trim
600-indy-sp-es
4
Parts Catalog

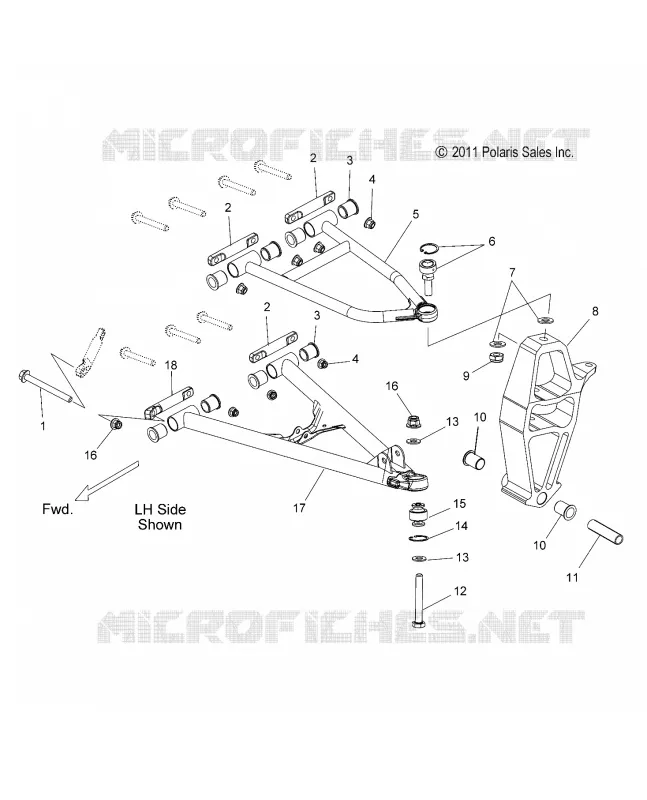

FRONT WISHBONES
5
Parts Diagram
Parts Catalog
SWAY BAR
by
SUSPENSION, RAIL MOUNTING
FRONT WISHBONES
1
2
2
2
3
3
4
4
5
5
5
5
6
6
7
8
8
9
10
10
11
12
13
13
14
15
16
16
17
17
17
17
18
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
14
15
16
17
18
1
SCR-M10X1.5X95 HX FLG 10.9 ZOD
7518917
$9,44 Unit Price incl. VAT
2
SHAFT PIVOT
5137700
$68,24 Unit Price incl. VAT
3
BUSHING PIVOT
5438792
$4,19 Unit Price incl. VAT
4
NUT- M8X1.25 FLG NYLOC-OLIVE D
7547332
$7,34 Unit Price incl. VAT
5
KIT UPPER CONTROL ARM LH BLACK
2204665067
$335,99 Unit Price incl. VAT
5
KIT UPPER CONTROL ARM RH BLACK
2204666067
$335,99 Unit Price incl. VAT
5
Kit Upper Control Arm RH Indy Red
2204666293
Not Available
5
Kit Upper Control Arm LH Indy Red
2204665293
$335,99 Unit Price incl. VAT
6
RING RETAINING
7710642
$4,19 Unit Price incl. VAT
6
BEARING SPHERICAL UPPER CONTROL ARM
7061179
$47,24 Unit Price incl. VAT
7
WASHER-7/16 SAE STF THRU-HRD-Y
7556212
$15,74 Unit Price incl. VAT
8
ASM. SPINDLE LH [INCL. 11]
1823801
$314,99 Unit Price incl. VAT
8
ASM. SPINDLE RH [INCL. 11]
1823802
$314,99 Unit Price incl. VAT
9
NUT-HEX-M12X1.5 8 ZOD NYL
7547464
$6,29 Unit Price incl. VAT
10
BUSHING SKI PIVOT
5438460
$27,29 Unit Price incl. VAT
11
BUSHING
5136910
$13,64 Unit Price incl. VAT
12
SCREW M10x75 HCS
7519015
$10,49 Unit Price incl. VAT
13
WASHER
7555806
$1,56 Unit Price incl. VAT
14
RING RETAINING
7710539
$4,19 Unit Price incl. VAT
15
KIT SPHERICAL BEARING LOWER
2204229
$54,59 Unit Price incl. VAT
16
NUT-M10X1.5 HFN NYLOC ZOD
7547423
$7,34 Unit Price incl. VAT
17
KIT LOWER CONTROL ARM LH BLACK
2204663067
$451,49 Unit Price incl. VAT
17
KIT LOWER CONTROL ARM RH BLACK
2204664067
$451,49 Unit Price incl. VAT
17
Kit Lower Control Arm LH Indy Red
2204663293
$451,49 Unit Price incl. VAT
17
Kit Lower Control Arm RH Indy Red
2204664293
$451,49 Unit Price incl. VAT
18
SHAFT PIVOT LOWER CONTROL ARM FRONT
5137701
$73,49 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
