1
Engine displacement
570
2
Year
2019
3
Trim
RANGER CREW 570 FS
4
Parts Catalog
STEERING
5
Parts Diagram
Parts Catalog
ENGINE, STATOR COVER AND FLYWHEEL
by
FRONT SUSPENSION STRUT

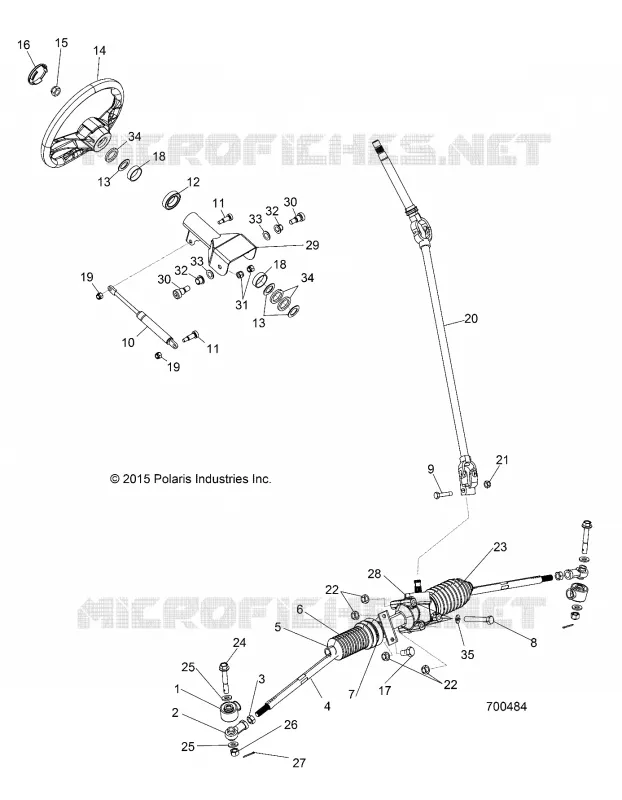

STEERING
17
18
18
19
19
20
21
22
22
1
24
25
25
26
27
28
29
30
30
31
32
32
33
33
34
34
35
1
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
2
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
3
NUT JAM LH THREAD
2205058
$41,99 Unit Price incl. VAT
4
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
5
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
6
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
7
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
8
BOLT-M8X1.25X95 HX BOLT
7518935
$3,14 Unit Price incl. VAT
9
SCR-M10X1.50X35 HX/FL
7518644
$9,44 Unit Price incl. VAT
10
ASM-SHOCK OIL LOCKING MACH
7044098
$178,49 Unit Price incl. VAT
11
SCR-SH-M6X1.0X11 12.9 ZB SHB
7519980
$13,64 Unit Price incl. VAT
12
BEARING-STEERING
3514686
$16,79 Unit Price incl. VAT
13
WASHER-30MM ODX 21MM ID X 1.5
7556483
$7,34 Unit Price incl. VAT
14
WHEEL-STEERING 14# [ED4FA/ED4DA][SD4CA]
1823622
$246,74 Unit Price incl. VAT
15
NUT-HEX-M16X2 8 ZC NYL
7547506
$7,34 Unit Price incl. VAT
16
CAP STEERING WHEEL [ED4FA/ED4DA][SD4CA]
5438865
$9,44 Unit Price incl. VAT
17
SCR-HXFL-M8X1.25X20 8.8 ZY3
7518702
$7,34 Unit Price incl. VAT
18
SPACER-STEERING SHAFT
5252796
$9,44 Unit Price incl. VAT
19
NUT-6MM X 1 NYLOK-Z
7546703
$2,09 Unit Price incl. VAT
20
SHAFT STEERING UPPER/LOWER
1824489
$272,99 Unit Price incl. VAT
21
NUT-NY INS M10X1.5 HEX ZINC YW
7547385
$2,09 Unit Price incl. VAT
22
NUT- M8X1.25 FLG NYLOC-OLIVE D
7547332
$7,34 Unit Price incl. VAT
23
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
24
SCR-HXFL-M10X1.25X75 10.9 ZOD
7519854
$31,49 Unit Price incl. VAT
25
WASHER-FL 10.7X21.9X2.5-Y
7556099
$3,14 Unit Price incl. VAT
26
NUT-M10X1.25 FLG NYLOC-OLIVE D
7547333
$3,14 Unit Price incl. VAT
27
PIN COTTER
7661203
$2,09 Unit Price incl. VAT
28
ASM-GEARBOX STEERING FS [INCL. 1-7 23]
1824488
$755,99 Unit Price incl. VAT
29
ASM-PIVOT TUBE EWB
1017722521
$125,99 Unit Price incl. VAT
30
SCR-SHSB -3/8-16X.450 12.9 ZY
7520412
$17,84 Unit Price incl. VAT
31
NUT-3/8-16 FLEXLOCK THIN-Y
7547008
$11,54 Unit Price incl. VAT
32
BUSHING-PEDAL PIVOT
5431107
$16,79 Unit Price incl. VAT
33
WASHER-.510X.840X.031 Y
7555919
$7,34 Unit Price incl. VAT
34
WASHER-NEOPREME 28 OD X 20 ID
7556482
$7,34 Unit Price incl. VAT
35
WASHER-.344X.688X.063 FL-Y
7558402
$1,56 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
