CARBURETOR ASSEMBLY (4916361636039A) FOR BIG BOSS 4X6 - W898627 FROM 1989

OIL PUMP ASSEMBLY (4916361636038A)

STARTING MOTOR ASSEMBLY (4916361636040A)

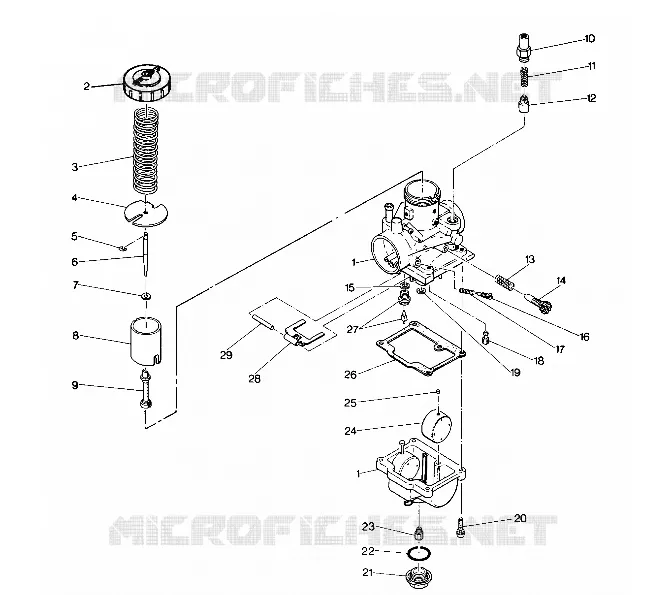

CARBURETOR ASSEMBLY (4916361636039A)

1

CARBURETOR Substituted by 3130424

3130383

Not Available

2

TOP MIX CHAMBER (Incl. 3)

3130060

Not Available

3

SPRING CARB.COMPRESS

7041226

Not Available

4

PLATE THROTTLE

3130002

$47,24 Unit Price incl. VAT

5

E RING(10) Substituted by 3130508

3130003

$12,59 Unit Price incl. VAT

6

JET NEEDLE

3130155

$52,49 Unit Price incl. VAT

7

WASHER

3130355

$13,64 Unit Price incl. VAT

8

VALVE THROTTLE (2.0)

3130420

Not Available

9

JET NEEDLE(0-4) 169 (169)

3130409

$83,99 Unit Price incl. VAT

10

CAP PLUNGER

3130359

$31,49 Unit Price incl. VAT

11

SPRING PLUNGER

3130006

$18,89 Unit Price incl. VAT

12

ASM. PLUNGER

3130328

$68,24 Unit Price incl. VAT

13

SPRING THROTTLE ADJUSTER

3130010

$18,89 Unit Price incl. VAT

14

SCREW THROTTLE STOP

3130324

$36,74 Unit Price incl. VAT

15

PACKING NEEDLE VALVE

3130017

$7,34 Unit Price incl. VAT

16

SCREW AIR

3130011

$36,74 Unit Price incl. VAT

17

SPRING AIR ADJUST

3130012

$18,89 Unit Price incl. VAT

18

JET PILOT #40(10) (No. 40)

3130067

Not Available

19

WASHER

3130014

$3,14 Unit Price incl. VAT

20

ASM. SCREW AND WASHER

3130025

$6,29 Unit Price incl. VAT

21

BOLT BANJO Substituted by 3130321

3082471

Not Available

22

O-RING

3130239

Not Available

23

JET MAIN HX.HD.#145 (#145)

3130112

Not Available

24

PLATE THROTTLE

3130027

$19,94 Unit Price incl. VAT

24

FLOAT ASM

3130021

$83,99 Unit Price incl. VAT

25

CAP

3130237

$8,39 Unit Price incl. VAT

26

GASKET FLOAT CHAMBER

3130020

$31,49 Unit Price incl. VAT

27

VALVE NEEDLE

3130360

$89,24 Unit Price incl. VAT

28

ARM FLOAT

3130018

$52,49 Unit Price incl. VAT

29

PIN FLOAT

3130361

$18,89 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
