BRAKE CHAINCASE SPORT, TRAIL, 400 AND 600 (4912701270011A)
5
Parts Diagram
Parts Catalog
DRIVEN CLUTCH SPORT, TRAIL, 400 AND 600 (4912701270010A)
by
SUSPENSION SPORT TRAIL, 400 AND 600 (4912701270013A)

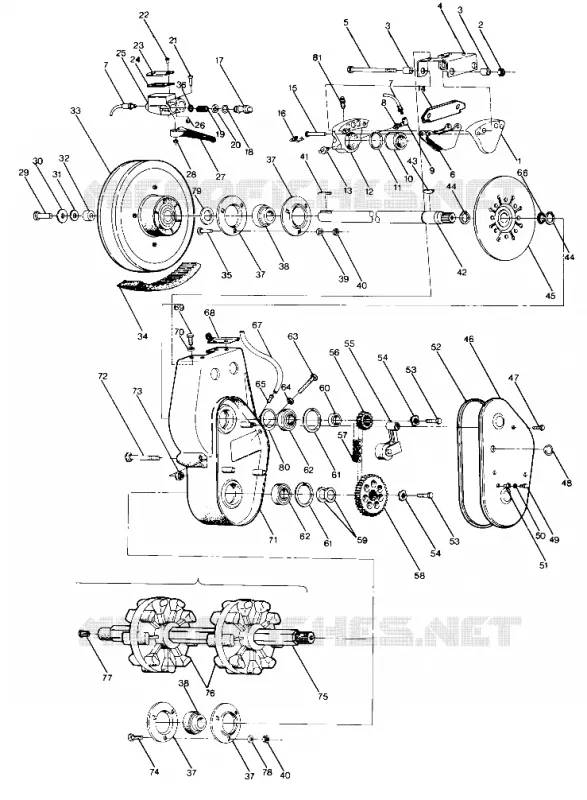

BRAKE CHAINCASE SPORT, TRAIL, 400 AND 600 (4912701270011A)
1
CASTING-CARRIER
1930570
Not Available
2
NUT
1930558
Not Available
3
BUSHING
1930559
Not Available
4
BRACKET
5223986
Not Available
4
BRACKET (Sport Trail 400)
1930560
Not Available
5
BOLT-BRIDGE
1930561
Not Available
6
PAD BRAKE
1930569
Not Available
7
LINE-BRAKE [No Longer Available]
5420114
Not Available
8
CONNECTOR
5020371
Not Available
9
ELBOW-FEMALE
7052034
$8,39 Unit Price incl. VAT
10
PISTON
1930568
Not Available
11
SEAL-PISTON
1930567
Not Available
12
CALIPER ASM BRAKE Substituted by 1930556
1930566
Not Available
13
SWITCH-STOPLIGHT
4110046
Not Available
14
SPACER
5210999
Not Available
15
PIN PAD RETAINING
1930563
Not Available
16
CLIP-SPRING
1930562
Not Available
17
PISTON-BRAKE Substituted by 5020511
5020319
Not Available
18
O RING-.549X.755X1.03
5410163
$3,14 Unit Price incl. VAT
19
SPRING-INNER Substituted by 7041203
7041067
$52,49 Unit Price incl. VAT
20
U PACKING SEAL
5410164
$17,84 Unit Price incl. VAT
21
SCREW(10)
7511975
Not Available
22
SCREW(10)
7511841
Not Available
23
COVER RESERVOIR
5630127
$60,78 Unit Price incl. VAT
24
GASKET-COVER
5410176
Not Available
25
HOUSING-MASTER CYL Substituted by 2050056
5630125
Not Available
26
SCREW SET(10)
7512308
Not Available
27
LEVER BRAKE Substituted by 5630335
5630126
$85,88 Unit Price incl. VAT
28
BUSHING-BRAKE LEVER [No Longer Available]
5332326
Not Available
29
BOLT(10)
7515301
Not Available
30
WSHR-.344X.750X.062-Y
7555701
$7,34 Unit Price incl. VAT
31
WASHER FLAT .344x.875x.063
7555734
$1,56 Unit Price incl. VAT
32
SPACER
5020291
Not Available
33
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
34
BELT DRIVE(5)
3211042
$141,21 Unit Price incl. VAT
34
BELT-DRIVE
3211046
Not Available
35
BOLT(10) Substituted by 7512377
7512394
7512377
$9,44 Unit Price incl. VAT
36
WASHER(10)
7555708
$7,34 Unit Price incl. VAT
37
FLANGETTE Substituted by 5222751
5221172
$26,24 Unit Price incl. VAT
38
BEARING
3514501
Not Available
39
WASHER-.344X.688X.063 FL-Y
7558402
$1,56 Unit Price incl. VAT
40
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
41
KEY-SQUARE(10)
7721204
$5,76 Unit Price incl. VAT
42
SHAFT INPUT BLK. Substituted by 5020323-067
5020323
Not Available
43
KEY (10)
7727003
Not Available
44
RING RETAINING(10)
7713901
Not Available
45
DISC BRAKE ASM
1332091
Not Available
46
COVER CHAINCASE Substituted by 5222579
5223775
Not Available
47
BOLT(10)
7512246
Not Available
48
PLUG RUBBER-HOLE .5DIA(10) Substituted by 5411426
5410012
Not Available
49
SCREW(10)
7511909
$7,34 Unit Price incl. VAT
50
WASHER FLAT
7558201
$9,44 Unit Price incl. VAT
51
NUT-WELL(10)
7541918
Not Available
52
GASKET-CHAINCASE
5410277
Not Available
53
SCR-HH-5/16-18X0.75 GR5 ZY3 NY
7512325
$4,19 Unit Price incl. VAT
54
WASHER SHAKEPROOF(10) Substituted by 7577902
7577908
Not Available
55
TIGHTENER ASM. Substituted by 1332213
1332078
Not Available
56
SPROCKET 19 T
3221034
Not Available
56
SPROCKET 21 T
3221035
Not Available
56
SPROCKET 17 T (Sport)
3221033
Not Available
57
CHAIN 64 PITCH
3224023
Not Available
57
SPROCKET 35 T
3222036
$85,88 Unit Price incl. VAT
58
SPROCKET 35 T
3222036
$85,88 Unit Price incl. VAT
59
BUSHING
7556509
$3,14 Unit Price incl. VAT
60
SPACER Substituted by 5010270
5010128
Not Available
61
RING RETAINING
7718406
$11,54 Unit Price incl. VAT
62
BEARING
3514303
$20,99 Unit Price incl. VAT
63
SCREW(10)
7512470
Not Available
64
NUT-3/8-16-Y
7542404
$3,14 Unit Price incl. VAT
65
PIN-SPIRAL(10)
7661504
Not Available
66
SPACER DISK BRAKE
5020430
Not Available
67
KIT-TANK VENT
2200190
Not Available
68
RETAINER RECOIL Substituted by 1011593-067 (600 600 LE)
1011593
Not Available
69
BOLT(10)
7512240
$7,34 Unit Price incl. VAT
70
WASHER SPRING LOCK
7552801
$3,14 Unit Price incl. VAT
71
CHAINCASE ASM (REPL.) Substituted by 1332124
5630226
Not Available
71
CHAINCASE Substituted by 1332124 (600 600 SE)
5630246
$423,14 Unit Price incl. VAT
72
BOLT(10)
7515428
$9,44 Unit Price incl. VAT
73
NUT FLANGE
7542423
$7,34 Unit Price incl. VAT
74
BOLT CARRIAGE
7512331
$7,34 Unit Price incl. VAT
75
DRIVE SHAFT
5020388
Not Available
76
SPROCKET 9T
5430571
Not Available
77
BUSHING METAL SPEEDO
3280019
$20,99 Unit Price incl. VAT
78
WASHER(10)
7555725
Not Available
80
O-RING CHAINCASE
5410401
Not Available
81
SCREW-BLEEDER
1930564
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
