1
Engine displacement
0
2
Year
1998
3
Trim
XCF - 0981643
4
Parts Catalog

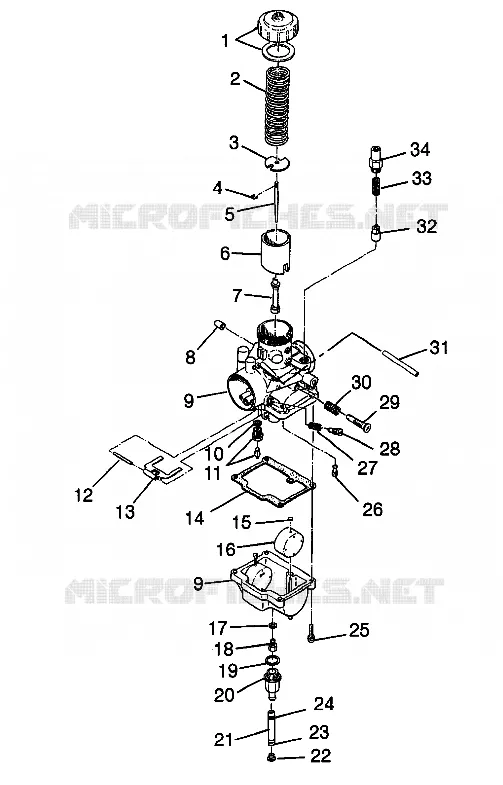

CARBURETOR XCF 0981643 (4942774277C008)
5
Parts Diagram
Parts Catalog
OIL TANK/AIR BOX XCF 0981643 (4942774277C003)
by
FUEL PUMP XCF 0981643 (4942774277C009)
CARBURETOR XCF 0981643 (4942774277C008)
1
2
3
4
5
6
7
8
9
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
1
ASM. TOP MIXING CHAMBER
3130184
$68,24 Unit Price incl. VAT
2
SPRING THROTTLE
3130318
$47,24 Unit Price incl. VAT
3
PLATE THROTTLE
3130027
$19,94 Unit Price incl. VAT
4
E RING(10) Substituted by 3130508
3130003
3130508
$12,59 Unit Price incl. VAT
5
JET NEEDLE (6FJ6-3) (6FJ6-3) EC44-3PM-02
3130481
Not Available
6
VALVE THROTTLE 2.0 (2.0)
3130464
Not Available
7
NEEDLE JET
3130421
Not Available
8
CAP
3130479
$31,49 Unit Price incl. VAT
9
CARBURETOR ASM. (Incl. 1-17 22-33)
3130547
Not Available
10
PACKING NEEDLE VALVE
3130017
$7,34 Unit Price incl. VAT
11
VALVE NEEDLE Substituted by 3131146
3130016
3131146
$99,74 Unit Price incl. VAT
12
PIN FLOAT
3130361
$18,89 Unit Price incl. VAT
13
ARM FLOAT
3130018
$52,49 Unit Price incl. VAT
14
GASKET FLOAT CHAMBER
3130020
$31,49 Unit Price incl. VAT
15
CAP
3130237
$8,39 Unit Price incl. VAT
16
ASM. FLOAT
3130430
$73,49 Unit Price incl. VAT
17
WASHER
3130014
$3,14 Unit Price incl. VAT
18
JET MAIN HX.HD.#185(10) (#185)
3130120
$15,74 Unit Price incl. VAT
19
O-RING
3130239
Not Available
20
NIPPLE
3130573
$68,24 Unit Price incl. VAT
21
FUEL LINE 5 FT.
8450045153
8450123-153
$157,49 Unit Price incl. VAT
22
PLUG TRAP
5431893
$26,24 Unit Price incl. VAT
23
CLAMP HOSE(10)
7080544
Not Available
24
CLAMP HOSE
7080534
$3,14 Unit Price incl. VAT
25
ASM. SCREW AND WASHER
3130025
$6,29 Unit Price incl. VAT
26
JET PILOT #35(10)
3130066
$18,89 Unit Price incl. VAT
27
SPRING AIR ADJUST
3130012
$18,89 Unit Price incl. VAT
28
SCREW AIR
3130011
$36,74 Unit Price incl. VAT
29
SCREW THROTTLE STOP
3130009
$36,74 Unit Price incl. VAT
30
SPRING THROTTLE ADJUSTER
3130010
$18,89 Unit Price incl. VAT
31
HOSE-POLY CLEAR 3/16 OD 1/8 ID
8360009600
$83,99 Unit Price incl. VAT
32
ASM. PLUNGER
3130328
$68,24 Unit Price incl. VAT
33
SPRING PLUNGER
3130006
3131764
$18,89 Unit Price incl. VAT
34
HOLDER GUIDE
3130199
$52,49 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
