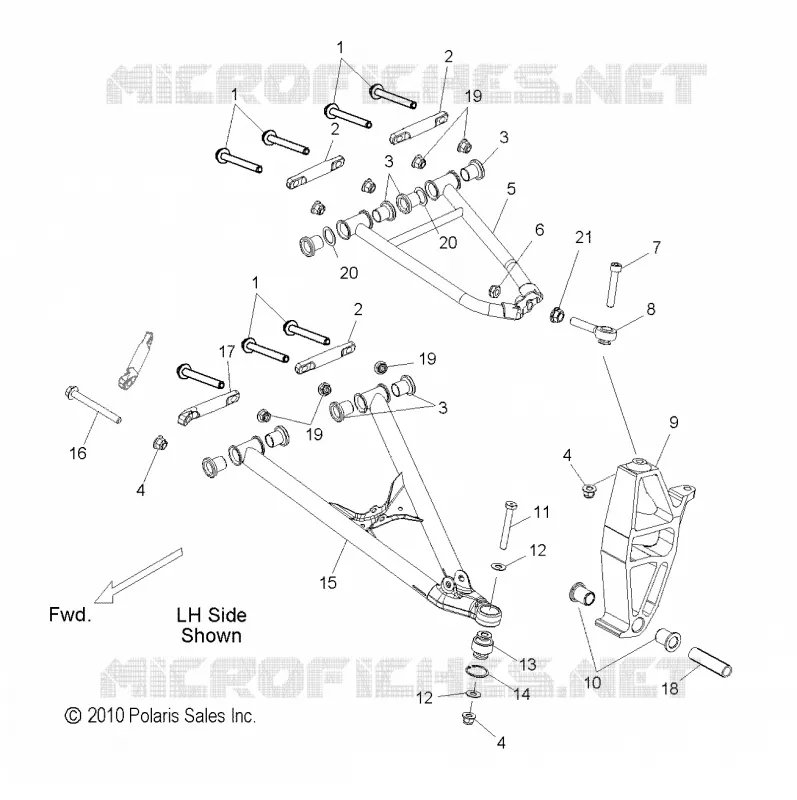

FRONT WISHBONES FOR 550 VOYAGEUR 155 FROM 2017

FRONT WISHBONES

1

STUD

7519204

$36,74 Unit Price incl. VAT

2

SHAFT PIVOT

5137700

$68,24 Unit Price incl. VAT

3

BUSHING PIVOT

5437539

$4,19 Unit Price incl. VAT

4

NUT-M10X1.5 HFN NYLOC ZOD

7547423

$7,34 Unit Price incl. VAT

5

KIT UPPER CONTROL ARM LH BLACK [INCL. 2-4 6 8 21]

2204930067

$230,99 Unit Price incl. VAT

5

KIT UPPER CONTROL ARM RH BLACK [INCL. 2-4 6 8 21]

2204931067

$246,74 Unit Price incl. VAT

6

NUT-HEX-M12X1.5 8 ZOD NYL

7547464

$6,29 Unit Price incl. VAT

7

SCR-SH-M10X1.5X45 12.9 ZFK

7519246

$7,34 Unit Price incl. VAT

8

ROD END-M12X2.812 30Ã¯Â¿Â½

7061178

$89,24 Unit Price incl. VAT

9

ASM. SPINDLE RH [INCL. 13]

1824145

$351,74 Unit Price incl. VAT

9

ASM. SPINDLE LH [INCL. 13]

1824144

$351,74 Unit Price incl. VAT

10

BUSHING SKI PIVOT

5438460

$27,29 Unit Price incl. VAT

11

SCREW M10x75 HCS

7519015

$10,49 Unit Price incl. VAT

12

WASHER

7555806

$1,56 Unit Price incl. VAT

13

KIT SPHERICAL BEARING LOWER

2204229

$54,59 Unit Price incl. VAT

14

RING RETAINING

7710539

$4,19 Unit Price incl. VAT

15

KIT LOWER CONTROL ARM RH BLACK [INCL. 2-4 13 14 17]

2204423067

$451,49 Unit Price incl. VAT

15

KIT LOWER CONTROL ARM LH BLACK [INCL. 2-4 13 14 17]

2204422067

Not Available

16

SCR-M10X1.5X95 HX FLG 10.9 ZOD

7518917

$9,44 Unit Price incl. VAT

17

SHAFT PIVOT LOWER CONTROL ARM FRONT

5137701

$73,49 Unit Price incl. VAT

18

BUSHING

5136910

$13,64 Unit Price incl. VAT

19

NUT- M8X1.25 FLG NYLOC-OLIVE D

7547332

$7,34 Unit Price incl. VAT

20

WASHER SPRING

7571605

$11,54 Unit Price incl. VAT

21

NUT-HXFL M12X1.5 ZOD

7547490

$7,34 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
