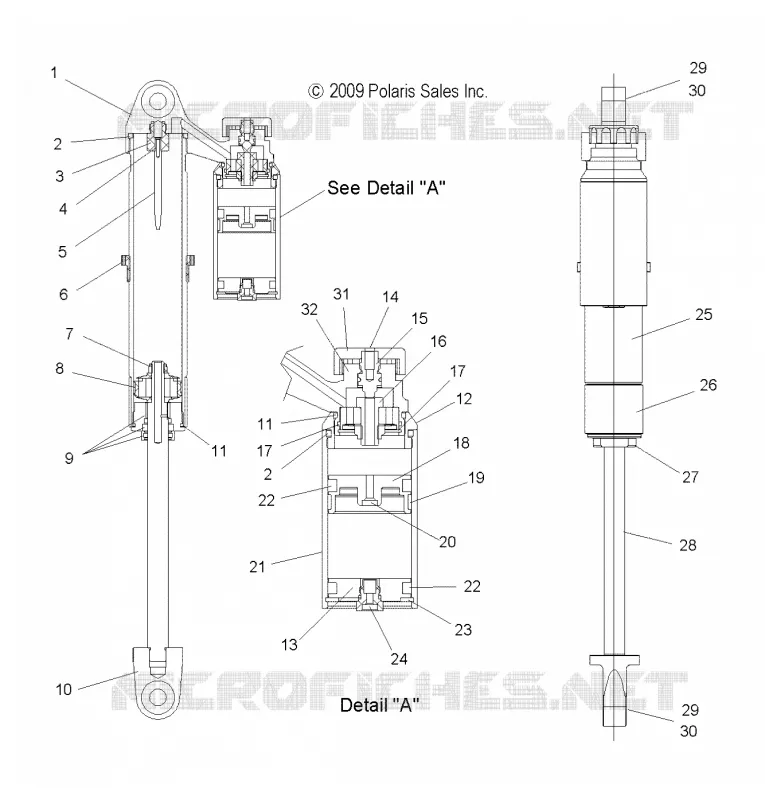

IFS SHOCK, INTERNAL COMPONENTS (7043534) FOR 800 DRAGON SWITCHBACK FROM 2010

IFS SHOCK, INTERNAL COMPONENTS (7043534)

-

Shock IFS Walker Evans

7043534

$904,04 Unit Price incl. VAT

1

Loop Body Piggyback

1800351

Not Available

2

O-RING BODY LOOP

1800030

$3,66 Unit Price incl. VAT

3

BOLT NEEDLE

1800302

$23,09 Unit Price incl. VAT

4

SCREW BLEED W/O-RING

1800074

$7,34 Unit Price incl. VAT

5

Needle

1800134

$47,24 Unit Price incl. VAT

6

RETAINER SPRING

1800046

$68,24 Unit Price incl. VAT

7

NUT CRIMP

1800031

$7,34 Unit Price incl. VAT

8

PISTON CONVEX

1800001

$246,74 Unit Price incl. VAT

9

SEAL U-CUP

1800323

$52,49 Unit Price incl. VAT

9

WIPER D-TYPE

1800322

$62,99 Unit Price incl. VAT

9

O-RING SHAFT SEAL HEAD

1800037

$3,14 Unit Price incl. VAT

9

BUSHING SHAFT

1800038

$24,14 Unit Price incl. VAT

10

Eyelet w/O-Ring

1800342

Not Available

11

O-RING 2-125

1800027

$3,66 Unit Price incl. VAT

12

Adapter Reservoir

1800311

Not Available

13

Cap End

1800356

$33,06 Unit Price incl. VAT

14

SCREW BTN HD

1800357

$6,29 Unit Price incl. VAT

15

O-RING STUD

1800215

$14,16 Unit Price incl. VAT

16

BOLT CLICKER

1800354

$23,09 Unit Price incl. VAT

17

PISTON CLICKER

1800353

$173,24 Unit Price incl. VAT

17

RING SNAP CLICKER

1800359

$6,29 Unit Price incl. VAT

17

O-RING CLICKER HOUSING

1800358

$2,09 Unit Price incl. VAT

18

PISTON RESERVOIR

1800355

$152,24 Unit Price incl. VAT

19

BAND PISTON

1800185

$83,99 Unit Price incl. VAT

20

Screw Bleed

1800211

$3,98 Unit Price incl. VAT

20

O-RING BLEED SCREW

1800210

$3,14 Unit Price incl. VAT

21

BODY-RESERVOIR 3.75L

1800310

$141,74 Unit Price incl. VAT

22

O-RING

1800184

$10,49 Unit Price incl. VAT

23

SNAP RING 1.75 ID

1800159

$10,49 Unit Price incl. VAT

24

SCREW BUTTON HEAD

1800109

$6,29 Unit Price incl. VAT

25

Body Shock

1800341

Not Available

26

WEAR SLEEVE

1800047

$73,49 Unit Price incl. VAT

27

Asm. Shaft Seal Housing

1800131

Not Available

28

Shaft

1800303

Not Available

29

SNAP RING END BEARING

1800041

$15,74 Unit Price incl. VAT

30

BEARING END

1800040

$152,24 Unit Price incl. VAT

31

Knob

1800284

Not Available

32

SPRING-D-TENT

1800128

$20,99 Unit Price incl. VAT

32

BALL D-TENT

1800127

$12,59 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
