1
Engine displacement
925
2
Year
2019
3
Trim
RZR XP 4 TURBO S
4
Parts Catalog
ENGINE, AIR INTAKE SYSTEM
5
Parts Diagram
Parts Catalog
ENGINE, AIR INTAKE MANIFOLD
by
CAM CHAIN AND TENSIONER

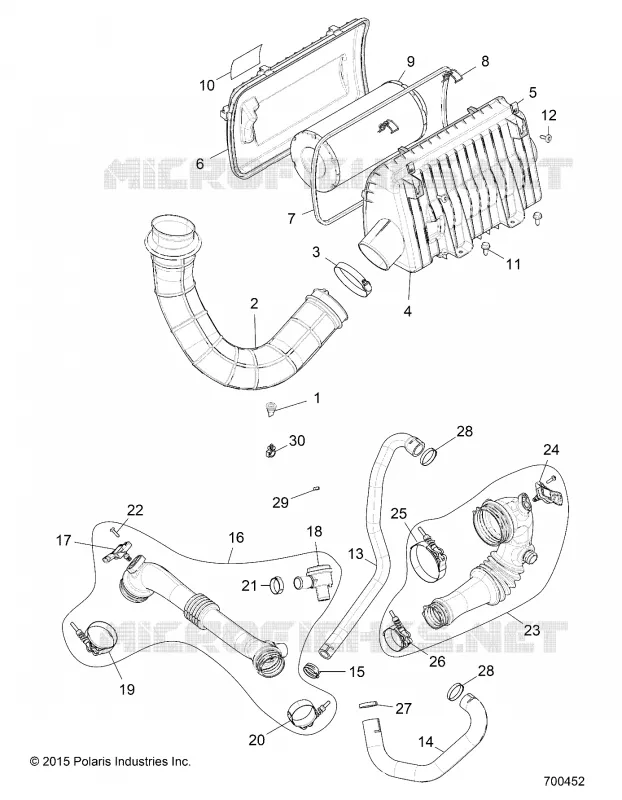

ENGINE, AIR INTAKE SYSTEM
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
28
29
30
1
PLUG-DRAIN
5414472
$10,49 Unit Price incl. VAT
2
HOSE-AIRBOX IN
5416487
$204,74 Unit Price incl. VAT
3
CLAMP HOSE 3.75 SS
7080907
$20,99 Unit Price incl. VAT
4
ASM. AIRBOX HOUSING [INCL. 5]
1240747
$173,24 Unit Price incl. VAT
5
NUT-M6-1.0 U-TYPE (2.5-3.8)
7547674
$2,09 Unit Price incl. VAT
6
ASM. AIRBOX COVER [INCL. 7 8]
1240748
$141,74 Unit Price incl. VAT
7
SEAL AIRBOX
5813929
$52,49 Unit Price incl. VAT
8
CLIP AIRBOX
7081872
$10,49 Unit Price incl. VAT
9
ASM-FILTER
1241084
$57,63 Unit Price incl. VAT
10
DECAL-CAUT.AIR BOX
7182652
Not Available
11
SCR-TFHFL-M8X1.25X20 CHS ZOD
7518555
$4,19 Unit Price incl. VAT
12
SCR-TXTH-M6X1.0X25 ZFB
7519650
$7,34 Unit Price incl. VAT
13
HOSE-VENT ENG
5416620
$104,99 Unit Price incl. VAT
14
HOSE-VENT BOV
5415474
$178,49 Unit Price incl. VAT
15
SPRINGBAND-CLAMP 29/12 BLK
7080842
$13,64 Unit Price incl. VAT
16
ASM-DUCT CHARGE AIR [INCL. 17-21 1 QTY OF 22]
1240931
1244740
$209,99 Unit Price incl. VAT
17
SENSOR-TMAP 3BAR
2413095
$167,99 Unit Price incl. VAT
18
VALVE-DUMP TURBO
3022784
3024035
$83,99 Unit Price incl. VAT
19
CLAMP-HOSE T-BOLT 66.3 DIA
7082091
$68,24 Unit Price incl. VAT
20
CLAMP-HOSE T-BOLT 56 DIA
7082092
7082896
$25,19 Unit Price incl. VAT
21
CLAMP-OETIKER 16704932-32
7082095
$10,49 Unit Price incl. VAT
22
SCREW-PLASTITE 5.0MMX20-PN-T25
7519952
$7,34 Unit Price incl. VAT
23
ASM-DUCT INTAKE AIR [INCL. 24-26 1 QTY OF 22]
1240933
$188,99 Unit Price incl. VAT
24
SENSOR-TMAP DSS3-TF
2411528
$178,49 Unit Price incl. VAT
25
CLAMP-HOSE T-BOLT 87.3 DIA
7082093
$57,74 Unit Price incl. VAT
26
CLAMP-HOSE T-BOLT 52.3 DIA
7082094
$57,74 Unit Price incl. VAT
27
CLAMP-OETIKER 16704965-36.1
7082107
$9,44 Unit Price incl. VAT
28
CLAMP-OETIKER 16702031-38.5
7082108
$10,49 Unit Price incl. VAT
29
CLAMP-OETIKER 16700005-10.0
7082109
$7,34 Unit Price incl. VAT
30
CLIP ROUTING .472 B.D. HINGED
7670116
$10,49 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
