ELECTRICAL, WIRE HARNESSES
5

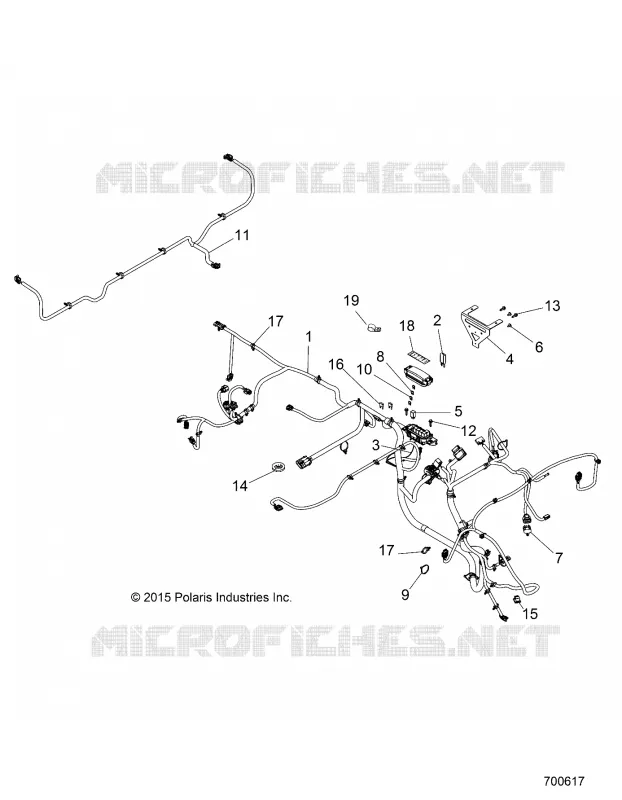

Parts Diagram
Parts Catalog
ELECTRICAL, IGNITION
by
CAM CHAIN AND SPROCKET
ELECTRICAL, WIRE HARNESSES
17
17
18
19
1
HARNESS CHASSIS 570 ADC BRAKE [INCL. 2 3 5 7 8 10 16-18 ALL KITS][H57AR]
2413288
$1 057,13 Unit Price incl. VAT
1
HARNESS CHASSIS 570 EPA [INCL. 2 3 5 7 8 10 17 18][N1][2N1]
2412699
$2 346,74 Unit Price incl. VAT
1
HARNESS CHASSIS 570 EPS [INCL. 2 3 5 7 8 10 16-18 ALL KITS][E57A9]
2413289
$1 611,74 Unit Price incl. VAT
2
BREAKER-CIRCUIT 20 AMP
4011372
$83,99 Unit Price incl. VAT
3
KIT FUSIBLE LINK 1.0 MM
2202670
$68,24 Unit Price incl. VAT
4
BRACKET MOUNT FUSE BLOCK BLACK
5256408329
$31,49 Unit Price incl. VAT
5
RELAY-SPST SERIES 303 SEALED
4011283
4016819
$68,24 Unit Price incl. VAT
6
SCR-10-24X1/2 PHTXTRIRD SEMS-Y
7512084
$2,09 Unit Price incl. VAT
7
COVER - DIAGNOSTIC W/ CLIP
4012170
$16,79 Unit Price incl. VAT
8
FUSE-IGNITION 10 AMP
2434016
$10,49 Unit Price incl. VAT
9
CABLE-TIE 10-102MM WEATH.-RES.
7080761
$5,24 Unit Price incl. VAT
10
FUSE-PARK 20 AMP
2434017
4012811
$15,74 Unit Price incl. VAT
11
HARNESS BOX
2412702
$125,99 Unit Price incl. VAT
12
SCR-TXPHM6X1.0X25 8.8 RIE
7518535
$7,34 Unit Price incl. VAT
13
SCR-M6X1.0X20 HXHD FLG TDFM BK
7518529
$2,09 Unit Price incl. VAT
14
GROMMET ELECTRICAL CAB
5414440
$13,64 Unit Price incl. VAT
15
CLIP WIRE ADHESIVE BACK 1/2#
7670134
$17,84 Unit Price incl. VAT
16
FUSE-5A MINI BLADE
4011652
$20,99 Unit Price incl. VAT
17
CLIP-ROUTING
7081496
$9,44 Unit Price incl. VAT
18
DECAL FUSE/RELAY BLOCK
7180388
Not Available
19
CLAMP-RUBBER COATED .75# ID
7081116
$13,64 Unit Price incl. VAT
