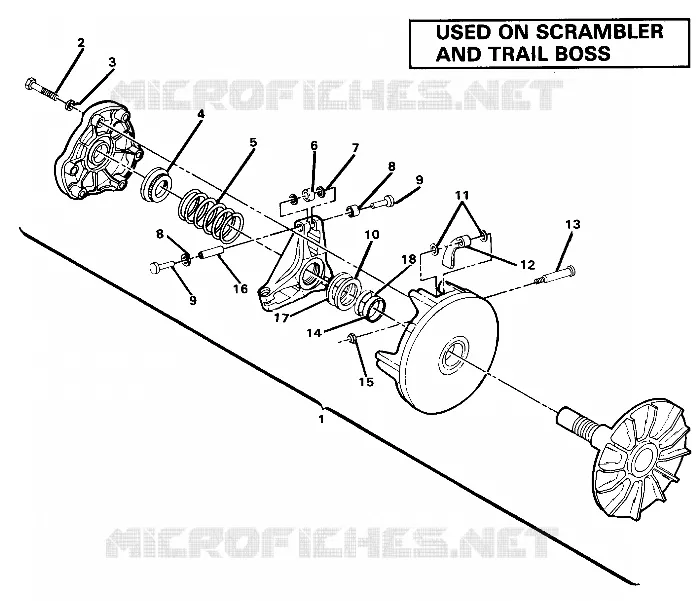

DRIVE CLUTCH ASSEMBLY. (4911701170035A) FOR TRAIL BOSS

REAR WHEEL DRIVE ASSEMBLY (4911701170028A)

DRIVEN CLUTCH ASSEMBLY. (4911701170036A)

WASHER(10)

7555764

Not Available

CLUTCH DRIVE ATV Substituted by 1321497

1321476

1321976

$1 081,49 Unit Price incl. VAT

BOLT (10)

7512265

$7,34 Unit Price incl. VAT

Nut Jam

5020468

$68,24 Unit Price incl. VAT

HUB WHEEL Substituted by 2200341

5130664

$173,24 Unit Price incl. VAT

WASHER SPRING LOCK

7552801

$3,14 Unit Price incl. VAT

BUSHING CLUTCH COVER

5010189

Not Available

TIRE R(24X11-10)

5410466

Not Available

Nut

7542714

$3,14 Unit Price incl. VAT

SPRING CLUTCH

7041157

$89,24 Unit Price incl. VAT

ASM-ROLLER AND BUSHING

1321457

$73,49 Unit Price incl. VAT

Washer Flat

7555745

Not Available

WASHER Substituted by 5430945

5430702

5438247

$3,14 Unit Price incl. VAT

NUT CASTLE(10)

7543005

Not Available

SEAL O RING (10)

5410374

$2,93 Unit Price incl. VAT

PIN-COTTER 1/8X1 1/2-Y

7661404

$9,44 Unit Price incl. VAT

COVER DUST HUB Substituted by 5411164

5410404

5413427

$52,49 Unit Price incl. VAT

BUTTON GUIDE(10)

5430768

$19,94 Unit Price incl. VAT

VALVE-RIM

1525017

$12,59 Unit Price incl. VAT

SPACER-1.350 X 1.750 X .050-Y

5210754

$6,29 Unit Price incl. VAT

WASHER(10)

7555744

Not Available

CONNECTOR LINK

3225024

$47,24 Unit Price incl. VAT

WT. CLUTCH 16(6)

5630279

$62,99 Unit Price incl. VAT

CHAIN DRIVE 86P Substituted by 3224056-086 (Includes Connector)

3224046

3221193-086

$272,99 Unit Price incl. VAT

SCR-SH-1/4X2 SAE4037 BLKOX&OIL

7512266

$5,76 Unit Price incl. VAT

BOLT(10)

7515488

Not Available

BEARING SLEEVE

5430748

Not Available

SPROCKET REAR 38T Substituted by 3222065

3222046

$178,49 Unit Price incl. VAT

NUT-10-24-FLEX LOC-Z

7541906

$6,29 Unit Price incl. VAT

HUB SPROCKET Substituted by 1520170

5630320

Not Available

O RING 1 5/16(10)

5410415

Not Available

PIN SPIDER Substituted by 5020795

5020436

$41,99 Unit Price incl. VAT

TOOL CLUTCH OFFSET [No Longer Available]

2870654

Not Available

SPACER-1.350 X 1.750 X .020-Y

5210752

$3,14 Unit Price incl. VAT

SEAL REAR AXLE

3610013

Not Available

INSERT MOVEABLE

5010218

$25,08 Unit Price incl. VAT

BEARING BALL

3515501

$47,24 Unit Price incl. VAT

TUBE BEARING SPACER

5010204

Not Available

FITTING LUB W/BALL

7080306

$5,76 Unit Price incl. VAT

HOUSING AXLE

5130663

Not Available

SPACER BEARING

5010206

$68,24 Unit Price incl. VAT

Ring Retaining

7710405

$9,44 Unit Price incl. VAT

AXLE REAR

5020504

$307,64 Unit Price incl. VAT

RIM REAR PRIMED Substituted by 1520114

1520128

Not Available

Screw

7512673

$5,76 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
