DRIVE TRAIN, REAR GEARCASE INTERNALS FOR SPORTSMAN XP 1000 FROM 2017

DRIVE TRAIN, PROP SHAFT, FRONT

ELECTRICAL, IGNITION SYSTEM

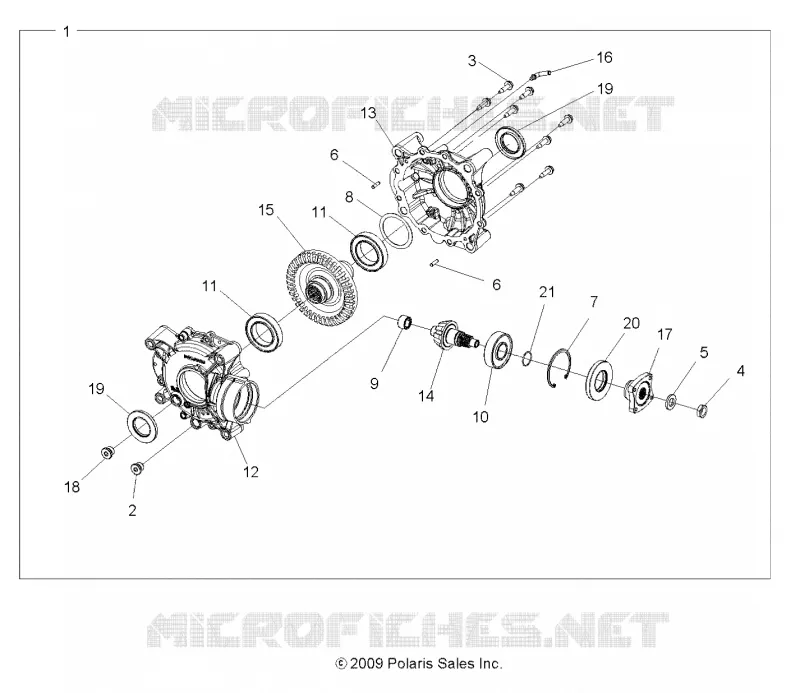

DRIVE TRAIN, REAR GEARCASE INTERNALS

1

ASM-REAR DRIVE 113.4MM [INCL. ALL]

1332802

$936,06 Unit Price incl. VAT

2

PLUG-SOCKET HEAD W/MAG M18X1.5

3234756

$57,74 Unit Price incl. VAT

3

SCREW HEX FLANGE HEAD M8 X 1.25 X 30

3234898

$17,84 Unit Price incl. VAT

4

NUT HEX M16 X 2.0

3234776

$19,94 Unit Price incl. VAT

5

CUP WASHER LOCKING 17 X 30

3234777

$78,74 Unit Price incl. VAT

6

PIN DOWEL 6 X 20

3234330

$13,64 Unit Price incl. VAT

7

RING RETAINING BEVELED INTERNAL 2.835

3234158

$41,99 Unit Price incl. VAT

8

SHIM 3.1 X 2.5

3233581

$73,49 Unit Price incl. VAT

9

BEARING NEEDLE DRAWN SHELL .75 X 1.0 X 0.625

3234799

$27,29 Unit Price incl. VAT

10

BEARING BALL 6306 STD 30X72X19

3233714

$54,59 Unit Price incl. VAT

11

BEARING BALL 6010 C3 50 X 80 X 10

3233268

$88,19 Unit Price incl. VAT

12

CASE MAIN

3234926

$440,99 Unit Price incl. VAT

13

SUBASSEMBLY COVER LH [INCL. 6]

3234937

$249,89 Unit Price incl. VAT

14

GEAR-37T STRAIGHT BEVEL

3234798

$309,74 Unit Price incl. VAT

15

SHAFT-PINION 10T STRAIGHTBEVEL

3234792

$2 383,49 Unit Price incl. VAT

16

TUBE VENT 90 -1/4 INCH HOSE

3234230

$19,94 Unit Price incl. VAT

17

COUPLER

3234782

$188,99 Unit Price incl. VAT

18

PLUG SOCKET HEAD

3234755

$52,49 Unit Price incl. VAT

19

SEAL TRIPLE LIP VITON HELIX 40X70X7

3235052

$57,74 Unit Price incl. VAT

20

SEAL TRIPLE LIP

3235051

$57,74 Unit Price incl. VAT

21

O-RING 2-023 NITRILE

3234785

$17,84 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
