SUSPENSION, CONTROL ARMS, SHOCK MNTG, AND SPINDLE FOR 850 RMK KHAOS 155 FROM 2021

OIL BOTTLE ASM.

ENGINE, REED VALVE AND THROTTLE BODY ADAPTOR

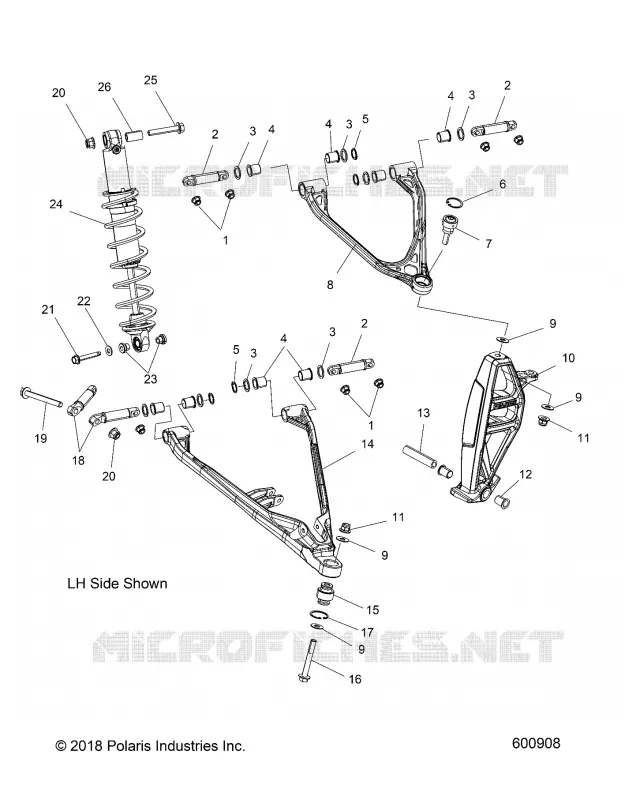

SUSPENSION, CONTROL ARMS, SHOCK MNTG, AND SPINDLE

1

NUT- M8X1.25 FLG NYLOC-OLIVE D

7547332

$7,34 Unit Price incl. VAT

2

SHAFT PIVOT GROOVED

5140556

$52,49 Unit Price incl. VAT

3

WASHER

7556959

$1,56 Unit Price incl. VAT

4

BUSHING PIVOT SHORT

5454428

$7,34 Unit Price incl. VAT

5

RING RETAINING 18MM

7710786

$3,14 Unit Price incl. VAT

6

RING RETAINING

7710642

$4,19 Unit Price incl. VAT

7

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

8

ASM-UPPER CONTROL ARM NRW LH NATURAL [INCL. 2-7][COLOR OPT.]

1824654309

$335,99 Unit Price incl. VAT

8

ASM-UPPER CONTROL ARM NRW RH BLK [INCL. 2-7][COLOR OPT.]

1824655067

$335,99 Unit Price incl. VAT

8

ASM-UPPER CONTROL ARM NRW RH NATURAL [INCL. 2-7][COLOR OPT.]

1824655309

$335,99 Unit Price incl. VAT

8

ASM-UPPER CONTROL ARM NRW LH BLK [INCL. 2-7][COLOR OPT.]

1824654067

$335,99 Unit Price incl. VAT

9

WASHER

7556545

$6,29 Unit Price incl. VAT

10

ASM-SPINDLE RMK FORG RH POLBLU [INCL. 12][POLARIS BLUE COLOR OPT.]

1824650751

$456,74 Unit Price incl. VAT

10

ASM-SPINDLE RMK FORG RH [INCL. 12][COLOR OPT.]

1824650

$419,99 Unit Price incl. VAT

10

ASM-SPINDLE RMK FORG RH BLACK [INCL. 12][COLOR OPT.]

1824650067

$419,99 Unit Price incl. VAT

10

ASM-SPINDLE RMK FORG LH LIME SQUEEZE [INCL. 12][COLOR OPT.]

1824649630

$419,99 Unit Price incl. VAT

10

ASM-SPINDLE RMK FORG LH BLK [INCL. 12][COLOR OPT.]

1824649067

$419,99 Unit Price incl. VAT

10

ASM-SPINDLE RMK FORG LH [INCL. 12][COLOR OPT.]

1824649

$419,99 Unit Price incl. VAT

10

ASM-SPINDLE RMK FORG LH POLBLU [INCL. 12][POLARIS BLUE COLOR OPT.]

1824649751

$456,74 Unit Price incl. VAT

10

ASM-SPINDLE RMK FORG RH GHOST GRAY [INCL. 12][SC SELECT OPT]

1824650728

$419,99 Unit Price incl. VAT

10

ASM-SPINDLE RMK FORG RH LIME SQZE [INCL. 12][COLOR OPT.]

1824650630

$419,99 Unit Price incl. VAT

10

ASM-SPINDLE RMK FORG LH GHOST GRAY [INCL. 12][SC SELECT OPT]

1824649728

$419,99 Unit Price incl. VAT

11

NUT-M10X1.25 FLG NYLOC-OLIVE D

7547333

$3,14 Unit Price incl. VAT

12

BUSHING SKI PIVOT

5438460

$27,29 Unit Price incl. VAT

13

BUSHING

5136910

$13,64 Unit Price incl. VAT

14

ASM-LOWER CONTROL ARM NRW RH BLK [INCL. 2-5 15 17 18][COLOR OPT.]

1824653067

$451,49 Unit Price incl. VAT

14

ASM-LOWER CONTROL ARM NRW LH NATURAL [INCL. 2-5 15 17 18][COLOR OPT.]

1824652309

$351,74 Unit Price incl. VAT

14

ASM-LOWER CONTROL ARM NRW LH BLK [INCL. 2-5 15 17 18][COLOR OPT.]

1824652067

$451,49 Unit Price incl. VAT

14

ASM-LOWER CONTROL ARM NRW RH NATURAL [INCL. 2-5 15 17 18][COLOR OPT.]

1824653309

$351,74 Unit Price incl. VAT

15

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

16

BOLT-M10X1.25X85MM HXFLG OLV D

7520152

$5,99 Unit Price incl. VAT

17

RING RETAINING

7710539

$4,19 Unit Price incl. VAT

18

SHAFT PIVOT LCA FRONT GROOVED

5140557

$52,49 Unit Price incl. VAT

19

SCR-M10X1.5X95 HX FLG 10.9 ZOD

7518917

$9,44 Unit Price incl. VAT

20

NUT-M10X1.5 HFN NYLOC ZOD

7547423

$7,34 Unit Price incl. VAT

21

SCR-HXFL-M8X1.25X50 DP ZODP30

7519245

$7,34 Unit Price incl. VAT

22

WASHER FLAT

7556524

$1,56 Unit Price incl. VAT

23

SPACER ALUM.

5138124

$8,39 Unit Price incl. VAT

24

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

25

SCREW

7518941

$7,34 Unit Price incl. VAT

26

BUSHING

5137360

$7,34 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
