1
Engine displacement
0
2
Year
1996
3
Trim
STORM RMK - 0965982
4
Parts Catalog

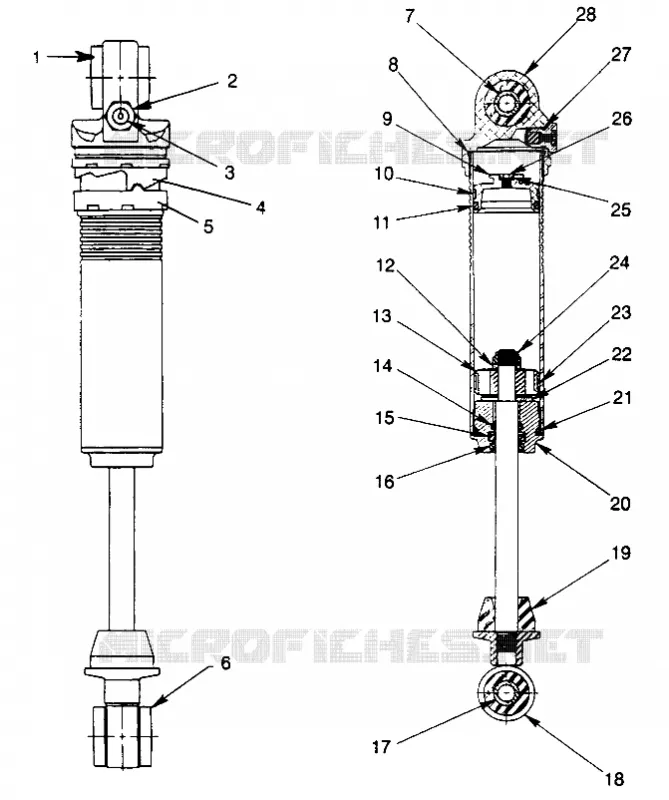

FOX SHOCK
5
Parts Diagram
Parts Catalog
REAR TORQUE ARM STORM 0965782, STORM SKS 0965582, EURO STORM E965782, EURO (4931593159C004)
by
FOX SHOCK
FOX SHOCK
1
BUSHING SHOCK
5431727
Not Available
2
VALVE ASM AIR
1500014
$115,49 Unit Price incl. VAT
3
SCREW
1500019
$11,54 Unit Price incl. VAT
4
CAM SHOCK
5630492
Not Available
5
RETAINER CAM
5630491
Not Available
6
BUSHING SHOCK .220 Substituted by 1500137 (SP)
5431540
Not Available
7
BUSHING (1.34 IN.)
5020612
Not Available
8
O-RING-129
1500108
$15,74 Unit Price incl. VAT
9
SCREW
1500011
$101,84 Unit Price incl. VAT
10
RING PISTON FLOATING FOX (Floating)
1500006
$34,64 Unit Price incl. VAT
11
O-RING ENDCAP FOX (10)
1500003
$15,74 Unit Price incl. VAT
12
PLATE BACK UP
1500015
$10,49 Unit Price incl. VAT
13
PISTON
1500010
Not Available
14
O-RING INNER (10) (Inner)
1500021
$15,74 Unit Price incl. VAT
15
WIPER INNER Substituted by 1500266 (Inner)
1500025
1500266
$52,49 Unit Price incl. VAT
16
WIPER CLR OUTER (Outer)
1500024
5433298
$23,09 Unit Price incl. VAT
17
BUSHING (1.16 IN.)
5020613
Not Available
18
EYELET
1500013
$141,74 Unit Price incl. VAT
19
BUMPER
1500066
Not Available
20
BEARING Substituted by 1500186
1500009
Not Available
21
O-RING (10).103W-1.299ID (Outer)
1500020
$15,74 Unit Price incl. VAT
22
PLATE TOP OUT
1500017
$47,24 Unit Price incl. VAT
23
DAMPER PISTONRING FOX
1500002
$54,59 Unit Price incl. VAT
24
NUT-LOCK
1500016
$23,09 Unit Price incl. VAT
25
O-RING DRUM OUTER
1500022
Not Available
26
SCREW
1500018
Not Available
27
O-RING OUTER
1500023
Not Available
28
SHOCK GAS IFS IFP CAM WHT.
7041474
Not Available
28
CAP BODY
1500073
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
