1
Engine displacement
500
2
Year
2004
3
Trim
A04JD50AA ATP 500 4X4 - A04JD50AA/AB/CA
4
Parts Catalog

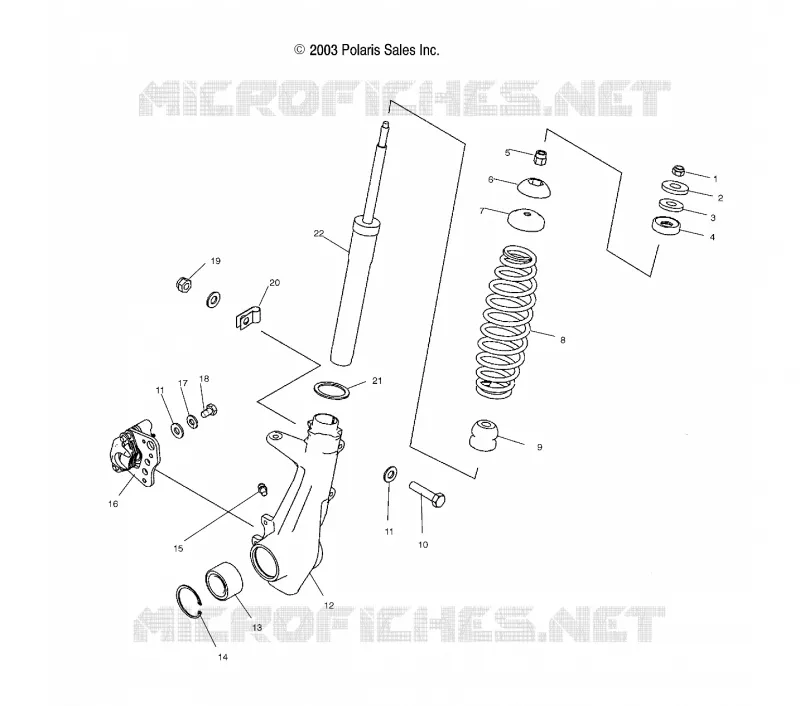

FRONT STRUT
5
Parts Diagram
Parts Catalog
FRONT WHEEL
by
HANDLEBAR HEADLIGHT POD
FRONT STRUT
1
2
3
4
5
6
7
8
8
8
8
9
10
11
11
12
12
13
14
15
16
17
18
19
20
21
22
1
1
1
1
1
1
2
3
4
4
5
6
6
7
8
8
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
1
NUT-1/2-20 NYLOK THIN HT-Y
7547104
$2,09 Unit Price incl. VAT
2
WSHR-.500X1.50-12GA-Y
7555749
$2,09 Unit Price incl. VAT
3
SPACER-RUBBER
5810291
$7,34 Unit Price incl. VAT
4
PIVOT-BALL TOP DELRIN
5432872
$19,94 Unit Price incl. VAT
5
SPACER-1/2-20 STRUT
5132062
$36,74 Unit Price incl. VAT
6
PIVOT-BALL BOTTOM DELRIN
5432871
$19,94 Unit Price incl. VAT
7
RETAINER-SPRING STRUT
5243364
$36,74 Unit Price incl. VAT
8
Spring Coil Silver (If built before 10/01/03)
7041375385
7042312-067
$120,74 Unit Price incl. VAT
8
Spring Coil Silver (If built after 10/01/03)
7042312385
7042312-067
$120,74 Unit Price incl. VAT
8
Spring Compression
7041375067
7042312-067
$120,74 Unit Price incl. VAT
8
Spring Compression Black [If built after 10/01/03]
7042312067
$120,74 Unit Price incl. VAT
9
BUMPER-MCU 17.80MM ID (After 11/2/98)
5411608
5412665
$12,59 Unit Price incl. VAT
10
SCR-HH-5/16-18X2.25 GR5 ZY3
7515339
$9,44 Unit Price incl. VAT
11
WASHER-.344X.688X.063 FL-Y
7558402
$1,56 Unit Price incl. VAT
12
Hubstrut LH
5132301
1822653
$572,24 Unit Price incl. VAT
12
Hubstrut RH
5132302
Not Available
13
Bearing Hubstrut
3514342
3514634
$73,49 Unit Price incl. VAT
14
RING-RETAINING 2.500 INTERNAL
7710507
$4,19 Unit Price incl. VAT
15
FITTING LUB W/BALL
7080306
$5,76 Unit Price incl. VAT
16
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
17
WASHER-5/16 SPRING LK-MED-Y
7552901
$2,09 Unit Price incl. VAT
18
SCREW CAP(10) [CALIPER MOUNTING]
7512365
$2,09 Unit Price incl. VAT
19
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
20
CLAMP-CABLE
7080367
$4,19 Unit Price incl. VAT
21
WASHER-2.06X2.62X.105-Y [BJ/BK/BX/B9]
5211115
$7,34 Unit Price incl. VAT
22
Strut Front
7041761
$283,49 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
