1
Engine displacement
325
2
Year
2001
3
Trim
MAGNUM 325 2X4 - A01CB32AA
4
Parts Catalog
GEAR SELECTOR
5
Parts Diagram
Parts Catalog
CLUTCH COVER
by
MAIN GEARCASE

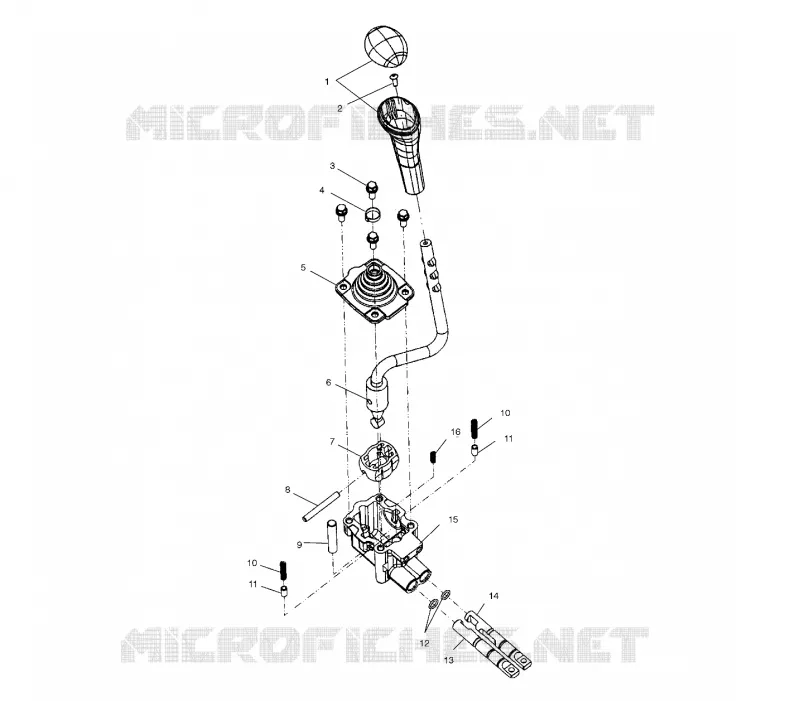

GEAR SELECTOR
-
SELECTOR ASM GEAR (Incl. 1-16)
1341271
Not Available
1
KNOB ASM HI/LO/REV. Substituted by 3233195-070
3233195
$83,99 Unit Price incl. VAT
2
SCR-#10-24X1/2PH/TORX-TRIRD-Y
7512024
$9,44 Unit Price incl. VAT
3
Screw
3233649
Not Available
4
STRAP WIRE
3233131
$18,89 Unit Price incl. VAT
5
Cover Gear Selector Boot
3233648
$57,74 Unit Price incl. VAT
6
SUBASM-HANDLE GEAR SELECTOR
3233658
Not Available
7
Sphere Plastic
3233646
$26,24 Unit Price incl. VAT
8
Pin Groove
3233754
$14,69 Unit Price incl. VAT
9
Pin Dowel
3233644
$12,59 Unit Price incl. VAT
10
Spring Detent
3233642
$25,19 Unit Price incl. VAT
11
BULLET DETENT
3233060
$104,99 Unit Price incl. VAT
12
O-RING 2-012
3233076
$11,54 Unit Price incl. VAT
13
Slide Low
3233639
Not Available
14
Slide High/Reverse
3233640
Not Available
15
Body Gear Selector
3233641
$157,49 Unit Price incl. VAT
16
Spring Centering
3233643
$89,24 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
