1
Engine displacement
500
2
Year
1996
3
Trim
500 CARB SKS - 0962564
4
Parts Catalog
CYLINDER 500 CARB 0962764, 500 CARB SKS 0962564, EUROPEAN 500 CARB SKS E96 (4931873187C012)
5
Parts Diagram
Parts Catalog
CRANKCASE 500 CARB 0962764, 500 CARB SKS 0962564, EUROPEAN 500 CARB SKS E9 (4931873187C011)
by
WATER PUMP 500 CARB 0962764, 500 CARB SKS 0962564, EUROPEAN 500 CARB SKS E (4931873187C013)

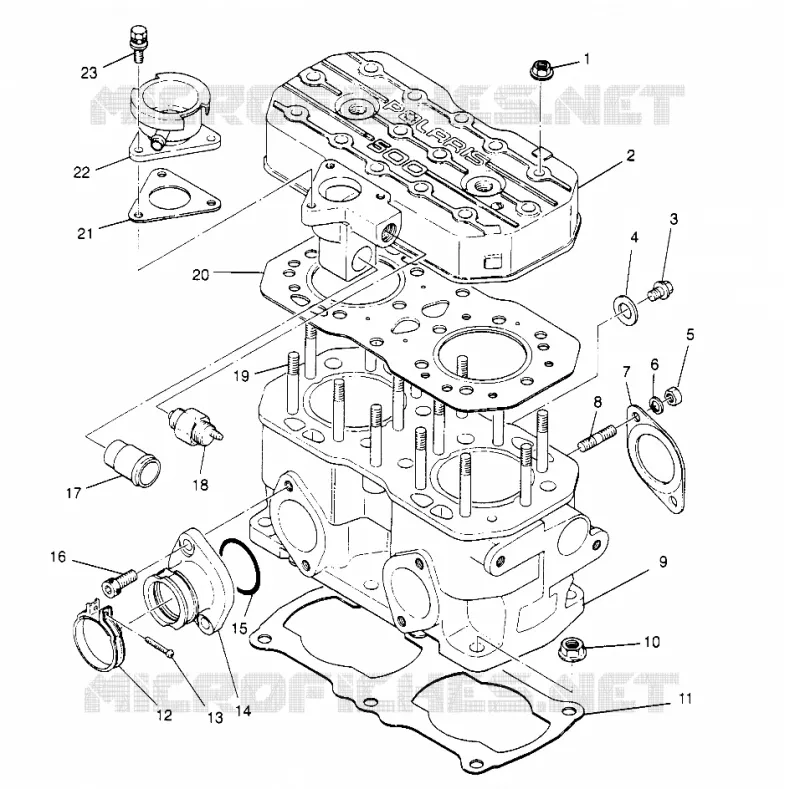

CYLINDER 500 CARB 0962764, 500 CARB SKS 0962564, EUROPEAN 500 CARB SKS E96 (4931873187C012)
1
NUT-FLANGE(10)
3082910
Not Available
2
HEAD CYLINDER (Incl. 8)
3083960
$455,69 Unit Price incl. VAT
3
PLUG
3084491
Not Available
4
GASKET ALUMINUM
3084492
$7,34 Unit Price incl. VAT
5
NUT(10)
3080285
Not Available
6
WASHER LOCK (10)
3080530
$6,29 Unit Price incl. VAT
7
GASKET EXHAUST NA(10) Substituted by 3086757 (Exhaust) NA
3084439
Not Available
8
STUD (10)
3080016
$9,23 Unit Price incl. VAT
9
CYLINDER (Incl. 2 3)
3083958
Not Available
10
NUT FLANGE
3082911
7547013
$3,14 Unit Price incl. VAT
11
GASKET BASE
3084768
$94,49 Unit Price incl. VAT
12
ASM. BAND ADAPTOR [INCL. 9]
3083166
7082340
$36,74 Unit Price incl. VAT
13
SCREW
3081497
$4,19 Unit Price incl. VAT
14
ADAPTER
3084325
Not Available
15
O-RING Substituted by 3085619
3084272
5418045
$36,74 Unit Price incl. VAT
16
BOLT SOCKET HEAD
3081330
$7,34 Unit Price incl. VAT
17
PIPE WATER (Water)
3083452
Not Available
18
SWITCH THERMAL(93 DEG.C.)
3083055
Not Available
19
STUD
3083360
Not Available
20
GASKET HEAD
3084332
Not Available
21
GASKET FILLER NECK
3083340
Not Available
22
NECK FILLER
3083398
Not Available
23
BOLT&WASHER ASM.
3083361
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
