1
Engine displacement
570
2
Year
2018
3
Trim
SPORTSMAN 570 EFI X2 EPS
4
Parts Catalog

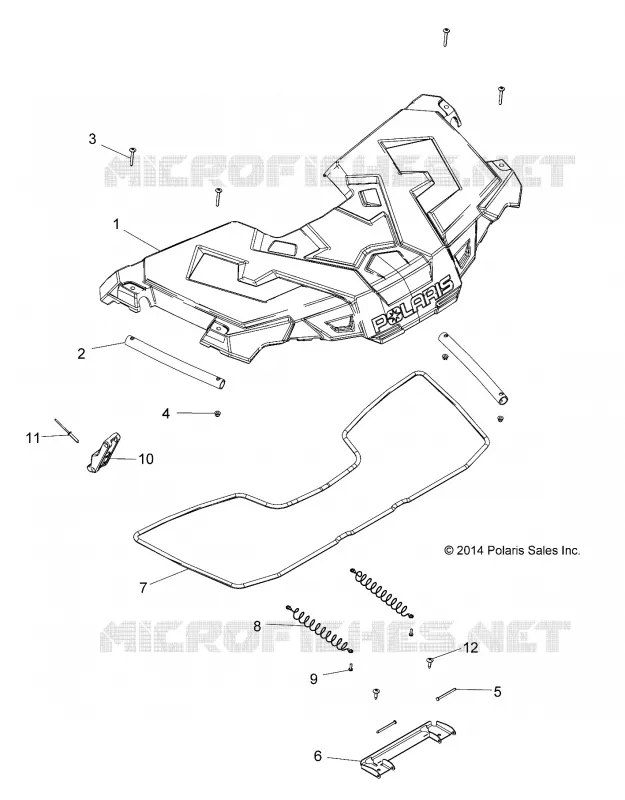

STORAGE, FRONT
5
Parts Diagram
Parts Catalog
SEAT, PASSENGER, BOTTOM
by
DRIVE TRAIN, GEAR SELECTOR
STORAGE, FRONT
1
1
2
3
4
5
6
7
8
9
10
11
12
1
PLUG-HOLE
7080398
$10,49 Unit Price incl. VAT
1
ASM-RACK FRONT W/PLUGS BLK [INCL. RACK TUBES PLUGS WARNING DECAL]
2636499070
2636440-070
$330,74 Unit Price incl. VAT
2
TUBE SUPPORT RACK FRONT MATTE BLACK
5338665458
$62,99 Unit Price incl. VAT
3
SCR-TXTH-M6X1.0X50 8.8 ZPB
7519220
$3,14 Unit Price incl. VAT
4
NUT-M6 FLANGE NYLOC
7547274
$2,09 Unit Price incl. VAT
5
PIN PIVOT RACK
4013425
$2,09 Unit Price incl. VAT
6
BRACKET PIVOT RACK BLACK
5259854329
$62,99 Unit Price incl. VAT
7
SEAL BOX CAB FRONT [CL][TO 10/14/2021 CX]
5521833
5526448
$57,74 Unit Price incl. VAT
8
CABLE BOX COVER PRE-COILED
7081741
$68,24 Unit Price incl. VAT
9
SCREW-10X5/8-HI/LO PN-T25 TRX-M
7518238
$7,34 Unit Price incl. VAT
10
LATCH RUBBER LOWER
7081927
7082654
$68,24 Unit Price incl. VAT
11
RIVET-5/32 BULBEX-B
7621334
$2,09 Unit Price incl. VAT
12
SCR-1/4-20X1.00 TR/TX-M
7517685
$3,14 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
