1
Engine displacement
700
2
Year
2002
3
Trim
700-classic-built-after-1101
4
Parts Catalog

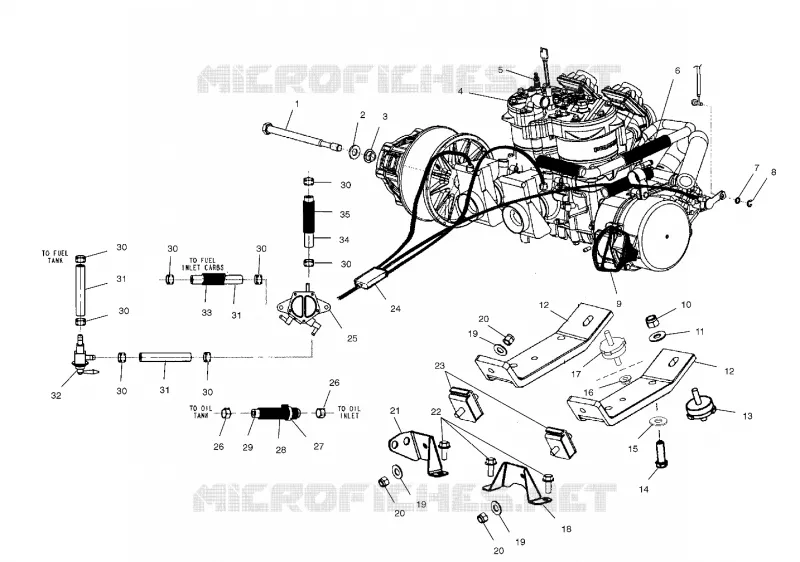

ENGINE MOUNTING
5
Parts Diagram
Parts Catalog
DRIVEN CLUTCH
by
EXHAUST
ENGINE MOUNTING
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
1
2
3
4
5
6
7
8
9
10
11
12
12
12
12
13
14
15
16
17
18
19
19
19
20
20
20
21
22
23
24
25
26
26
27
28
29
30
30
30
30
30
30
30
30
31
31
31
32
33
34
35
1
SCREW M14X1.5X215
7517501
7518412
$52,49 Unit Price incl. VAT
2
WASHER-BLVL .567X1.125X.118-Y
7556003
$11,54 Unit Price incl. VAT
3
WASHER CLUTCH RET.
5131872
5132441
$41,99 Unit Price incl. VAT
4
Engine Short Block S707002 EV NOTE: The Short Block assembly contains a crankcase assembly cylinder and cylinder head assembly and a piston and crankshaft assembly. Prior authorization is requir
2201934
Not Available
5
SP.PLUG CHAMPION RN57Y CC (8)
3070190
$7,34 Unit Price incl. VAT
6
CONDUIT FLEX(.75#ID) Substituted by 5521398-96
552139813
Not Available
7
WASHER(10)
7555944
Not Available
8
RING-E RET.(10)
7710427
Not Available
9
HANDLE RECOIL Substituted by 5431499-070
5431499
$26,24 Unit Price incl. VAT
10
NUT-HEX-3/8-16 A ZTB NYL
7542451
$2,09 Unit Price incl. VAT
11
WASHER FLAT
7555893
$1,56 Unit Price incl. VAT
12
Strap Engine Mount LH
5245462
$68,24 Unit Price incl. VAT
12
Strap Engine Mount RH
5245475
$66,66 Unit Price incl. VAT
13
MOUNT-ENGINE 3/8-16 50 DUR
3021290
Not Available
14
BOLT
7512539
$7,34 Unit Price incl. VAT
15
WASHER LOCK(10)
7553101
$7,34 Unit Price incl. VAT
16
NUT-FLANGED 3/8-16 NYLON
7547180
$4,19 Unit Price incl. VAT
17
MOUNT-ENGINE 3/8-16
3021220
Not Available
18
BRKT-ENGINE MOUNT RH FORMED
5245044
Not Available
19
WASHER
7555806
$1,56 Unit Price incl. VAT
20
NUT-3/8-16 FLEXLOCK THIN-Y
7547008
$11,54 Unit Price incl. VAT
21
WELD-ENG MOUNT BRKT LH
1013397
Not Available
22
SCREW
7517854
$10,49 Unit Price incl. VAT
23
MOUNT-ENGINE 3/8-16 RECT
3021206
$115,49 Unit Price incl. VAT
24
CABLE THROTTLE 40MM
7080897
$120,74 Unit Price incl. VAT
25
Pump Fuel
2520260
Not Available
26
CLAMP-HOSE (LARGE GREEN)
7080307
$1,56 Unit Price incl. VAT
27
CABLE-TIE DIA12-50MM WTHR-RES.
7080138
$5,24 Unit Price incl. VAT
28
CONVOLUTED TUBING-68236 40 CM
836005840
Not Available
29
HOSE [BULK SVC]
84500031525
$136,49 Unit Price incl. VAT
30
HOSE CLAMP RED
7080003
$2,09 Unit Price incl. VAT
31
FUEL LINE ETHER RED 5/16# Substituted by 8350017-160
8350017600
Not Available
32
VLV FUEL SHUTOFF 5/16 ID
7052268
Not Available
33
DESC NOT_AVAILABLE
836005215
Not Available
34
FUEL LINE-1/4 ID (SVC) 600 CM [BULK]
8450040600
$136,49 Unit Price incl. VAT
35
TUBING CONVOLUTED
836005225
$62,99 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
