1
Engine displacement
570
2
Year
2020
3
Trim
RANGER CREW 570 FULL SIZE
4
Parts Catalog
BRAKES, LINES AND MASTER CYLINDER
5
Parts Diagram
Parts Catalog
SIDE NETS
by
DRIVE TRAIN, FRONT DRIVE SHAFT

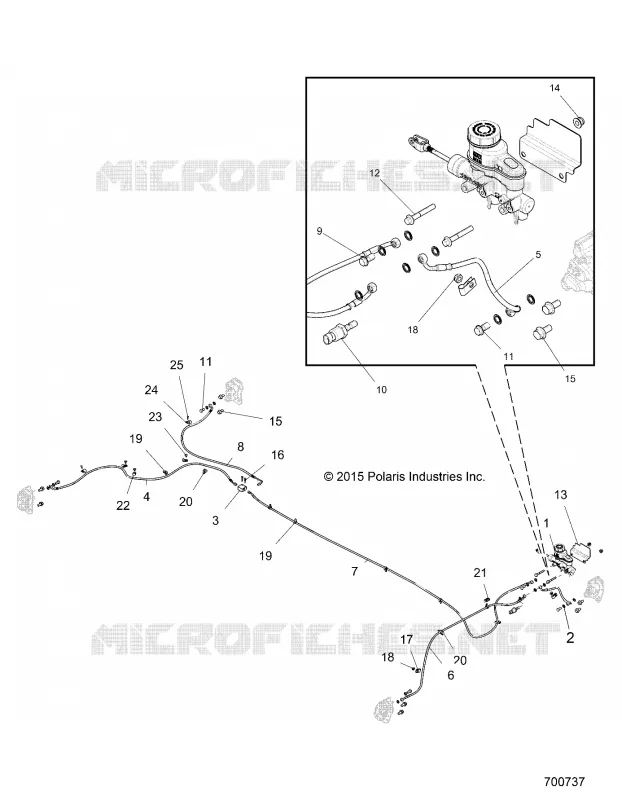

BRAKES, LINES AND MASTER CYLINDER
1
1
1
1
2
3
4
5
6
7
8
9
10
11
11
12
13
14
15
15
16
17
18
18
19
19
20
20
21
22
23
24
25
1
ASM-M/C-T HBII STD PUSH ROD
1912463
$482,99 Unit Price incl. VAT
1
KIT-CLEVIS M/C TANDEM HB 3/4#
2203456
$62,99 Unit Price incl. VAT
1
KIT-SERVICE CAP ASM TNDM MC HB
2204993
$68,24 Unit Price incl. VAT
1
KIT-NUTS CLEVIS M/C TANDEM [INCL. 2 NUTS]
2203457
$62,99 Unit Price incl. VAT
2
SEAL-STAT-0-3/8 70EP
5413212
$9,44 Unit Price incl. VAT
3
FITTING-TEE BRAKE
7052293
$110,24 Unit Price incl. VAT
4
LINE-BRK RR 52# 20F 70B 90 JJ
1912104
$167,99 Unit Price incl. VAT
5
LINE-BRK FL 19.5 70B 30B 135
1912589
$89,24 Unit Price incl. VAT
6
LINE-BRK FR 43.3 90B 30B 85
1912590
$141,74 Unit Price incl. VAT
7
LINE-BRK MCT 93.9 70B 20F 30G
1912636
$141,74 Unit Price incl. VAT
8
LINE-BRK RL 39# 90F 70B 270 J
1912105
$152,24 Unit Price incl. VAT
9
BOLT-BANJO 10MM X 1.25-6G
1910958
$14,69 Unit Price incl. VAT
10
SWITCH-BRK M10X1.25 DBL SEALED [TO 10/01/2022]
4014262
4081264
$153,29 Unit Price incl. VAT
11
BOLT-BANJO 10MMX1.00-6G
1910499
$10,49 Unit Price incl. VAT
12
SCR-M8X1.25X55 HX/FL-Y
7517281
$13,64 Unit Price incl. VAT
13
SHIELD-MASTER CYL GALV
5258202
$16,79 Unit Price incl. VAT
14
NUT-M8X1.25 HXFLG NYLON INS
7547317
7548028
$5,24 Unit Price incl. VAT
15
BOLT-M10X1.25X20 HXFLG-OLV D
7518558
$7,34 Unit Price incl. VAT
16
SCR-10-24X1 PN TRX TFS STL-Y
7518552
$7,34 Unit Price incl. VAT
17
CLAMP-CABLE
7080367
$4,19 Unit Price incl. VAT
18
NUT
7542344
$7,34 Unit Price incl. VAT
19
CLIP-SILENCER BOX-C 98 INDY
7670102
$4,19 Unit Price incl. VAT
20
CLIP-ROUTING
7081496
$9,44 Unit Price incl. VAT
21
CLIP-EDGE 1-3MM 6-45MM SERT.
7081808
$10,49 Unit Price incl. VAT
22
CLAMP-HOSE .312DIA VINYL COAT
7080683
$4,19 Unit Price incl. VAT
23
SCR-10-24X1/2 PHTXTRIRD SEMS-Y
7512084
$2,09 Unit Price incl. VAT
24
CLAMP-CABLE 9/16 I.D.
7080499
$10,49 Unit Price incl. VAT
25
RIVET-POP 5/32(.251-.375)-ST-B
7621323
$2,09 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
