1
Engine displacement
850
2
Year
2010
3
Trim
SPORTSMAN XP EPS 850 INTL - A10ZX85FL/FF
4
Parts Catalog
FOOTWELLS
5

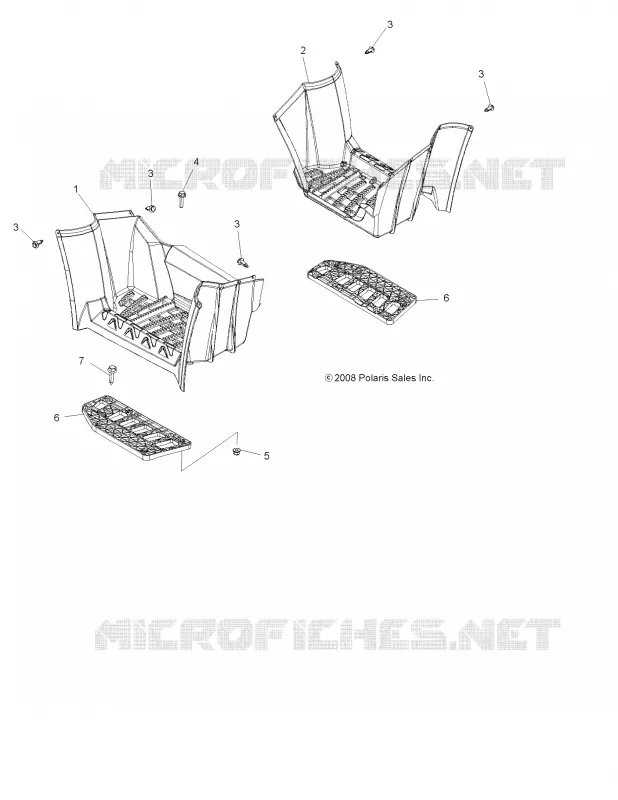

Parts Diagram
Parts Catalog
DECALS
by
FRONT BUMPER AND MOUNTING
FOOTWELLS
1
2
3
3
3
3
3
4
5
6
6
6
6
7
1
2
3
3
4
5
5
5
5
6
6
7
7
1
Footwell RH Black
5435822070
$414,74 Unit Price incl. VAT
2
FOOTWELL LH BLACK
5435821070
$414,74 Unit Price incl. VAT
3
RIVET-TUFLOK .315-.325X.787 ?
7661855
$2,09 Unit Price incl. VAT
4
SCR-HXFL-M6X1.0X30 RIE DGPNT
7519202
$7,34 Unit Price incl. VAT
5
NUT-M6 FLANGE NYLOC
7547274
$2,09 Unit Price incl. VAT
6
SUPPORT FOOTPAD RH
5437601
$73,49 Unit Price incl. VAT
6
Support Footpad LH
5437600
$73,49 Unit Price incl. VAT
7
SCR-M6X1.0X20 HXHD FLG TDFM BK
7518529
$2,09 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
