1
Engine displacement
850
2
Year
2022
3
Trim
SPORTSMAN 850 EPS 48"
4
Parts Catalog
ENGINE, COOLING SYSTEM AND WATER PUMP
5

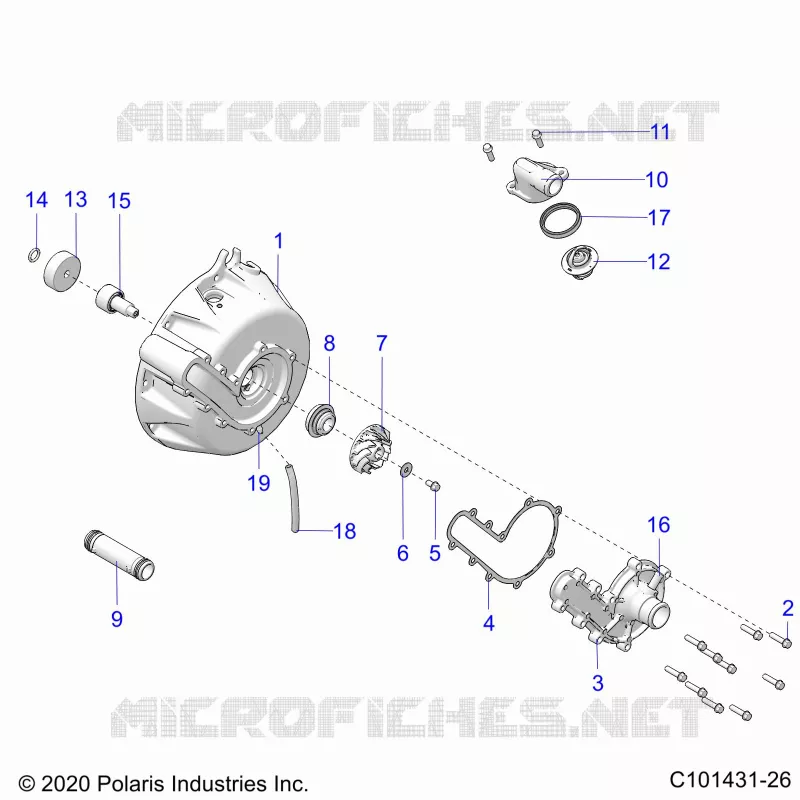

Parts Diagram
Parts Catalog
ENGINE, COOLING SYSTEM
by
CRANKCASE
ENGINE, COOLING SYSTEM AND WATER PUMP
1
2
3
4
5
6
7
8
9
9
10
11
12
13
14
15
16
17
18
19
1
COVER-STATOR W/WATERPUMP
5142906
5144073
$734,99 Unit Price incl. VAT
2
SCREW
7518855
7527861
$5,24 Unit Price incl. VAT
3
COVER WATER PUMP W/BP [INCL. COVER FITTING GASKET]
5137326
5144074
$125,99 Unit Price incl. VAT
4
GASKET COVER
5412954
$57,74 Unit Price incl. VAT
5
BOLT
7518854
7527860
$5,24 Unit Price incl. VAT
6
WASHER FLAT
7556451
7556094
$9,44 Unit Price incl. VAT
7
IMPELLER WATER PUMP CAST
5632427
$78,74 Unit Price incl. VAT
8
SEAL
3610136
$131,24 Unit Price incl. VAT
9
O-RING .864X1.00X.07
5412955
$13,64 Unit Price incl. VAT
9
TUBE WATER TRANSFER [INCL. 6]
5453707
$157,49 Unit Price incl. VAT
10
COVER-THERMOSTAT
5632606
$83,99 Unit Price incl. VAT
11
SCREW-HXFL-M6X1.0X20 8.8 ZY3
7518576
$6,29 Unit Price incl. VAT
12
THERMOSTAT
7052561
$83,99 Unit Price incl. VAT
13
COUPLER SPLINE INT WP BEARING
5140079
$62,99 Unit Price incl. VAT
14
O-RING-12.37X2.62 VITON
5417753
$3,14 Unit Price incl. VAT
15
BEARING-W/SHAFT WATERPUMP OPC
3514921
$88,19 Unit Price incl. VAT
16
WRENCH-8MMX10MM OPEN END
Not Available
17
SEAL-THERMOSTAT
5413948
$14,69 Unit Price incl. VAT
18
TUBING NYLON
8360077
8360209
$27,29 Unit Price incl. VAT
19
FITTING
7052463
$17,84 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
