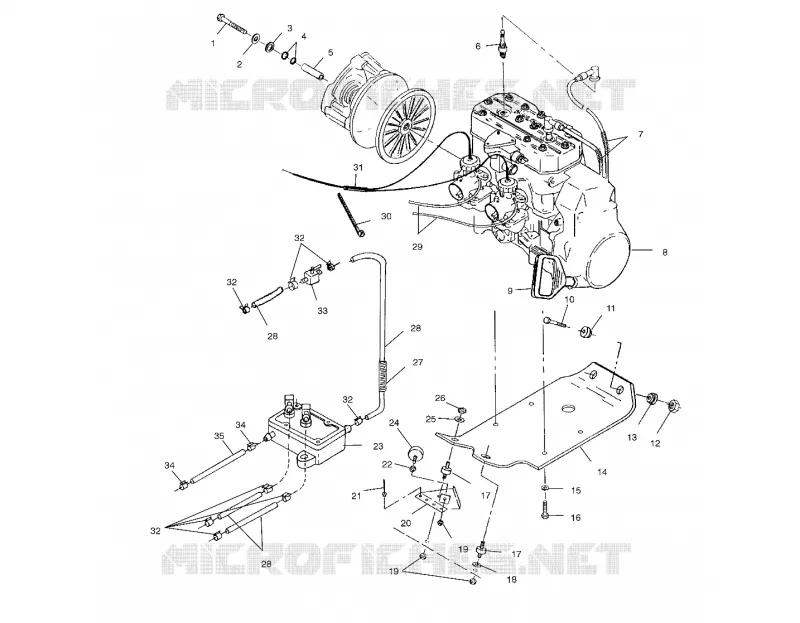

ENGINE MOUNTING FOR 500 WIDETRAK LX FROM 2000

ENGINE MOUNTING

1

BOLT(10)

7512565

$36,74 Unit Price incl. VAT

2

WASHER-7/16-INT LK-(1222)-Z [ACCESSORY]

7575202

$9,44 Unit Price incl. VAT

3

WASHER CLUTCH RETAINER

5010278

$18,89 Unit Price incl. VAT

4

O-RING CLUTCH BOLT

5410507

$2,09 Unit Price incl. VAT

5

SPACER CLUTCH BOLT

5020513

$60,89 Unit Price incl. VAT

6

SPARKPLUG RN3C(8)

3070166

$7,34 Unit Price incl. VAT

7

TUBING-CONVOLUTED 10CM

552151610

$1,98 Unit Price incl. VAT

8

ENGINE-EC50PL230 SB (EC50PL230) (See Footnote)

3086509

Not Available

9

HANDLE RECOIL Substituted by 5431499-070

5431499

$26,24 Unit Price incl. VAT

10

SCREW

7512530

$10,49 Unit Price incl. VAT

11

MOUNT ENGINE RUBBER TOP

5411685

$47,24 Unit Price incl. VAT

12

NUT FLANGE

7542522

$10,49 Unit Price incl. VAT

13

MOUNT ENGINE RUBBER BOTTOM

5411686

$52,49 Unit Price incl. VAT

14

PLATE MOTOR MT.

5242496

$230,99 Unit Price incl. VAT

15

WASHER LOCK(10)

7553101

$7,34 Unit Price incl. VAT

16

BOLT

7512539

$7,34 Unit Price incl. VAT

17

MOUNT ENGINE

3110061

$125,99 Unit Price incl. VAT

18

WASHER

7555915

$6,29 Unit Price incl. VAT

19

NUT-HEX-3/8-16 A ZTB NYL

7542451

$2,09 Unit Price incl. VAT

20

LIMITER TORQUE

1012048067

$62,99 Unit Price incl. VAT

21

RIVET-3/16-.090-.290

7661637

$2,09 Unit Price incl. VAT

22

NUT-3/8-16 HX THIN-Y

7542414

$9,44 Unit Price incl. VAT

23

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

24

STOP TORQUE

3110063

$47,24 Unit Price incl. VAT

25

WASHER FLAT

7555893

$1,56 Unit Price incl. VAT

26

NUT-3/8-16 FLEXLOCK THIN-Y

7547008

$11,54 Unit Price incl. VAT

27

CONDUIT CONVOL(15 CM) Substituted by 4010051-30

401005115

Not Available

28

TUBING-ETHER ERETHNE 600CM SVC Substituted by 8350018-160

8350018600

$99,74 Unit Price incl. VAT

29

HOSE-POLY CLEAR 3/16 OD 1/8 ID

8360009600

$83,99 Unit Price incl. VAT

30

CABLE-TIE DIA12-50MM WTHR-RES.

7080138

$5,24 Unit Price incl. VAT

31

CABLE THROTTLE W/OIL

7080554

$120,74 Unit Price incl. VAT

32

CLAMP-HOSE (LARGE GREEN)

7080307

$1,56 Unit Price incl. VAT

33

VALVE FUEL SHUT-OFF (Deluxe)

7052060

Not Available

34

HOSE CLAMP RED

7080003

$2,09 Unit Price incl. VAT

35

FUEL LINE-1/4 ID (SVC) 600 CM [BULK]

8450040600

$136,49 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
