1
Engine displacement
0
2
Year
1992
3
Trim
LITE GT - 0923133
4
Parts Catalog
NOSEPAN CONSOLE INDY LITE GT (4921342134003A)
5
Parts Diagram
Parts Catalog
CHASSIS AND SEAT INDY LITE GT (4921342134001A)
by
STEERING INDY LITE GT (4921342134011A)

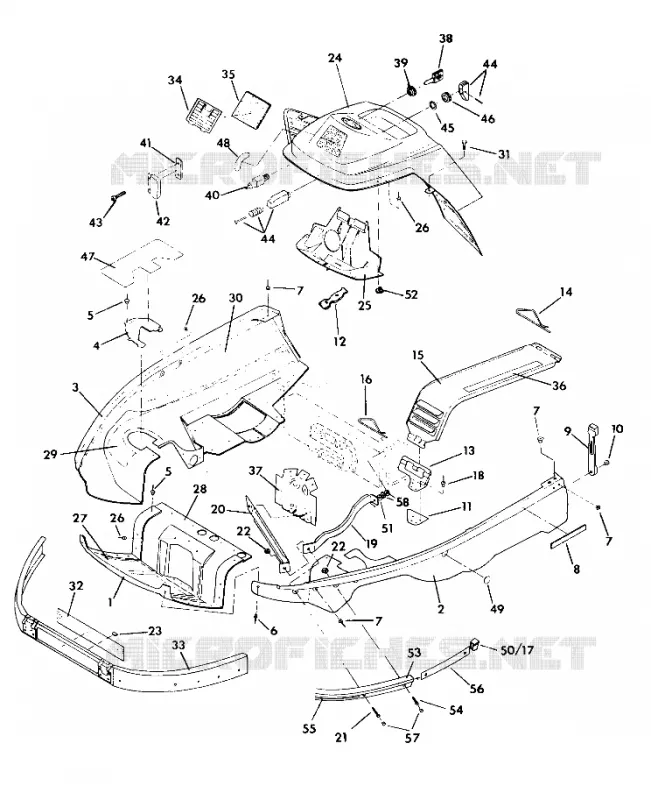

NOSEPAN CONSOLE INDY LITE GT (4921342134003A)
1
NOSEPAN CTR.
5431154070
Not Available
2
NOSEPAN LH BLK.
5431155070
Not Available
3
NOSEPAN RH BLK.
5431156070
Not Available
4
COVER RH SHOCK
5431253
Not Available
4
COVER LH SHOCK
5431252
Not Available
5
WASHER FLAT
7558212
$1,56 Unit Price incl. VAT
5
RIVET-POP3/16(.251-.375)AL-LFB
7621457
$2,09 Unit Price incl. VAT
7
RIVET 3/16(.063-.250)ST-ST-LF-B
7621472
$2,09 Unit Price incl. VAT
8
REFLECTOR AMBER
2670071
Not Available
9
STRAP HOOD
5410573
Not Available
10
RIVET (50)
7621601
1015421
$3,66 Unit Price incl. VAT
11
PLATE CLUTCHGUARD BLK.
5211249067
Not Available
12
STRAP TOOL COMPARTMENT (Indy)
5410425
Not Available
13
SUPPORT CLUTCH GD BLK.
5222332067
$7,97 Unit Price incl. VAT
14
PIN FRONT (TRAIL)
7080311
Not Available
15
GUARD CLUTCH Substituted by 5243761
5230124
Not Available
16
PIN
5224440
Not Available
17
CAP BUMPER END RH BLK Substituted by 5431251-070
5431251
Not Available
18
RIVET(50)
7621449
Not Available
19
BRKT LH PANBRACE BLK.
5222339067
Not Available
19
BRKT RH PANBRACE BLK.
5222340067
Not Available
20
BRKT RH BUMP.BRACE BLK.
5222346067
Not Available
20
BRKT LH BUMP.BRACE BLK.
5222345067
Not Available
21
SCR-1/4-20X1 SOC CP-Y
7515102
$9,44 Unit Price incl. VAT
22
NUT FLEXLOC
7542103
$10,49 Unit Price incl. VAT
23
U-CLIP (10)
7670070
Not Available
24
CONSOLE
5431157070
Not Available
25
CONSOLE INNER (Indy)
5431214070
Not Available
26
CLIP-DART (NYLON)
7670067
$7,34 Unit Price incl. VAT
27
TAPE FOIL
5810475
Not Available
28
TAPE FOIL
5810476
Not Available
29
TAPE FOIL
5810477
Not Available
30
TAPE FOIL
5810478
Not Available
31
SCREW(10)
7512252
Not Available
32
SCREEN
5211267067
Not Available
33
HINGE LOWER BLK.
2635010067
Not Available
34
LOUVER INTAKE
5431211070
Not Available
35
FOAM INTAKE (Indy)
5810458
Not Available
36
DECAL ENG/CLUTCH [No Longer Available]
7072871
Not Available
37
BRKT SUPPORT BLK.
5222356067
Not Available
39
NUT-IGNITION SWITCH
7542807
Not Available
40
SWITCH IGNITION
4110038
$83,99 Unit Price incl. VAT
41
HEAT SINK
5210650
Not Available
42
REGULATOR VOLTAGE
4060092
2203873
$188,99 Unit Price incl. VAT
43
SCR-#10-24X3/4 PN/TR RD-TORX-Y (taillight) [S57C1 C9]
7512018
$6,29 Unit Price incl. VAT
44
CABLE CHOKE(LITE) Substituted by 7080661 (Indy)
7080405
Not Available
45
Washer Inter Lock
7571610
$7,34 Unit Price incl. VAT
46
Nut Choke Slide
7080229
$36,74 Unit Price incl. VAT
47
TAPE FOIL (PAN)
5810482
Not Available
48
DECAL FUEL SHUT-OFF(LITE) [No Longer Available]
7073124
Not Available
49
PLUG CLUTCH HOLE
5410582
$15,74 Unit Price incl. VAT
50
CAP BUMPER END LH BLK Substituted by 5431250-070
5431250
Not Available
51
WASHER
7555806
$1,56 Unit Price incl. VAT
52
WSHR-11/64X3/8X1/32-Y
7555727
$1,04 Unit Price incl. VAT
53
BUMPER FRT BLK. Substituted by 5224434-067
5224434
Not Available
54
SCREW(10)
7512164
Not Available
55
STRAP TOOL COMPARTMENT (Indy)
5410425
Not Available
56
PLATE BUMPER
5222611067
Not Available
57
PLUG BUTTON(10)
7080430
$5,66 Unit Price incl. VAT
58
WASHER
7558403
$9,44 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
