1
Engine displacement
850
2
Year
2020
3
Trim
850 AXYS PRO-RMK 163 / 163 3"
4
Parts Catalog
SUSPENSION, REAR SHOCK TRACK (COIL OVER)
5
Parts Diagram
Parts Catalog
EXHAUST
by
REAR SUSPENSION

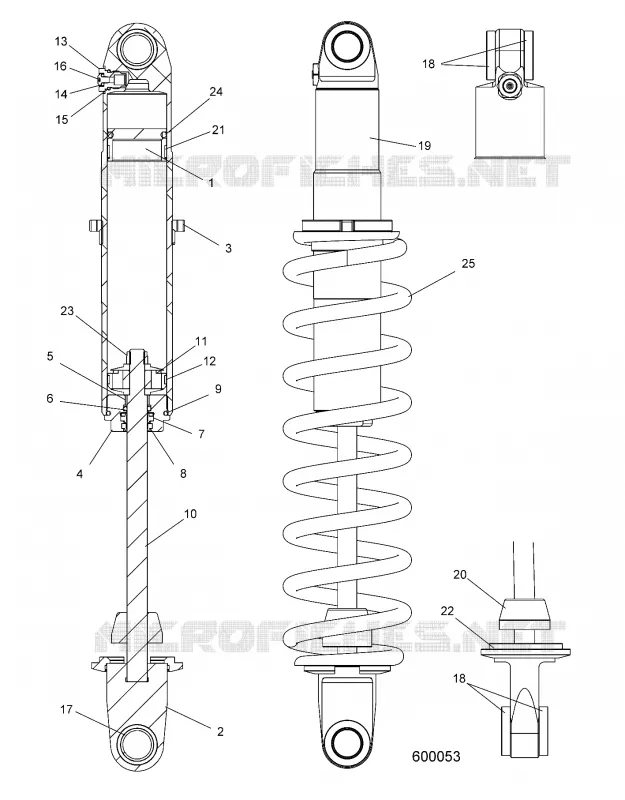

SUSPENSION, REAR SHOCK TRACK (COIL OVER)
-
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
18
19
20
21
22
23
24
25
25
-
SHOCK REAR TRACK WALKER EVANS COIL-OVER
7044770
$955,49 Unit Price incl. VAT
1
PISTON IFP
1800902
$125,99 Unit Price incl. VAT
2
LOOP-SHAFT 2# BLK
1800904
$209,99 Unit Price incl. VAT
3
ADJUSTER SPRING BLK
1800899
$73,49 Unit Price incl. VAT
4
ASM. SEAL HEAD BLK
1800898
$204,74 Unit Price incl. VAT
5
BUSHING SHAFT .50
1800544
$40,94 Unit Price incl. VAT
6
O-RING
1800095
$2,09 Unit Price incl. VAT
7
SEAL U-CUP
1800294
$47,24 Unit Price incl. VAT
8
SEAL WIPER
1800295
$26,24 Unit Price incl. VAT
9
O-RING 2-125
1800027
$3,66 Unit Price incl. VAT
10
SHAFT RT 8.18L
1800727
$230,99 Unit Price incl. VAT
11
ASM-PISTON
1800906
$278,24 Unit Price incl. VAT
12
WEAR BAND
1800543
$73,49 Unit Price incl. VAT
13
VALVE NEEDLE
1800329
$62,99 Unit Price incl. VAT
14
O-RING BLEED SCREW
1800210
$3,14 Unit Price incl. VAT
15
O-RING STUD
1800215
$14,16 Unit Price incl. VAT
16
SCREW BUTTON HEAD
1800109
$6,29 Unit Price incl. VAT
17
SLEEVE
1800405
$62,99 Unit Price incl. VAT
18
BUSHING
1800406
$9,44 Unit Price incl. VAT
19
BODY RT MONO TUBE CLEAR
1800728
$230,99 Unit Price incl. VAT
20
BUMPER
1800905
$62,99 Unit Price incl. VAT
21
BAND WEAR
1800297
$62,99 Unit Price incl. VAT
22
RING SPRING RETAINER BLK
1800764
$89,24 Unit Price incl. VAT
23
NUT CRIMP
1800031
$7,34 Unit Price incl. VAT
24
O-RING
1800028
$3,14 Unit Price incl. VAT
25
SPRG-CMP.362X11.26 210# SLS MB
7044812458
$377,99 Unit Price incl. VAT
25
SPRING COMPRESSION 250# BLACK [OPT]
7043740067
$225,74 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
