1
Engine displacement
800
2
Year
2008
3
Trim
SPORTSMAN X2 800 EFI LE - A08TN76AA/AQ
4
Parts Catalog
DRIVE TRAIN, PRIMARY CLUTCH
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, MAIN GEARCASE SHIFT FORKS
by
GAUGES INDICATORS
DRIVE TRAIN, PRIMARY CLUTCH
1
2
3
4
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
19
1
Asm. Clutch. EBS Wide [Incl. 1-9 11-13 19]
1322749
$1 081,49 Unit Price incl. VAT
2
Asm. Clutch Drive
1520836
$278,24 Unit Price incl. VAT
3
BEARING-DU 1.75ID
3514492
$54,59 Unit Price incl. VAT
4
Spacer Clutch [Built 12/31/09 and Before]
5632060
$89,24 Unit Price incl. VAT
5
Button Clutch
5431936
5439254
$14,69 Unit Price incl. VAT
6
WASHER
5430945
5438247
$3,14 Unit Price incl. VAT
7
ASM. ROLLER AND BUSHING
1321622
$62,99 Unit Price incl. VAT
8
PIN-ROLLER
5020422
$4,19 Unit Price incl. VAT
9
NUT-10-24-FLEX LOC-Z
7541906
$6,29 Unit Price incl. VAT
10
Spring Clutch 48-220
7043427
$18,57 Unit Price incl. VAT
11
BEARING COVER (10)
3576510
$16,79 Unit Price incl. VAT
12
SCR-1/4-20X1.25 HX/FL GR5
7518062
$9,44 Unit Price incl. VAT
13
SCR-SH-1/4X2 SAE4037 BLKOX&OIL
7512266
$5,76 Unit Price incl. VAT
14
Weight Shift 21-74
5632117
$62,99 Unit Price incl. VAT
15
BUSHING-.437 X.770 X.50
5430261
$13,64 Unit Price incl. VAT
16
WASHER-.440X1.25X.190 FL-Y
5210748
$7,34 Unit Price incl. VAT
17
WASHER-7/16-INT LK-(1222)-Z [ACCESSORY]
7575202
$9,44 Unit Price incl. VAT
18
Bolt
7518197
7519287
$52,49 Unit Price incl. VAT
19
WASHER-CLUTCH VESPEL
7556335
$11,54 Unit Price incl. VAT

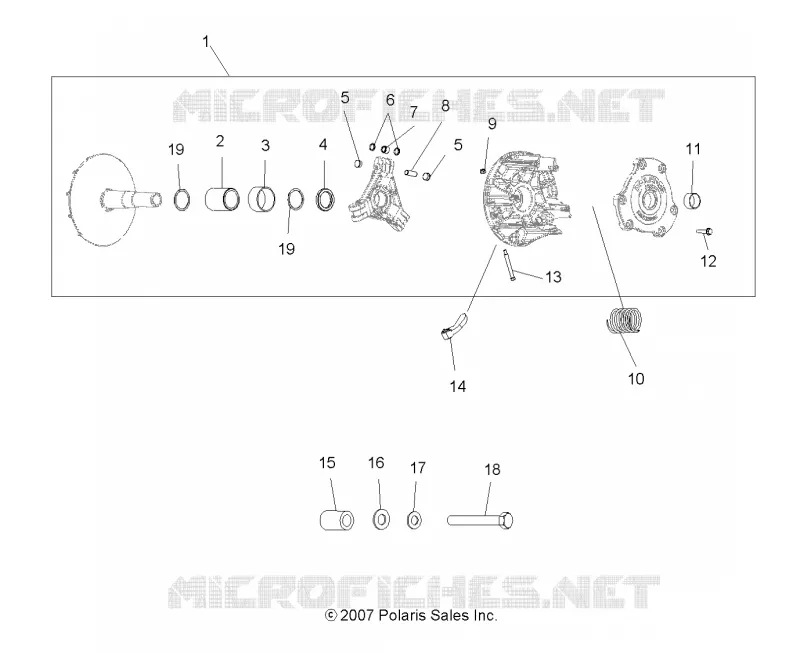

Find the detailed DRIVE TRAIN, PRIMARY CLUTCH POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
