1
Engine displacement
1000
2
Year
2022
3
Trim
SCRAMBLER XP 1000 EU 3PC
4
Parts Catalog
DRIVE TRAIN, FRONT GEARCASE, INTERNALS
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, DRIVE REAR SHAFT
by
DRIVE TRAIN, FRONT GEARCASE, MOUNTING

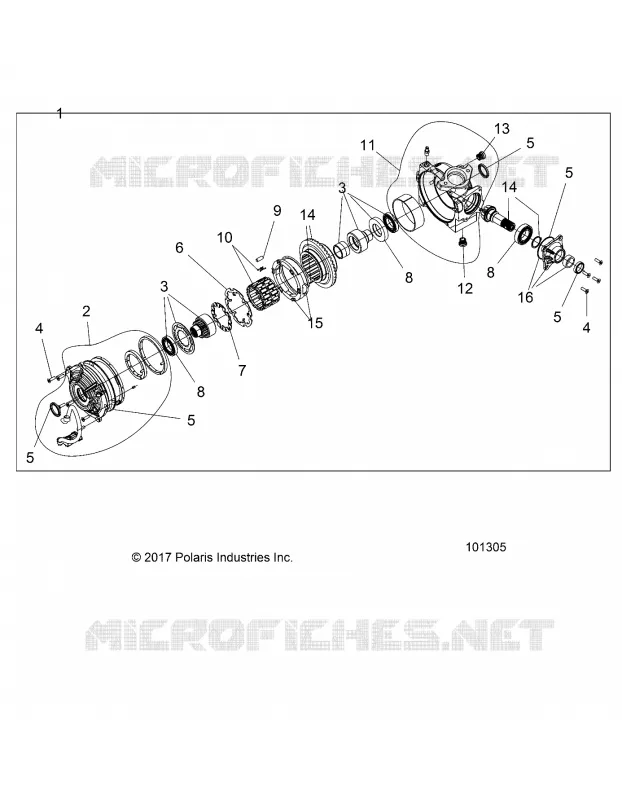

DRIVE TRAIN, FRONT GEARCASE, INTERNALS
1
2
3
3
4
4
5
5
5
5
5
6
7
8
8
8
9
10
11
12
13
14
14
15
16
1
ASM-GEARCASE FRONT ADC [INCL. ALL]
1337012
$3 008,24 Unit Price incl. VAT
2
ASM. COVER OUTPUT [INCL. O-RING SEAL PIN COVER SPACER COIL CLIPS 4WD COIL WIRING]
3236666
$965,99 Unit Price incl. VAT
3
ASM. OUTPUT HUB [INCL. BEARING BUSHING HUB HUB PLATE SPACER HUB ASM.]
3236674
$834,74 Unit Price incl. VAT
4
COVER FASTENERS [INCL. QTY 10 SCREWS]
3235433
$68,24 Unit Price incl. VAT
5
KIT SEAL REPAIR [INCL. ALL SEALS AND O-RINGS]
3236671
$136,49 Unit Price incl. VAT
6
PLATE 4WD ARMATURE
3235485
3236048
$209,99 Unit Price incl. VAT
7
ARMATURE PLATE BACK DRIVE
3235626
$188,99 Unit Price incl. VAT
8
KIT BEARINGS [INCL. ALL BALL BEARINGS]
3235435
$202,64 Unit Price incl. VAT
9
K-CLUTCH ROLLS W/COMPLETE SET OF ROLLER
3235624
$12,59 Unit Price incl. VAT
10
ASM-ROLL CAGE [INCL. CAGE AND COMPLETE SET OF CLIPS]
3235625
$325,49 Unit Price incl. VAT
11
ASM. GEARCASE [INCL. CASE BUSHING PLUGS SEAL VENT]
3236680
$1 343,99 Unit Price incl. VAT
12
KIT-PLUG DRAIN
2203738
$68,24 Unit Price incl. VAT
13
KIT-PLUG FILL
2203739
$83,99 Unit Price incl. VAT
14
ASM. GEAR HOUSING AND PINION GEAR [INCL. BEARING SNAP RING PIN PINION RING GEAR]
3239382
$1 280,99 Unit Price incl. VAT
15
KIT-TORSION SPRING AND RETAINER [INCLUDES 22 & 26]
3235712
$68,24 Unit Price incl. VAT
16
ASM. COVER INPUT [INCL. COVER SEAL O-RING BEARING]
3236143
$194,24 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
