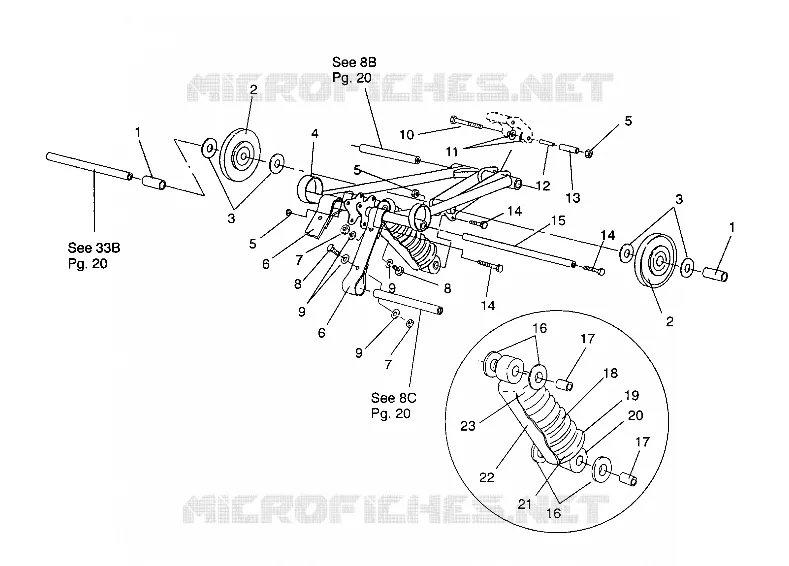

FRONT TORQUE ARM 440 XCR / 0931760 (4923022302021A) FOR 440 XCR - 0931760 FROM 1993

SUSPENSION ASSEMBLY 440 XCR / 0931760 (4923022302020A)

REAR TORQUE ARM 440 XCR / 0931760 (4923022302022A)

FRONT TORQUE ARM 440 XCR / 0931760 (4923022302021A)

1

SPACER OUTER

5332784

Not Available

2

WHEEL IDLER

1543018

$115,49 Unit Price incl. VAT

3

BUSHING-.781 X1.250X.060-Y

7556301

$6,29 Unit Price incl. VAT

4

ARM FRONT TORQUE

1540689067

Not Available

5

NUT-3/8-24(NYLOK)-Y

7542439

$2,09 Unit Price incl. VAT

6

STRAP LIMITER

5410397

Not Available

7

NUT-5/16-18 NYLOK-Y [INTL]

7542324

$1,56 Unit Price incl. VAT

8

SCR-5/16-18X1-HX/FLG-GR5-Y

7515307

$7,34 Unit Price incl. VAT

9

WASHER-.328X1.25X16GA FL-Y

7555716

$3,14 Unit Price incl. VAT

10

SCREW(10)

7515509

Not Available

11

Washer .105

7555832

$4,19 Unit Price incl. VAT

12

BUSHING PIVOT TUBE

5020561

$2,61 Unit Price incl. VAT

13

SPACER

5333028

$2,61 Unit Price incl. VAT

14

SCREW

7515415

$2,09 Unit Price incl. VAT

15

SHAFT MOUNTING

5010149

Not Available

16

BUSHING SHOCK .260 Substituted by 1500184

5431541

Not Available

17

BUSHING (1.24)

5020640

Not Available

18

SPRING BLACK COMP.

7041253067

Not Available

19

RETAINER SPRING BODY

5020617

Not Available

20

SHOCK GAS MIDDLE

7041294

Not Available

21

RING RETAINING(10)

7710424

Not Available

22

SHIELD SPRING

5430671

$47,24 Unit Price incl. VAT

23

RETAINER SPRING SLOTTED

5020618

$36,74 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
