1
Engine displacement
500
2
Year
2000
3
Trim
MAGNUM 500 - A00CD50AA
4
Parts Catalog

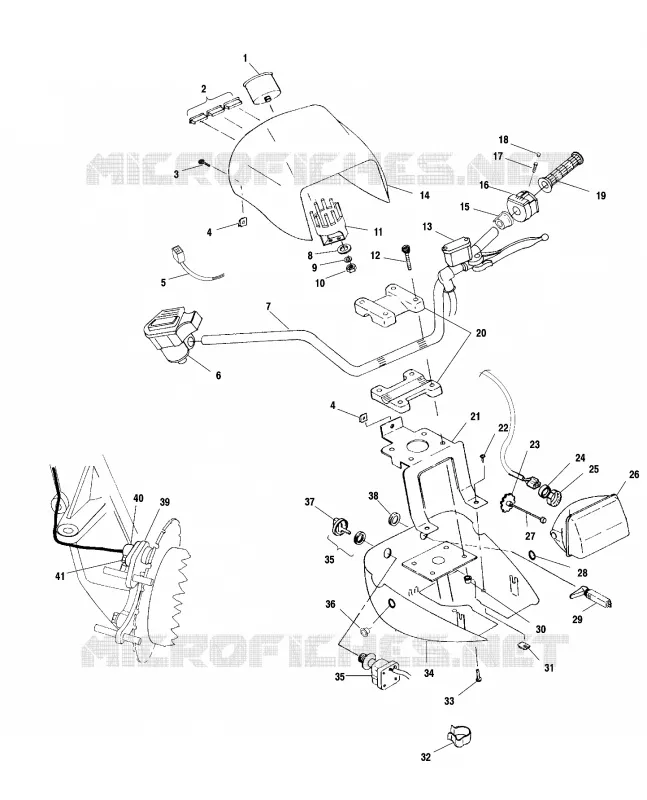

HANDLEBAR HEADLIGHT POD
5
Parts Diagram
Parts Catalog
STEERING POST
by
OIL TANK
HANDLEBAR HEADLIGHT POD
1
SPEEDO ASM 3.38# 6-PULSE Substituted by 3280363 (Incl. Clamp and Hardware)
3280290
Not Available
1
SPEEDO ASM KILO 3.38# 6-PULSE Substituted by 3280358 (Worker)
3280312
Not Available
2
PLUG INDIC.HOLE (400 & 650)
5430967
$12,59 Unit Price incl. VAT
2
INDICATOR #P# PARK (FA)
4010313
Not Available
2
INDIC#NEUT./REV.#
4040054
$62,99 Unit Price incl. VAT
2
INDIC#HOT TEMPERATURE#
4040053
$62,99 Unit Price incl. VAT
3
SCREW(10)
7511881
$2,09 Unit Price incl. VAT
4
NUT
7670086
$7,34 Unit Price incl. VAT
5
HARNESS HDLGHT POD INT#L (FA)
2460840
Not Available
5
HARNESS-HEADLIGHT POD
2460714
$23,82 Unit Price incl. VAT
6
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
7
TUBE-HANDLEBAR GEN 4 POD BLK
5242987067
$178,49 Unit Price incl. VAT
8
WASHER FLAT
7558212
$1,56 Unit Price incl. VAT
9
WASHER LOCK (S.S.)(10)
7555868
Not Available
10
Nut
7541933
$7,34 Unit Price incl. VAT
11
Clamp Speedometer
3280291
Not Available
12
SCREW(10)
7515189
7515189-CO
$2,09 Unit Price incl. VAT
13
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
14
POD HEADLIGHT UPPER EB GREEN
5433042195
Not Available
15
SPACER SWITCH LH
5432926
$4,29 Unit Price incl. VAT
16
SWITCH-HANDLEBAR H/L/O REV/OR
4010262
$383,24 Unit Price incl. VAT
17
SCREW SET
7517625
$9,44 Unit Price incl. VAT
18
PLUG-HOLE .25 FLUSH (BPF-1/4)
5432952
$12,59 Unit Price incl. VAT
19
GRIP HANDLEBAR
5431030
5433834-070
$52,49 Unit Price incl. VAT
20
Block Handlebar Retainer
5630616067
Not Available
20
Kit Handlebar Block [Incl. Blocks and 7 11 29]
2200774
Not Available
21
BRKT POD MTG BLK.
5240586067
5244969-329
$68,24 Unit Price incl. VAT
22
SCREW(10)
7517317
$6,29 Unit Price incl. VAT
23
KNOB ADJUSTING
4032079
$52,49 Unit Price incl. VAT
24
BOOT HEADLIGHT
5411120
$52,49 Unit Price incl. VAT
25
Collar Locking
4032077
$52,49 Unit Price incl. VAT
26
Lens and Reflector
4032075
Not Available
26
BULB HALOGEN
2870448
$36,74 Unit Price incl. VAT
27
Rod Adjusting
4032078
Not Available
28
O RING-.549X.755X1.03
5410163
$3,14 Unit Price incl. VAT
29
CABLE CHOKE W/ADJUSTER
7080726
$188,99 Unit Price incl. VAT
29
KIT CHOKE CONTROL INCL. ANCHOR FLIPPER PIN
2200188
$52,49 Unit Price incl. VAT
30
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
31
NUT U-TYPE(10)
7670089
$10,49 Unit Price incl. VAT
32
CLIP CABLE RETAIN (10)
7080631
Not Available
33
SCREW(10)
7522021
Not Available
34
POD H/L LOW BLK.
5431811070
Not Available
35
NUT-IGNITION SWITCH HOBBS
5433733
$41,99 Unit Price incl. VAT
35
SWITCH IGNITION (Incl. Key)
4110264
4012163
$204,74 Unit Price incl. VAT
35
Blank Key Series 2200 2300 2700 2800. NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.
4010321
4083604
$27,29 Unit Price incl. VAT
35
BLANK KEY SERIES 2000 2100 6700 6800 [NOTE:YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY]
4010278
4083605
$27,29 Unit Price incl. VAT
36
CAPLUG [QUICKDRIVE MODELS ONLY]
7080936
$5,24 Unit Price incl. VAT
37
Cover-Key
5433534
5465307
$26,24 Unit Price incl. VAT
38
Nut Choke Slide
7080229
$36,74 Unit Price incl. VAT
39
Sensor
4010298
$220,49 Unit Price incl. VAT
39
SENSOR HALL EFFECT Substituted by 2201625
4040081
$362,24 Unit Price incl. VAT
40
CAP HALL EFFECT
5132382
$47,24 Unit Price incl. VAT
41
SCREW
7517658
$10,49 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
