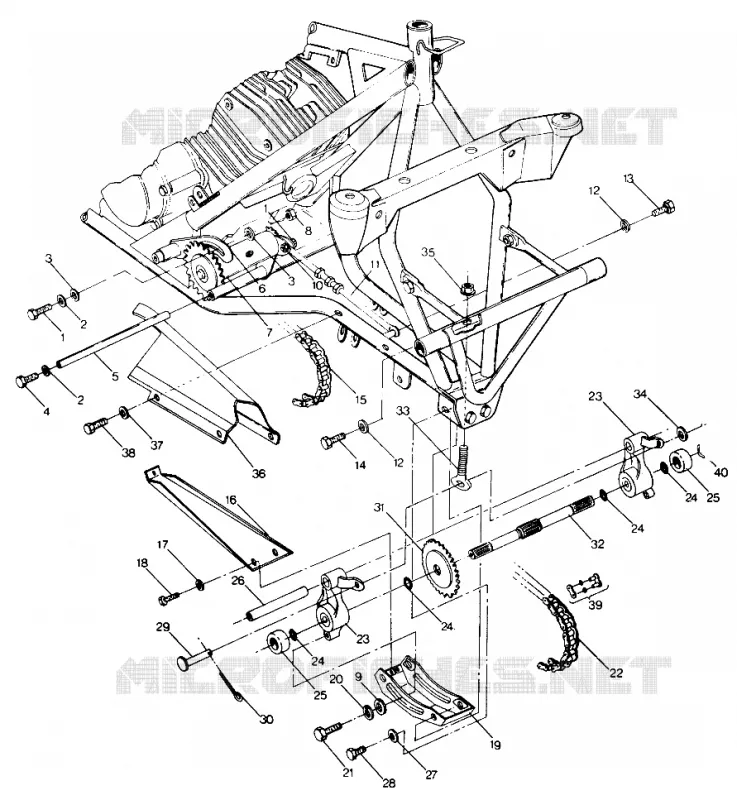

FRONT DRIVE ASSEMBLY (49147514750031)
5
Parts Diagram
Parts Catalog
WIRE HARNESS (49147514750029)
by
CRANKSHAFT AND PISTON ASSEMBLY (49147514750039)
FRONT DRIVE ASSEMBLY (49147514750031)
9
10
11
12
12
13
15
16
17
18
19
20
21
22
23
23
23
23
23
23
23
23
24
24
24
24
25
25
26
27
28
29
30
31
32
33
34
35
36
39
40
9
10
11
12
13
15
1
BOLT(10) Substituted by 7512457
7512491
Not Available
2
WASHER(10)
7555801
$7,34 Unit Price incl. VAT
3
WASHER EXT.LOC.
7571616
Not Available
4
SCREW
7512492
$2,09 Unit Price incl. VAT
5
SHAFT PIVOT CTR. [No Longer Available]
5010230
Not Available
6
PLATE CTR.TIGHT.ADJ.
5220785
Not Available
7
TIGHTENER ASM CTR. [No Longer Available]
1380001
Not Available
8
NUT(10)
7542425
Not Available
9
WASHER LOCK
7571617
Not Available
10
NUT-3/8-24(NYLOK)-Y
7542439
$2,09 Unit Price incl. VAT
11
ADJUSTER ASM CTR. [No Longer Available]
1380002
Not Available
12
WASHER SPRINGLOCK(10) Substituted by 7552603
7553001
7552603
$1,56 Unit Price incl. VAT
13
BOLT(10)
7515483
Not Available
15
CHAIN DRIVE W/CON.
3224039
Not Available
16
GUARD CHAIN
5220803
Not Available
17
WASHER(10) Substituted by 7558301
7555776
7558301
$2,09 Unit Price incl. VAT
18
SCREW(10)
7512252
Not Available
19
COVER TIGHTENER WELD.
1040141
Not Available
20
WASHER LOCK(10)
7553101
$7,34 Unit Price incl. VAT
21
BOLT
7512539
$7,34 Unit Price incl. VAT
22
CHAIN DRIVE Substituted by 3224056-064
3224041
$194,24 Unit Price incl. VAT
23
TIGHTENER ASM LH FR. [No Longer Available]
1380004
Not Available
23
TIGHTENER ASM RH FR. [No Longer Available]
1380005
Not Available
24
O RING
5410463
Not Available
25
SPACER FR.TIGHTENER
5020474
Not Available
26
SHAFT PIVOT TIGHTENER [No Longer Available]
5020483
Not Available
27
WASHER-5/16 SPRING LK-MED-Y
7552901
$2,09 Unit Price incl. VAT
28
BOLT(10)
7515321
Not Available
29
PIN CLEVIS
7662020
Not Available
30
PIN COTTER
7661203
$2,09 Unit Price incl. VAT
31
SPROCKET 22 TOOTH
3222045
Not Available
32
SHAFT OUTPUT
5020463
Not Available
33
BOLT ADJUSTER
7080293
Not Available
34
WASHER(10) Substituted by 7555806
7555803
Not Available
35
NUT FLANGE
7542321
$2,09 Unit Price incl. VAT
36
GUARD CHAIN FR.
5430902
Not Available
39
CONNECTOR LINK
3225024
$47,24 Unit Price incl. VAT
40
WASHER WAVE(10) Substituted by 7555816
7555777
7571605
$11,54 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
