1
Engine displacement
800
2
Year
2004
3
Trim
800 FRONTIER CLASSIC
4
Parts Catalog
ELECTRIC MODULE (M-10)(ACE)
5
Parts Diagram
Parts Catalog
DRIVEN CLUTCH
by
ENGINE MOUNTING

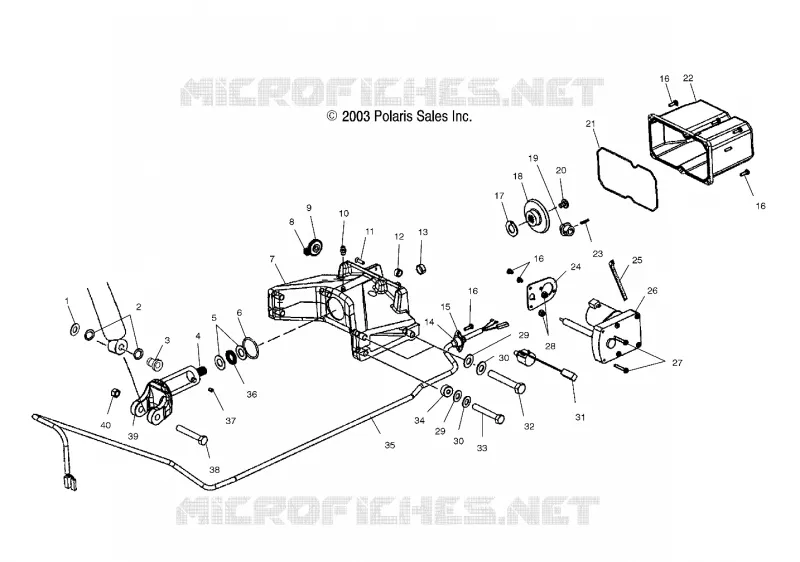

ELECTRIC MODULE (M-10)(ACE)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
16
16
16
17
18
19
20
21
22
23
24
25
26
27
28
29
29
30
30
31
32
33
34
35
36
37
38
39
40
1
1
1
1
1
1
2
3
4
5
6
7
8
9
9
9
9
9
9
10
11
11
11
11
11
11
11
12
13
13
14
15
16
16
16
16
16
16
17
18
1
Washer
5133403
Not Available
2
O-RING-.859X1.137X.139
5411092
$3,14 Unit Price incl. VAT
3
Bushing
5133402
$20,99 Unit Price incl. VAT
4
Shaft Screw
5133159
$99,74 Unit Price incl. VAT
5
Bearing Raceway
3514388
Not Available
6
O-Ring
5412229
$3,14 Unit Price incl. VAT
7
Asm. Casting [Incl. 6 10 12 13]
1541692
$370,64 Unit Price incl. VAT
8
Gear 12T
5434728
Not Available
9
Gear 32T
5434727
$4,61 Unit Price incl. VAT
10
FITTING-LUBRICATION 1/4-28
7080424
$9,44 Unit Price incl. VAT
11
Screw
7518088
$2,61 Unit Price incl. VAT
12
BEARING [1 PER]
3514385
1590434-070
$115,49 Unit Price incl. VAT
13
Bearing
3514403
$12,80 Unit Price incl. VAT
14
Grommet
5434492
Not Available
15
Plate Grommet
5222998
Not Available
16
SCREW
7511866
$9,44 Unit Price incl. VAT
17
Washer Thrust
7556201
Not Available
18
Gear Bevel Large
3221135
$503,99 Unit Price incl. VAT
19
Gear Bevel Small
3221136
$503,99 Unit Price incl. VAT
20
Screw
7518152
$5,76 Unit Price incl. VAT
21
Seal Cover
5434293
Not Available
22
Cover Motor
5434292
$26,45 Unit Price incl. VAT
23
Pin Drivlok
7661161
$2,09 Unit Price incl. VAT
24
Plate Support Motor
5246536
$10,70 Unit Price incl. VAT
25
CABLE-TIE DIA12-50MM WTHR-RES.
7080138
$5,24 Unit Price incl. VAT
26
Motor
4010596
$435,74 Unit Price incl. VAT
27
Screw
7518087
$14,16 Unit Price incl. VAT
28
NUT-8-32 NYL-Y
7547004
$9,44 Unit Price incl. VAT
29
WASHER
7556042
7555806
$1,56 Unit Price incl. VAT
30
WASHER-SPRING-LOCK
7552603
$1,56 Unit Price incl. VAT
31
Potentiometer M-10 ACE
4010780
Not Available
32
SCREW
7518006
$6,29 Unit Price incl. VAT
33
SCR-3/8-16X1.50-HX/CP-GR5-P80Y
7518005
$5,76 Unit Price incl. VAT
34
Spacer
5133351
$13,64 Unit Price incl. VAT
35
Harness Wire (Incl. 14)
2461104
Not Available
36
Bearing Thrust
3514387
$11,54 Unit Price incl. VAT
37
Screw Set
7518037
$1,04 Unit Price incl. VAT
38
BOLT
7515438
$9,44 Unit Price incl. VAT
39
Clevis
5133325
$209,99 Unit Price incl. VAT
40
NUT-3/8-24(NYLOK)-Y
7542439
$2,09 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
