1
Engine displacement
500
2
Year
1990
3
Trim
NOR 500 SKS - N900564
4
Parts Catalog

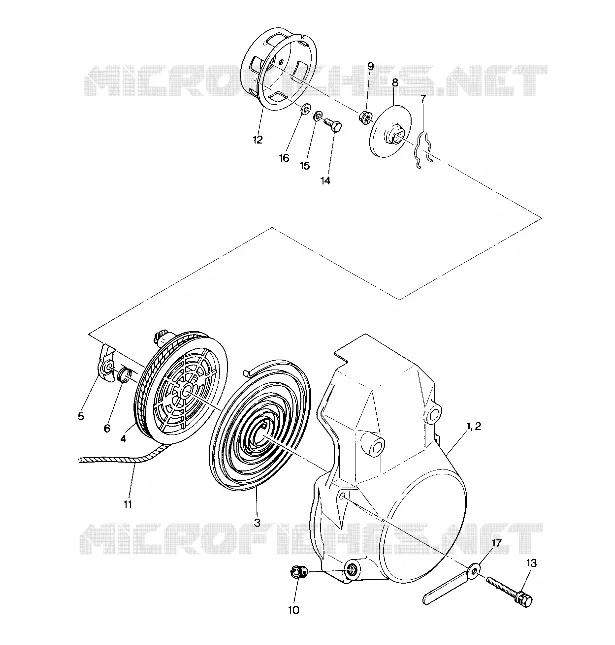

RECOIL STARTER 500 AND 500 CLASSIC (4916791679027A)
5
Parts Diagram
Parts Catalog
MAGNETO 500 AND 500 CLASSIC (4916791679026A)
by
WATER PUMP 500 AND 500 CLASSIC (4916791679028A)
RECOIL STARTER 500 AND 500 CLASSIC (4916791679027A)
1
STARTER RECOIL ASM. (Incl. 2-11)
3083461
Not Available
2
CASE STARTER
3083462
Not Available
3
SPRING SPIRAL
3083376
3023393
$278,24 Unit Price incl. VAT
4
ASM. REEL
3083377
$104,99 Unit Price incl. VAT
5
RATCHET
3083378
$36,74 Unit Price incl. VAT
6
SPRING RETURN
3083463
$8,39 Unit Price incl. VAT
7
SPRING FRICTION
3083379
$52,49 Unit Price incl. VAT
8
PLATE FRICTION
3083464
Not Available
9
NUT FLANGE
3083381
Not Available
10
BUSHING ROPE SLIDE
3083107
3040171
$6,08 Unit Price incl. VAT
11
ROPE STARTER
2870621
$47,24 Unit Price incl. VAT
12
PULLEY STARTING
3083312
$68,24 Unit Price incl. VAT
13
BOLT&WASHER ASM.
3083382
$15,74 Unit Price incl. VAT
14
BOLT(10)
3083383
Not Available
15
WASHER SPRING(10)
3080077
$4,19 Unit Price incl. VAT
16
WASHER
3082520
$2,61 Unit Price incl. VAT
17
CLAMP
3083384
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
