1
Engine displacement
0
2
Year
1997
3
Trim
XLT - 0970756
4
Parts Catalog

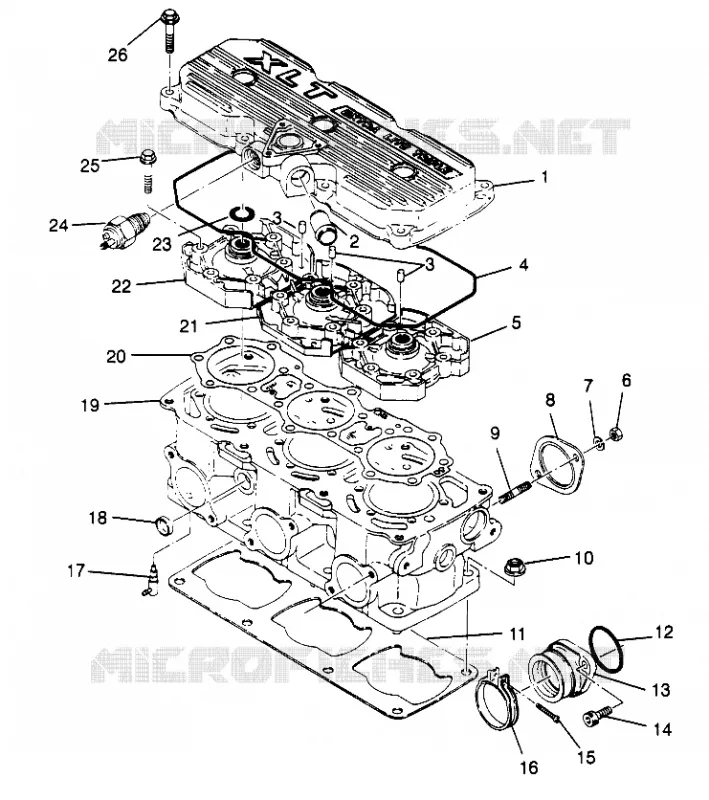

CYLINDER XLT 0970756, XLT SKS 0970556, AND XLT RMK 0970956 (4937693769C013)
5
Parts Diagram
Parts Catalog
CRANKCASE XLT 0970756, XLT SKS 0970556, AND XLT RMK 0970956 (4937693769C012)
by
WATER PUMP XLT 0970756, XLT SKS 0970556, AND XLT RMK 0970956 (4937693769C014)
CYLINDER XLT 0970756, XLT SKS 0970556, AND XLT RMK 0970956 (4937693769C013)
1
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
1
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
1
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
1
COVER HEAD (3 CYL) (Incl. 22)
3085190
Not Available
2
PIPE WATER (Water)
3083452
Not Available
3
PIN DOWEL
3084721
$9,44 Unit Price incl. VAT
4
O-RING (HEADCOVER) (Head Cover)
3084434
Not Available
5
HEAD CYL #1 (MAG) (Mag)
3085423
Not Available
6
NUT(10)
3080285
Not Available
7
WASHER LOCK (10)
3080530
$6,29 Unit Price incl. VAT
8
GASKET EXHAUST NA(10) Substituted by 3086757 (Exhaust) NA
3084439
Not Available
9
STUD (10)
3085326
Not Available
10
NUT FLANGE
3082911
7547013
$3,14 Unit Price incl. VAT
11
GASKET CYLINDER (Cylinder)
3084593
Not Available
12
O-RING Substituted by 3085619
3084272
5418045
$36,74 Unit Price incl. VAT
13
ADAPTER
3084438
Not Available
14
BOLT SOCKET HEAD
3081330
$7,34 Unit Price incl. VAT
15
SCREW
3081497
$4,19 Unit Price incl. VAT
16
BAND-CARB MTG. (Incl. 19)
3082257
Not Available
17
VALVE CHECK Substituted by 3086785
3083337
7051020
$68,24 Unit Price incl. VAT
18
PLUG
3084428
$5,66 Unit Price incl. VAT
19
CYLINDER
3085017
$1 069,94 Unit Price incl. VAT
20
GASKET HEAD (Opt)
3085005
Not Available
21
HEAD CYL.#2 (CTR) (Center)
3085424
Not Available
22
HEAD CYL.#3 (PTO) (PTO)
3085425
Not Available
23
O RING
3085192
Not Available
24
SWITCH THERMAL IOS
3084284
Not Available
25
BOLT FLANGE (10)
3084435
Not Available
26
BOLT FLANGE
3084437
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
