DRIVE TRAIN, REAR GEARCASE INTERNALS (BUILT 1/31/08 AND BEFORE) FOR SPORTSMAN 800 HO EFI - A08MN76AF/AL/AQ/AR/AS/AT/AX FROM 2008

DRIVE TRAIN, MAIN GEARCASE MOUNTING

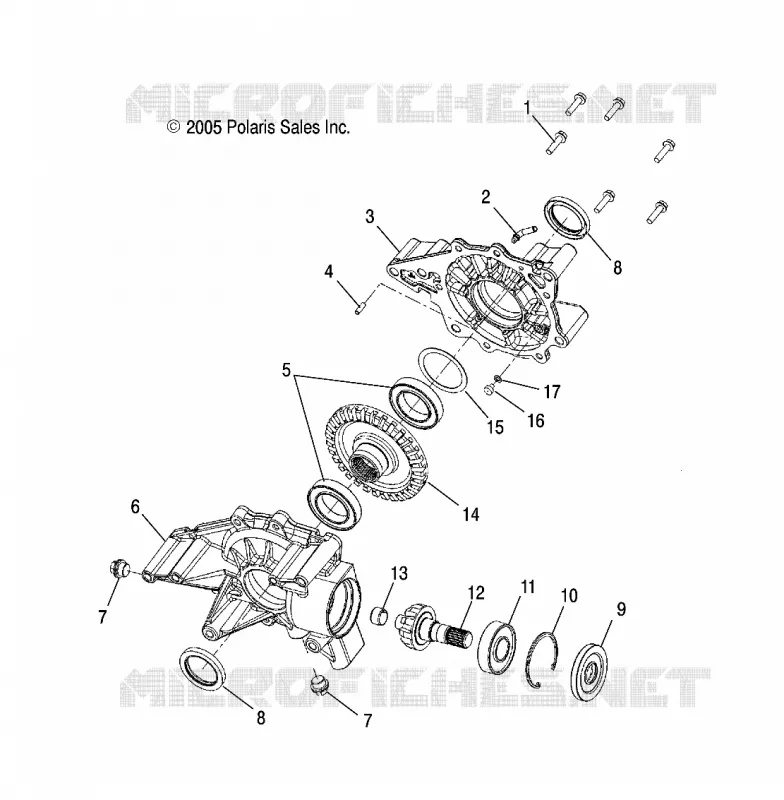

DRIVE TRAIN, REAR GEARCASE INTERNALS (BUILT 1/31/08 AND BEFORE)

-

Asm. Gearcase Rear (If built after 10/06/04)

1332366

Not Available

1

SCREW TAPPING HEX WASHER HD 5/16-18 X 1.25

3234114

$13,64 Unit Price incl. VAT

2

TUBE VENT 90 -1/4 INCH HOSE

3234230

$19,94 Unit Price incl. VAT

3

Cover Rear LH (1332366)

3234235

Not Available

4

Pin Dowel

3233859

Not Available

5

BEARING BALL 6010 C3 50 X 80 X 10

3233268

$88,19 Unit Price incl. VAT

6

Gearcase Rear RH

3234115

$797,99 Unit Price incl. VAT

7

Plug

3234087

$31,49 Unit Price incl. VAT

8

SEAL TRIPLE LIP 40 X 70 X 7

3233878

$57,74 Unit Price incl. VAT

9

SEAL TRIPLE LIP VITON 25 X 80 X 10

3234113

$68,24 Unit Price incl. VAT

10

RING RETAINING BEVELED INTERNAL 2.835

3234158

$41,99 Unit Price incl. VAT

11

BEARING BALL 6306 STD 30X72X19

3233714

$54,59 Unit Price incl. VAT

12

Shaft Pinion 10T

3233881

$325,49 Unit Price incl. VAT

13

BEARING PLAIN

3233577

$36,74 Unit Price incl. VAT

14

Gear 31T

3233879

Not Available

15

SHIM 3.1 X 2.5

3233581

$73,49 Unit Price incl. VAT

16

THRUST BUTTON

3233582

$13,64 Unit Price incl. VAT

17

SHIM .450 X .265

3233583

$52,49 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
