Engine displacement
600
2
Year
2005
3
Trim
SPORTSMAN 600 - A05MH59AK
4
Parts Catalog
CRANKSHAFT AND PISTON
5
Parts Diagram
Parts Catalog
TRANSMISSION MOUNTING
by
CYLINDER AND CYLINDER HEAD
CRANKSHAFT AND PISTON
1
2
2
3
3
4
5
6
7
8
9
10
11
1
Kit Piston [Incl. 2 3 4]
2202365
Not Available
2
Circlip
3022996
Not Available
3
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
4
Kit Piston Ring [Incl. Control Iron and Chrome Rings]
2202366
Not Available
5
Kit Crankshaft 600 ATV [Incl. 7 from Crankcase Pg. D7 Ref. 2 3 4 16]
2202857
$2 504,24 Unit Price incl. VAT
6
KEY WOODRUFF
7721117
$47,24 Unit Price incl. VAT
7
Kit Gear Set
2202145
Not Available
8
SCREW
7517865
$20,99 Unit Price incl. VAT
9
Spring Torsion Command Lever
7555982
7558715
$26,24 Unit Price incl. VAT
10
KEY WOODRUFF
7721131
$41,99 Unit Price incl. VAT
11
Shaft Balance
5132485
$256,19 Unit Price incl. VAT

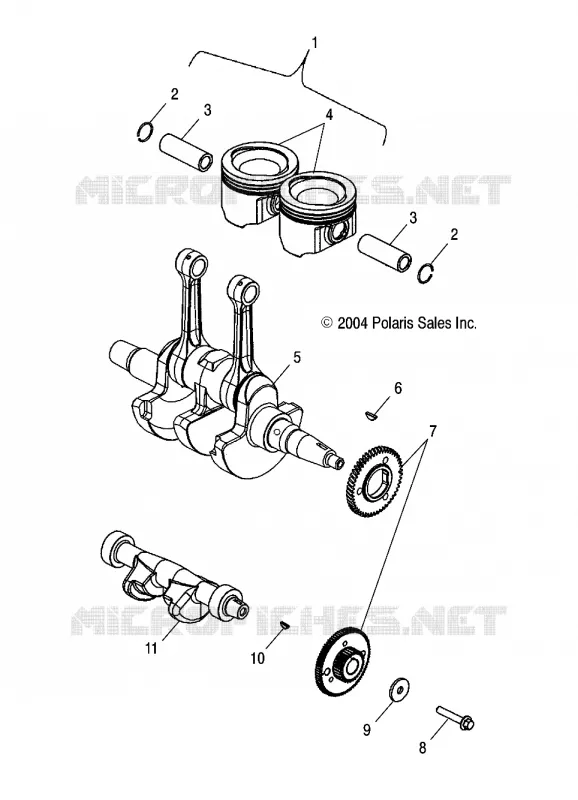

Find the detailed CRANKSHAFT AND PISTON POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
