1
Engine displacement
440
2
Year
1995
3
Trim
440 L/C - 0952760
4
Parts Catalog

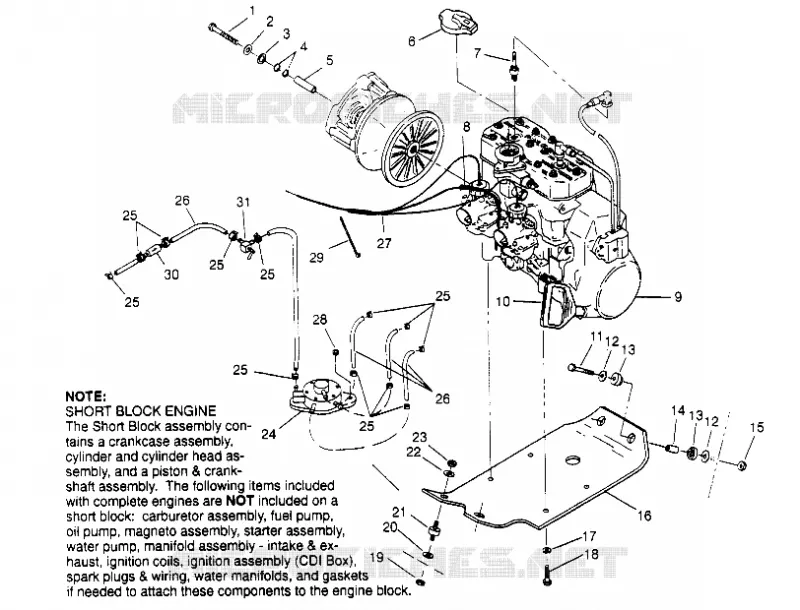

ENGINE MOUNTING 440 0952760, 440 SKS 0952560, AND EUROPEAN 440 SKS E952560 (4929032903C003)
5
Parts Diagram
Parts Catalog
SUSPENSION ASSEMBLY 440 0952760, 440 SKS 0952560, AND EUROPEAN 440 SKS E95 (4929032903B011)
by
EXHAUST SYSTEM 440 0952760, 440 SKS 0952560, AND EUROPEAN 440 SKS E952560 (4929032903C004)
ENGINE MOUNTING 440 0952760, 440 SKS 0952560, AND EUROPEAN 440 SKS E952560 (4929032903C003)
1
2
3
4
5
6
7
8
9
10
11
12
12
13
13
14
15
16
17
18
19
20
21
22
23
24
25
25
25
25
25
25
25
26
26
27
28
29
30
31
1
2
3
4
5
6
7
8
9
10
11
12
12
13
13
14
15
16
17
18
19
20
21
22
23
24
25
25
25
25
25
25
25
26
26
27
28
29
30
31
1
2
3
4
5
6
7
8
9
10
11
12
12
13
13
14
15
16
17
18
19
20
21
22
23
24
25
25
25
25
25
25
25
26
26
27
28
29
30
31
1
BOLT(10)
7512565
$36,74 Unit Price incl. VAT
2
WASHER-7/16-INT LK-(1222)-Z [ACCESSORY]
7575202
$9,44 Unit Price incl. VAT
3
WASHER CLUTCH RETAINER
5010278
5010287
$18,89 Unit Price incl. VAT
4
O-RING CLUTCH BOLT
5410507
$2,09 Unit Price incl. VAT
5
SPACER CLUTCH BOLT
5020513
$60,89 Unit Price incl. VAT
6
CAP PRESSURE
2511155
Not Available
7
SPARKPLUG RN3C(8)
3070166
$7,34 Unit Price incl. VAT
8
CONDUIT CONVOL(26 CM) Substituted by 4010051-30
401005126
Not Available
9
ENG.(S.B.)EC45PL-01/02 [No Longer Available]
3084624
Not Available
10
HANDLE RECOIL Substituted by 5431499-070
5431499
$26,24 Unit Price incl. VAT
11
SCREW
7512530
$10,49 Unit Price incl. VAT
12
WASHER FLAT
7555740
$3,14 Unit Price incl. VAT
13
MOUNT ENGINE
5410390
Not Available
14
SPACER (MTR.MT.)
5332778
Not Available
15
NUT FLANGE
7542522
$10,49 Unit Price incl. VAT
16
PLATE ENG.MT.
5222867
Not Available
17
WASHER LOCK(10)
7553101
$7,34 Unit Price incl. VAT
18
BOLT
7512539
$7,34 Unit Price incl. VAT
19
NUT FLEXLOC
7542411
$6,29 Unit Price incl. VAT
20
WASHER
7555721
$2,09 Unit Price incl. VAT
21
MOUNT
3110022
Not Available
22
WASHER(10) Substituted by 7555806
7555720
7555806
$1,56 Unit Price incl. VAT
23
NUT-3/8-24(NYLOK)-Y
7542439
$2,09 Unit Price incl. VAT
24
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
25
HOSE CLAMP RED
7080003
$2,09 Unit Price incl. VAT
26
FUEL LINE-1/4 ID (SVC) 600 CM [BULK]
8450040600
$136,49 Unit Price incl. VAT
27
CABLE THROTTLE W/OIL
7080552
Not Available
28
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
29
CABLE-TIE DIA12-50MM WTHR-RES.
7080138
$5,24 Unit Price incl. VAT
30
FILTER FUEL (10)
2530008
$10,49 Unit Price incl. VAT
31
VALVE FUEL SHUT-OFF
7052039
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
