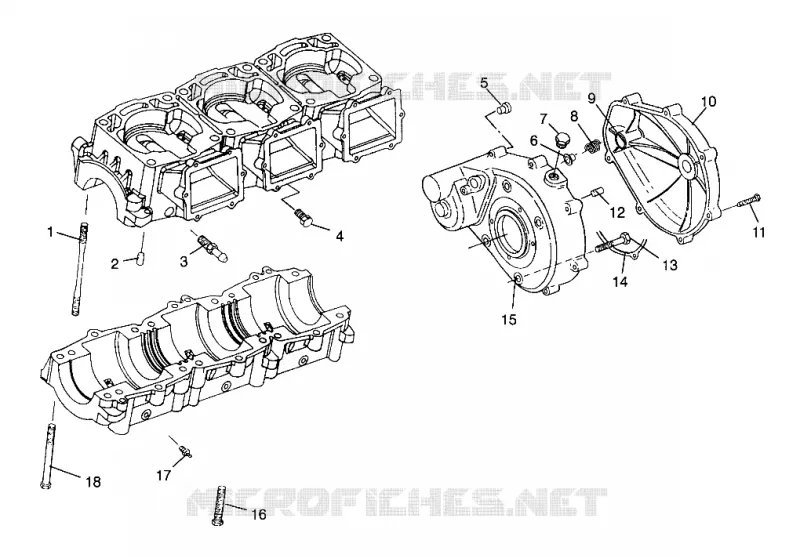

CRANKCASE SLTX B964590 AND INTL. SLTX I964590 (4935783578B014)

-

KIT CRANKCASE ASM TRIPLE Substituted by 2201213 (Incl. 1 2 4 16-18)

2200813

Not Available

1

STUD CYL.FLANGE Substituted by 5131567

5131090

Not Available

2

PIN DOWEL

7663001

$20,99 Unit Price incl. VAT

3

FITTING

7052135

Not Available

4

PLUG BRASS(10)

7051521

Not Available

5

BUSHING

3569805

$5,13 Unit Price incl. VAT

6

BUSHING PLASTIC

3574214

$8,07 Unit Price incl. VAT

7

PLUG PIPE(10)

7051526

$2,72 Unit Price incl. VAT

8

SPRING

7041457

Not Available

9

BUSHING

3569806

Not Available

10

COVER ASM IGN.HSG. (Incl. 9)

1201563

Not Available

10

COVER IGNITION HSG. Substituted by 1201563

5630530

Not Available

11

BOLT(10)

7516806

Not Available

12

PIN-DOWEL M4X10-SS

7663002

$9,44 Unit Price incl. VAT

13

BOLT(10)

7516723

Not Available

14

GASKET FLYWHEEL CVR. Substituted by 5811550

5811145

Not Available

15

HOUSING STARTER Substituted by 2201613 (Incl. 5 12)

1201564

Not Available

16

BOLT S.S (10)

7516725

Not Available

17

PLUG Substituted by 7052311

7051529

Not Available

18

BOLT S.S

7516913

Not Available

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
